Description

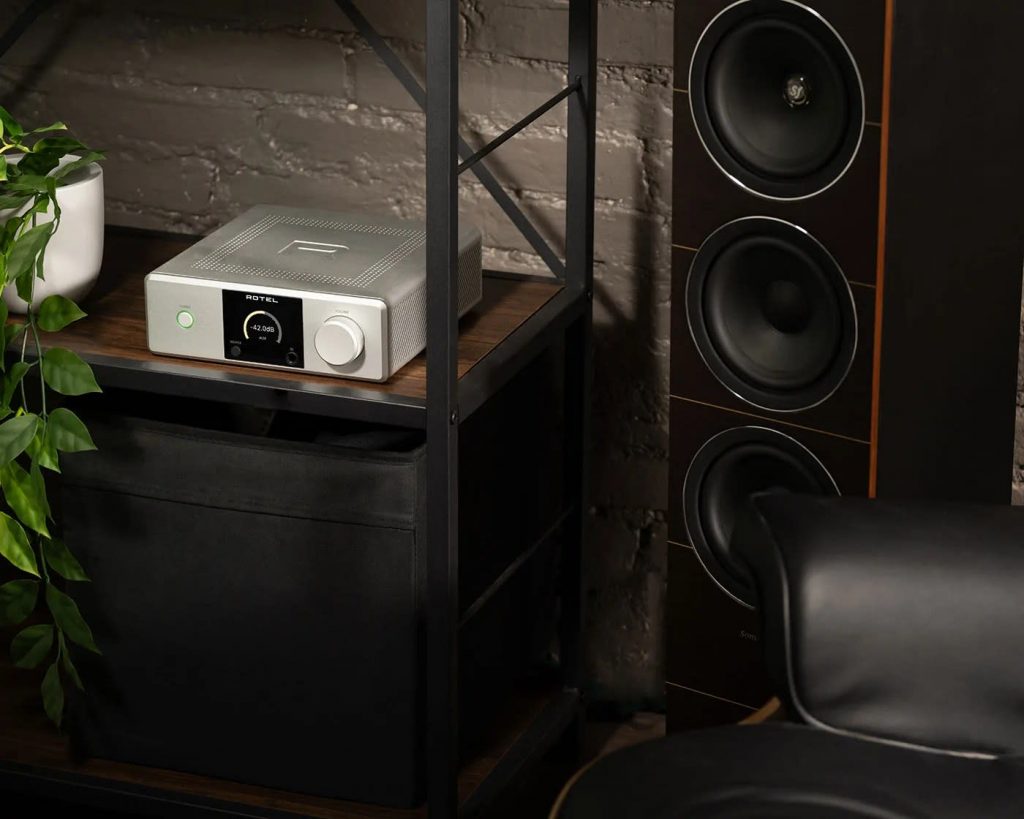

The Rotel DX-5 is the ultimate Personal Audio Integrated Amplifier blending cutting-edge technologies, versatile connectivity, packaged in a sleek, elegant, industrial design. Engineered for audiophiles, music lovers, and home entertainment enthusiasts, the DX-5 delivers 33 watts @ 4 ohms (25 watts @ 8 ohms) of classic Rotel Class AB amplification in an ultra size-efficient chassis.

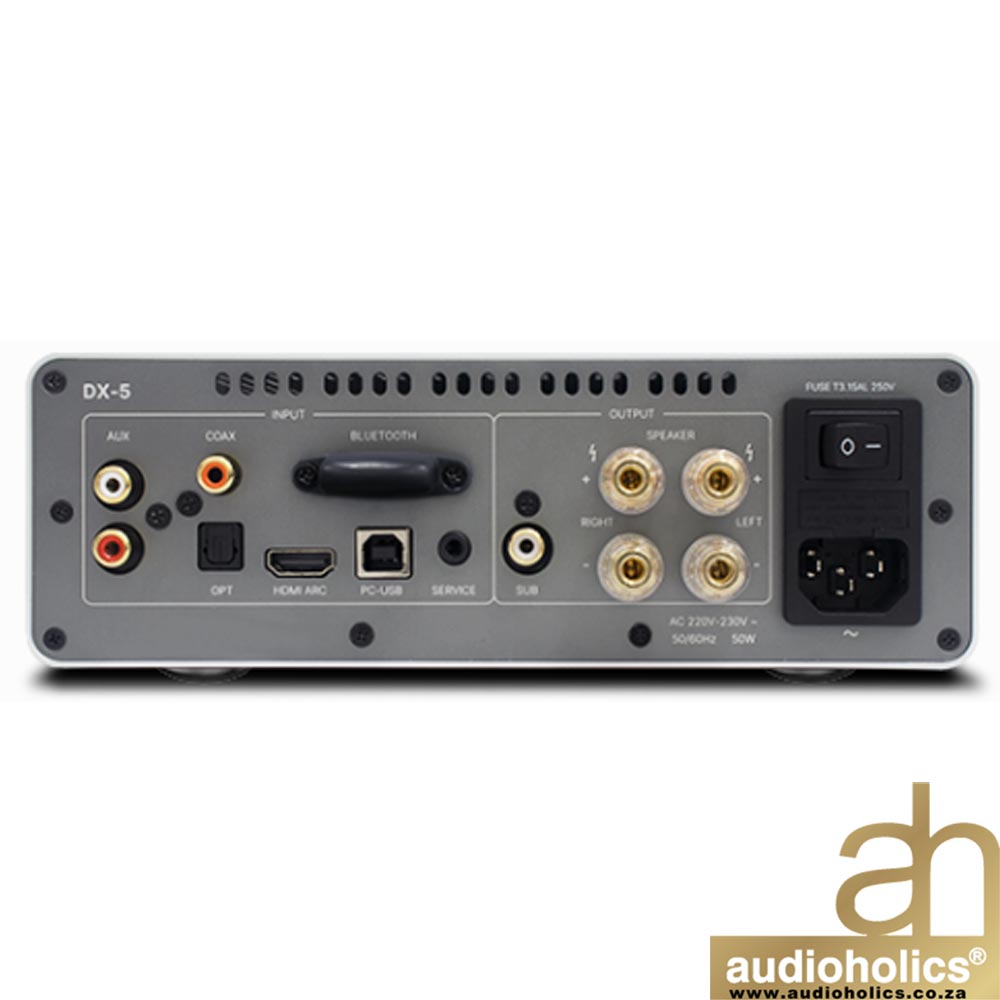

The premium ESS ES9039Q2M DAC renders the audio with precision and exceptional sound quality on an expansive sound stage. It supports PC-USB (32-bit/384kHz PCM, DSD 4x), Coaxial/Optical (24-bit/192kHz), aptX™ HD and AAC Wireless Bluetooth, legacy RCA analog, and HDMI ARC connectivity with a subwoofer output.
The DX-5 features a full-color TFT display, 1/4” (6.35mm) headphone jack, and includes an intuitive remote control perfect for music lovers and home entertainment enthusiasts.
SPECIFICATIONS
Dimensions (W × H × D)
215 x 76 x 251mm
8 1/2 x 3 x 10″
Front Panel Height
70 mm (2 3/4″)
Power Requirements
230 V, 50 Hz
Power Consumption
80 W
Standby Power Consumption
<0.5 W
Net Weight
4.1 kg (9.1 lbs.)
BTU
241 BTU/h
Power Output (FTC)
25 W / ch
Maximum Power Output (Non FTC)
33 W / ch, (1k Hz, 4 Ω)
Continuous Power Output (Non FTC)
25 W / ch, (1k Hz, 8 Ω)
Total Harmonic Distortion
< 0.03%
Frequency Response
10 Hz – 100k Hz (0 ± 0.19 dB)
Damping Factor (20 Hz – 20k Hz, 8 Ω)
140
Input Sensitivity / Impedance
680 mV / 100k Ω
Input Overload
4.2V
S/N Ratio (IHF “A” Weighted)
>100 dB
