Description

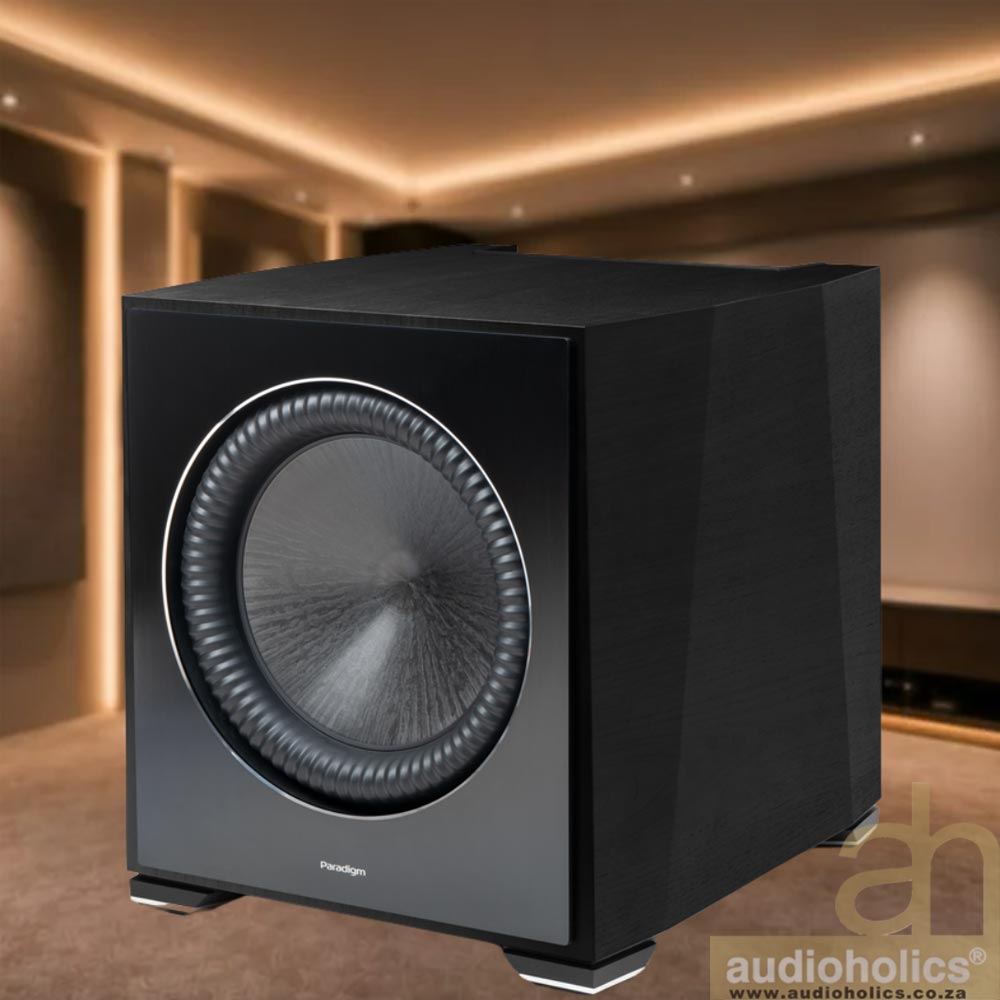

The all-new Paradigm XR 13 subwoofer is a master class in design and engineering refinement that challenges what is possible from a compact, sealed subwoofer design. The goal was to push the boundaries of performance while never losing sight of aesthetics by wrapping everything up into a suitable size that won’t ever feel out of place.
13” (330 mm) Ultra-high Excursion Driver with Trilinear Suspension System and Active Ridge Technology (ART™), sealed enclosure with Cascade-FusionTM Bracing and ADVANCED Shock-Mount™, built-in 2,200W RMS (4,400W Dynamic Peak) Class-D amplifier, App-controlled via smartphone and Anthem Room Correction (ARC®) Included.
Specifications
Design
13” (330 mm) Ultra-high Excursion Driver with Trilinear Suspension System and Active Ridge Technology (ART™), sealed enclosure with Cascade-Fusion™ Bracing and ADVANCED Shock-Mount™, built-in 2,200W RMS (4,400W Dynamic Peak) Class-D amplifier, App-controlled via smartphone and Anthem Room Correction (ARC®) Included.
Amplifier Features:
Auto-On / Off, Trigger On / Off
Frequency Response On-Axis
±3dB from 17 Hz to 140 Hz
Room Correction
ARC Genesis (microphone included)
Low Frequency Driver
13” (330 mm) Ultra-High-Excursion CARBON-X Unibody Bass Driver, with Trilinear Suspension System and Active Ridge Technology (ART™), 2” high-temperature voice coil
Effective Piston Area (SD)
93.7 sq in / 0.06 sq m
Effective Displacement
366.1 cu in/6 L
Low Frequency Response
12 Hz (DIN)
Amplifier Power
2,200W RMS (4,400W Dynamic Peak) Class-D amplifier, App-controlled via smartphone and Anthem Room Correction (ARC®) Included
Dimensions HxWxD
47.8cm x 43.8cm x 49.3cm
Weight
47.1 kg
Finished
Gloss: Piano Black & Midnight Cherry Satin: Walnut & Black Walnut
Unbalanced Inputs
Stereo or Mono (dual RCA jacks)/LFE RCA jack
Balanced Inputs
One Balanced XLR (LFE)
Speaker/High-Level Inputs
Left and right speaker level inputs
Input Grounding
Grounded
Polarity
0 or 180 degrees
Phase
Variable 0°-180°
