Description

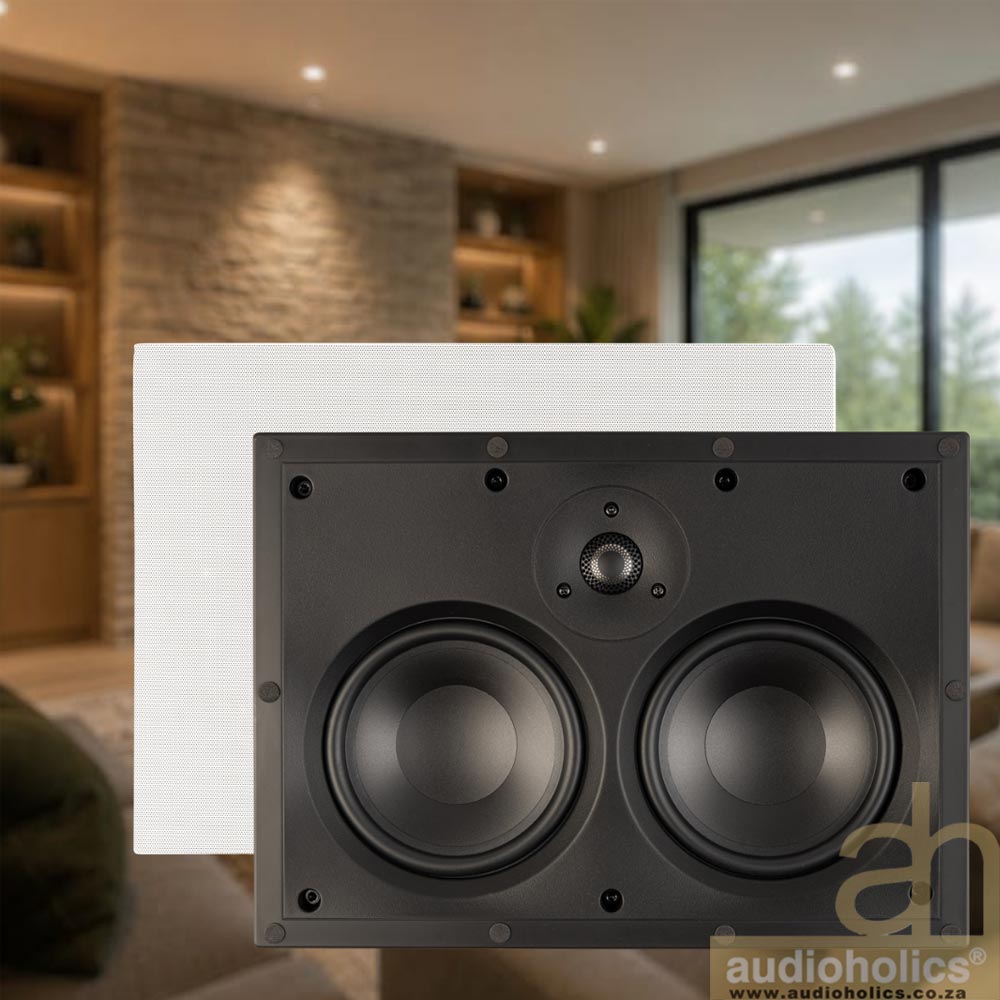

Paradigm CI Home H55-LCR v2 – Oversized computer optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass.
Easy-access binding posts:
High-quality binding posts feature a larger wire access hole and connect via banana plug, pin or bare wire.
Magnetically attached grilles:
neodymium magnets hold grilles firmly in place.
Bezel-Free, Micro-Perf Grilles allow you to mix and match CI Home, CI Pro and CI Elite Series for a seamless aesthetic from room-to-room!
Specifications
DESIGN
3-driver, 2-way in-wall left/center/right, ABS chassis & mounting clamps
CROSSOVER
2nd-order electro- acoustic at 2.5 kHz
FREQUENCY RESPONSE ON-AXIS
±2 dB from 75 Hz – 20 kHz
HIGH FREQUENCY DRIVER
3/4” (1.9cm) Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
MID/BASS FREQUENCY DRIVER
Two 5.5” (13.9cm) Mineral-filled Polypropylene Cone
LOW FREQUENCY EXTENSION
60 Hz
SENSITIVITY ROOM / ANECHOIC
89 dB / 85 dB
FREQUENCY RESPONSE 30° OFF-AXIS
±2 dB from 75 Hz – 15 kHz
SUITABLE AMPLIFIER POWER RANGE
15-100 W
MAXIMUM INPUT POWER
70 W
IMPEDANCE
Compatible with 8 ohms
WEIGHT
2.7 kg
FINISHES
White, paintable grille, black speaker
ACCESSORIES (INCLUDED)
PB-8X12N
CUT-OUT DIMENSIONS
20.9cm x 29.5cm
MINIMUM MOUNTING DEPTH
(DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2″ DRYWALL, OR SIMILAR MATERIAL.)
7cm
DIMENSIONS HXWXD (INCLUDES GRILLE).
32.1cm x 23.5cm x 8.8cm
