Description

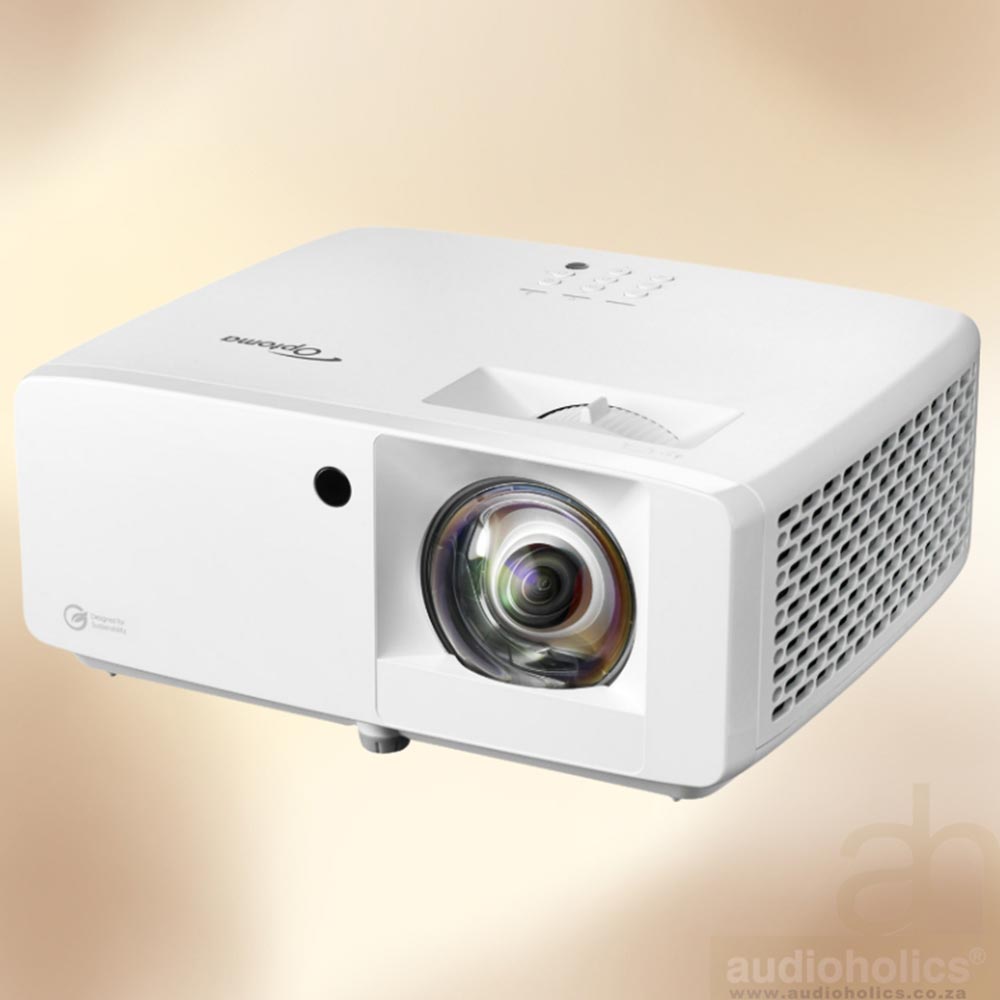

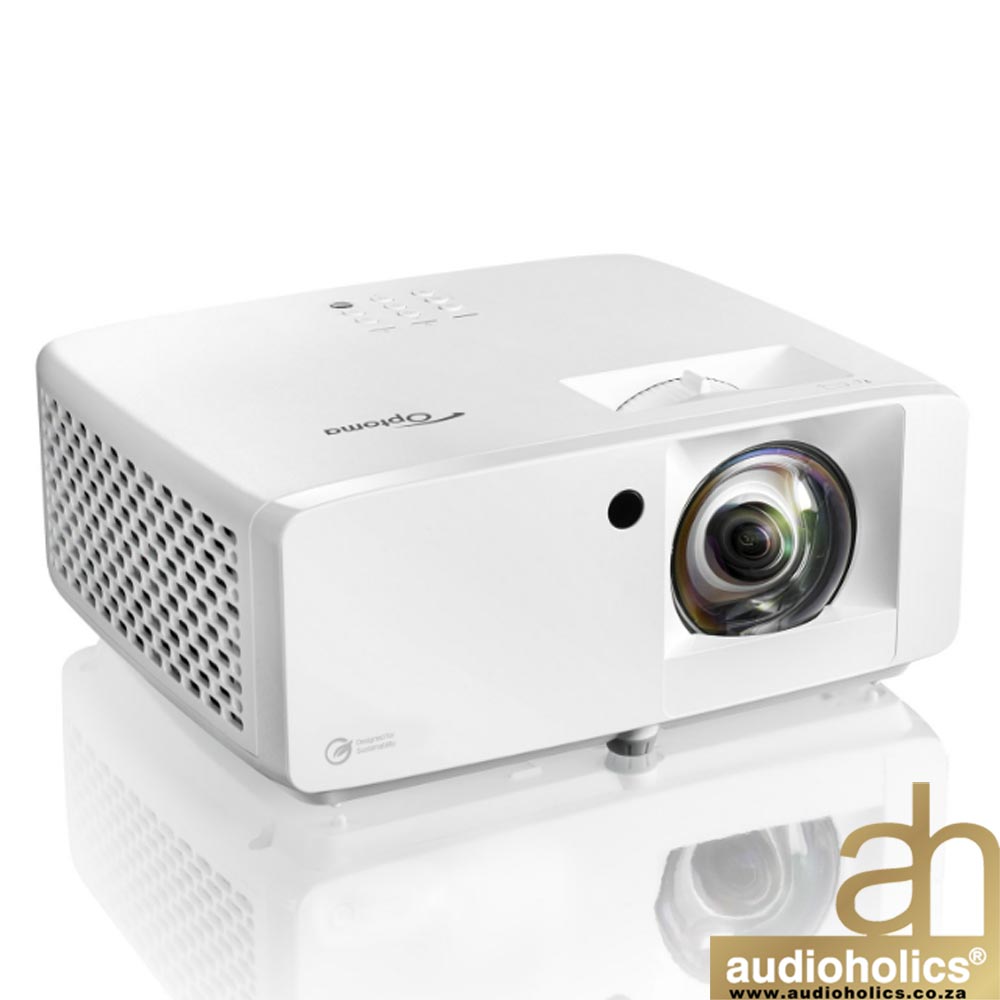

Optoma ZK430ST – Eco-friendly compact high brightness 4K UHD laser projector
The Optoma ZK430ST is one of Optoma’s most compact and hassle-free 4K UHD DuraCore laser projectors to date. Designed for maintenance-free continuous operation, this 3700-lumen projector delivers powerful image performance with flexible installation features and extensive connectivity options in a sleek, compact form factor, up to 34% smaller than previous Optoma models.
Geared for conference rooms, boardrooms, and other corporate spaces, the ZK430ST has a short throw lens meaning it can be positioned less than half a metre from any wall. For ultimate convenience it comes with RJ45 and RS232 connection for monitoring and controlling and a built-in speaker.
Designed for the future
We are committed to reducing the overall environmental footprint of our products so we can do right by the planet.
Designing innovative products with sustainability in mind considers every phase of a product’s lifecycle, from design, manufacturing, packaging, and logistics, to usage.
Energy-saving technology
Reduce power consumption by up to 45% compared to Optoma’s lamp-based solutions.
Reduced carbon footprint
Compact product and packaging size allows 2x more products carried per container, resulting in more efficient logistics to help further reduce carbon emissions.
Eco-friendly packaging
Packaging contains up to 97% recyclable materials.
Sustainable materials
Chassis design made with up to 50% PCR (Post-Consumer Recycled) plastics.
True 4K UHD resolution
Ultra HD 4K resolution delivers sharper, life-like images and richer colours – allowing you to sit closer to the screen and enjoy a more immersive experience.
Our DLP projectors provide CTA (Consumer Technology Association) approved True 4K UHD resolution, capable of projecting 8.3 million on screen pixels. That’s four times more detail than Full HD and twice as many from competing technology, which only delivers 4.1 million pixels.
Lights on viewing
This versatile projector combines high brightness and vivid colours for vibrant, true-to-life visuals in any environment*. Make a lasting impression with bigger and bolder presentations any time of day.
Laser technology
Optoma laser projectors use high-quality lasers to create the projected image. In many situations the perceived brightness from laser illumination projectors can be twice that of an equivalent lamp-based model. They also deliver increased efficiency to maintain consistent brightness, superior colour performance, instant on/off and an extraordinary life span of up to 30,000 hours.
DuraCore
Industry leading lifetime is achieved using Optoma’s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.
Short Throw
With a short throw lens, you can project an impressive 100” image from just over a metre away. This allows you to place the projector closer to the wall, reducing shadows so you can present with ease.
HDR and HLG compatible
Capable of receiving and displaying both HDR10 and Hybrid Log Gamma (HLG) HDR content. This Optoma projector allows you to see far more detail and texture. Objects look more solid and lifelike and the extra detail creates a greater sense of depth.
Amazing colour
Show off presentation and classroom content with stunning colours in any environment. Optoma projectors provide reliable colour performance suitable for any content and environment. From accurate sRGB colours for lifelike images to vibrant punchy presentations. We have a display mode to specific meet your needs. Perfect for a range of graphic and video presentations.
Optoma Management Suite (OMS Local)™ encompasses all Optoma display solutions* in a single location to serve as an interface for simultaneously managing, monitoring and diagnosing issues across them all. Whether it’s multiple devices in a school, exhibition hall or office space, OMS local is perfect tool allowing you to stay in control.
Golf Sim Picture Mode
Golf sim picture mode delivers true-to-life greens and blues and impressive detailing even with the lights on. Carefully created to provide optimum colour grading for golf simulation setups.
Four corner correction
Four corner correction enables the keystone of the projector to be adjusted in both the vertical and horizontal plane, so you can individually warp each corner of the projected image to make it perfectly square. Ideal for uneven walls or in spaces where the projector placement is awkward or limited and needs to be installed at an angle.
360 projection*
With 360° projection,* images can be displayed in any orientation, giving you the freedom and versatility to install this projector in the desired location.
Full 3D
Optoma projectors can display true 3D content from almost any 3D source, including 3D compatible graphics cards, 3D broadcasting and the latest generation 3d media servers.
24/7 operation
Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions. 24/7 Operation – standard lamp warranty applies. Projector warranty is based on standard business usage hours. For optimum performance Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolonging the life of your lamp.
Auto power off
There may be instances when the projector is left running when not in use. To help save energy, the “auto power off” feature automatically turns off the projector after a set period of time if it is not being used.
Integrated speaker
Complete your home entertainment experience with the convenience of a powerful built-in speaker for exceptional sound quality and an easy set up without the need for costly external speakers.
USB-Power
Use the USB-A port to power external devices (5V/1.5A)
SPECIFICATIONS
Display/image
Display technology
DLP®
Resolution
UHD (3840×2160)
Brightness
3,700 lumens
Contrast ratio
300,000:1
Native aspect ratio
16:9
Aspect ratio – compatible
4:3,16:9,16:10
Keystone correction – horizontal
+/-15°
Keystone correction – vertical
+/-15°
Displayable colours (millions)
1073.4
Horizontal scan rate
15 ~ 140Khz
Vertical scan rate
24 ~ 240Hz
Uniformity
75%
Screen size
0.91m ~ 7.62m (36″ ~ 300″) diagonal
Lamp info
Light source type
Laser
LASER life
30,000 hours
Optical
Throw ratio
0.496:1
Projection distance (m)
0.4m – 3.3m
Zoom type
Fixed
Focal length (mm)
7.51
Native offset
116%

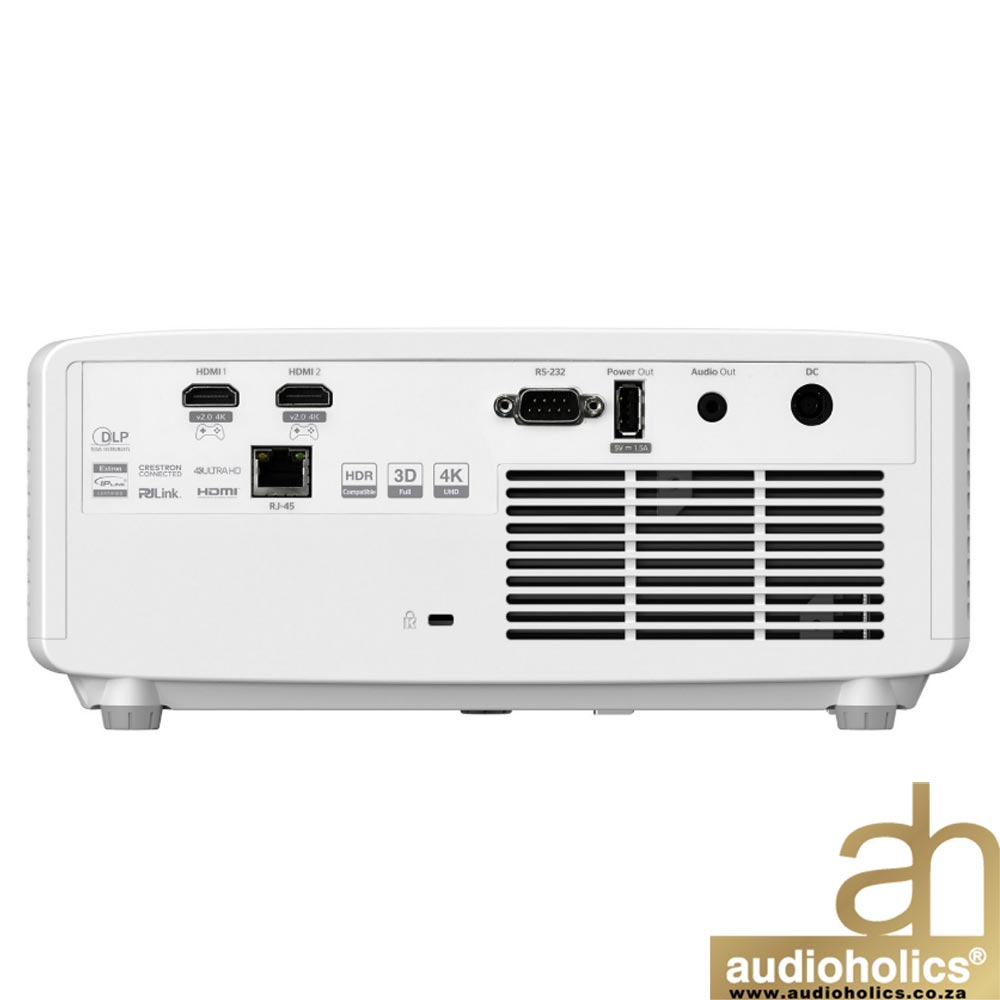

Connectivity
Connections
Inputs 2 x HDMI 2.0
Outputs 1 x Audio 3.5mm, 1 x USB-A power 1.5A
Control 1 x RS232, 1 x RJ45
General
Noise level (min)
28dB
Noise level (max)
35dB
PC compatibility
UHD, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac
2D compatibility
NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)
3D compatibility
Yes (DLP 3D; PC frame sequential 120Hz 3D, Blu-ray DVD 3D)
3D
Full 3D
Security
Security bar, Kensington Lock, Password protected interface
IP rating
IP6X
OSD / display languages
25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese
24/7 operation
Yes
360° operation
Yes
Operating conditions
0°C ~ 40°C, Max. Humidity 80%, Max. Altitude 2,500ft
Remote control
Card style
Speaker count
1
Watts per speaker
15W
In the box
AC power cord
Remote control with 1x CR2025 Battery
Basic user manual
Optional wireless models
UHDCast Pro
Power
Power supply
External power supply, 100V ~ 240V, 50-60Hz
Power consumption (standby)
<0.5W
Power consumption (min)
126W
Power consumption (max)
185W
Weight and dimensions
Dimensions (W x D x H) mm
274 x 216 x 114
Gross weight
4.2 kg
Net weight
3 kg
