Description
The Magnetar UDP900 MKII sits at the very top of Magnetar’s lineup, engineered for the most demanding audiophiles and cinephiles who refuse to settle for anything less than true reference performance. Every aspect—its DACs, build quality, processing engine, and analog output stage—has been designed with one goal: to deliver the most faithful, lifelike playback ever achieved from physical or digital media.
KEY FEATURES:
- Roon Ready in certification
- Fully Redesigned Audio utilizing dual ESS9038PRO DAC’s
- TMDS retiming on HDMI audio port
- Enhanced USB 3.0 system with isolated power
- XMOS supports PCM768/512 DSD
- Upgraded copper wiring and Amphenol/JST connectors
- Control 4 Support
- Crestron Support
- Wake-up on Lan
Advanced Image/Audio Processing Technology
High-quality copper-core wires are used throughout the device, the in-machine PCB connectors have been upgraded to JST and Amphenol brands, enhancing the stability and reliability of the connections.
Exceptional Audio – Visual Experience
The ESS9038PRO D/A decoder offers stereo and multi-channel outputs. With XMOS USB Audio input capable of handling PCM768 and DSD512, UDP900 MKII offers premium audio output. The TMDS retiming function on the HDMI AUDIO port also refines audio quality.
Versatile Compatibility
Adding a USB3.0 HUB chip and redesign the USB3.0 power supply to improve the compatibility and stability of the USB3.0 port, so as to better adapt to USB flash drives and hard drives. Also enhances the stability of data transmission and increases the transmission speed, thus achieving better sound and picture effects.
USB Audio
Upgrade USB AUDIO to PCM768 and DSD512, greatly improve the audio data transmission and processing capabilities, and provide higher-quality audio output.
Roon Ready
Roon Ready is a partner program that lets UDP900 MKII auto-connect to Roon without configuration for bit-perfect audio. Working with Roon’s multi-platform music platform, UDP900 MKII delivers powerful, flexible networked audio with easy setup and top reliability for great listening experiences.
SPECIFICATIONS
Disc formats
UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD，SACD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE

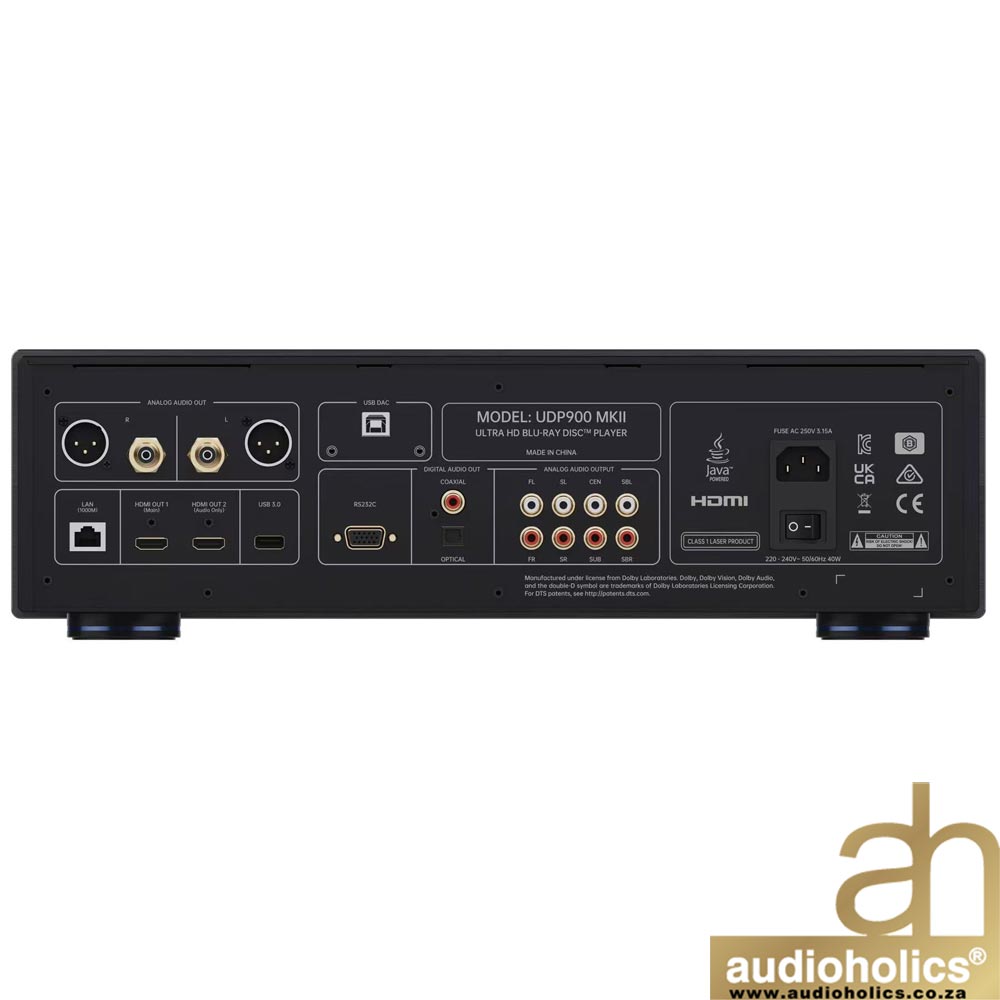

Outputs
Analog Audio Output: 7.1 channel RCA, 2 channel RCA and Balanced XLR
Digital Audio Output: Optical, Coaxial, HDMI
HDMI audio: up to 7.1 channel /192kHz PCM, up to 5.1 channel DSD, Bitstream
HDMI video: UHD 23.976/25/30/50/59.94/60hz, 1080 I/P, 720P, 576I/P, 480I/P, source direct.
Analog audio characteristics(7.1 Channel)
Frequency Range: 20Hz ~ 50kHz (±0.01dB)
Signal – to – noise ratio: ≥120dB
Total Harmonic Distortion + Noise: ≤ 0.0005%
Output Level: ≤3Vrms
Dynamic Range: ≥120dB
Channel Separation: ≥110dB
General specification
Power supply: AC 110-120V ~ 50/60Hz / AC 220-240V ~ 50/60Hz
Power consumption: <40W, Standby<0.5W
Dimensions: 445 x 321 x 133 mm
Weight: 15.4kg
Operating Temperature: 5°C~ 35°C (41°F ~ 95°F)
Operating Humidity: 15% ~ 75%
