Description

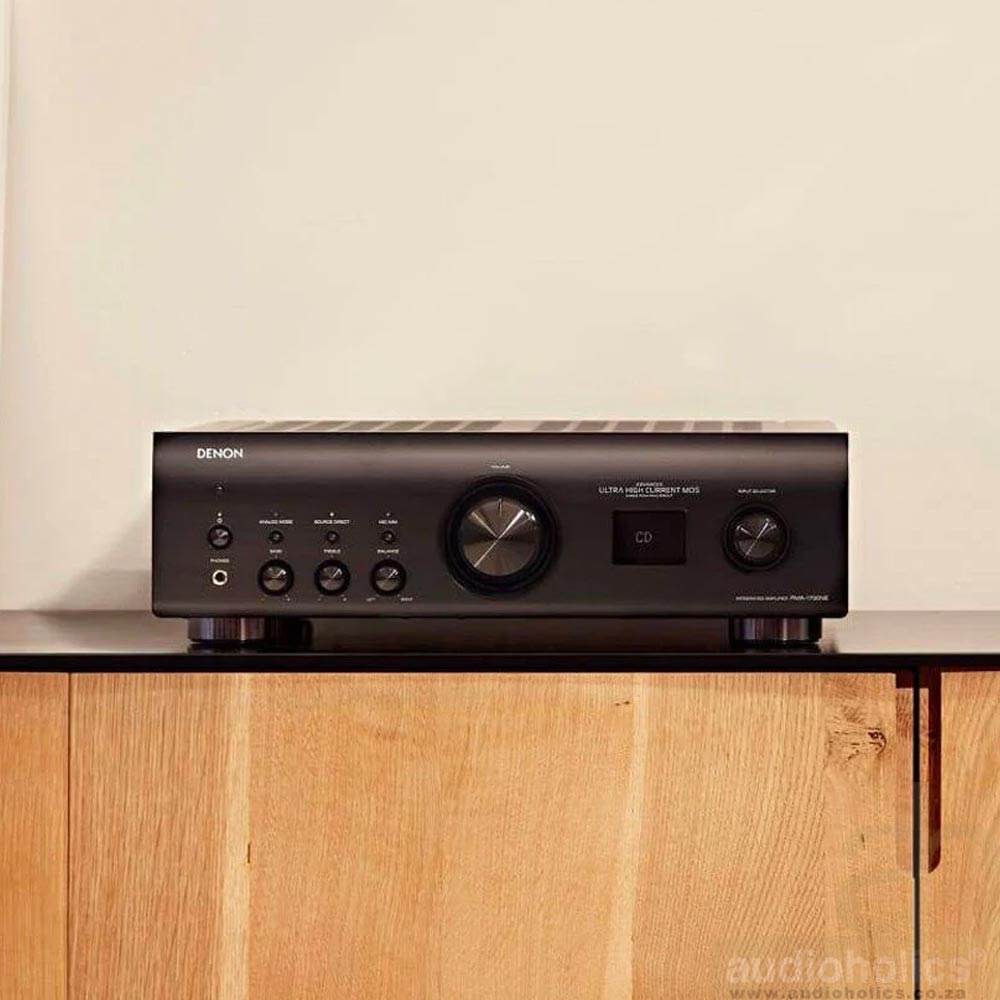

Featuring advanced ultra-high current single push-pull circuit power with Advanced AL32 Processing Plus, the Denon PMA-1700NE integrated amplifier delivers music that’s faithful to the original recording.
FEATURES:
- High-power 140W integrated amplifier
- Advanced AL32 Processing Plus
- USB-DAC supporting 11.2- MHz DSD and 384-kHz/32-bit PCM
- MM and MC phono equalizer
- High-precision electrical controls
- Optical and coaxial digital inputs
- External pre-amp input terminals
- Six-block chassis configuration and direct mechanical ground construction
- Build integrity with thoughtfully selected components
ADVANCED AL32 PROCESSING PLUS
Advanced AL32 Processing Plus supports digital audio sources up to highresolution of 384-kHz/32-bit. The algorithms restore information that was lost during the digital recording to ensure detailed playback.
USB-DAC
PMA-1700NE provides USB-DAC function that supports high resolution audio signals up to 11.2-MHz DSD and 384-kHz/32-bit PCM. These digital signals with suppressed jitter will get passed on to the high quality DAC for an optimal D/A conversion with highest precision.
MM AND MC PHONO EQUALIZER
The PMA-1700NE includes a phono equalizer that supports input from both MM and MC cartridges. The simple, straightforward design significantly improves sound quality.
HIGH-PRECISION ELECTRICAL CONTROLS
The PMA-1700NE embraces electrical volume, balance, and tone controls while preserving the analogue feeling of operation. The unique mechanism offers smooth, linear control. A Source Direct function passes by all tone control for purest audio.
SPECIFICATIONS
Rated Output Power
70W + 70W (8ohm,20Hz-20kHz,THD0.07%)
140W + 140W (4ohm, 1kHz, THD0.7%)
Input Sensitivity: CD/LINE/RECORDER
125 mV / 19 kohm
Total Harmonic distortion
0.01 % (Rated output: –3 dB), 8 ohm/ohms, 1 kHz
Input Sensitivity: Phono input
MM: 2.5 mV / 47 kohm
MC: 200 μV / 100 ohm
Input Sensitivity: Power Amp input
0.85V / 47kohm (EXT. PRE)
Signal to Noise Ratio
PHONO (MM): (89dB)
PHONO (MC): (74dB)
CD: (107dB)
USB B (USB DAC)
1 (Rear)
PCM Sample Rate
~384kHz/32bit
DSD Audio Streaming (DoP)
~11.2MHz
