Description

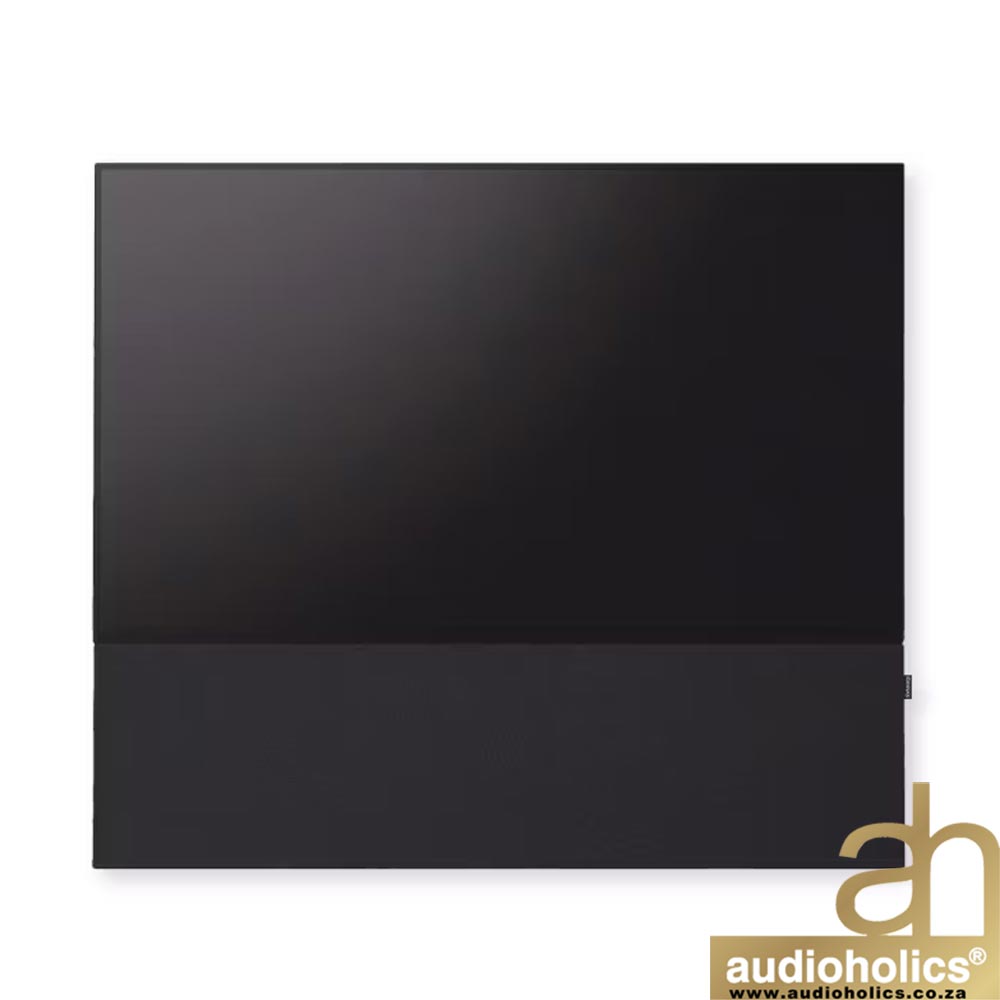

Canvas 65″ – Premium Soundbar System with Integrated TV Mount and customizable front panel
This product is ideal if you’re looking for a premium, furniture-grade soundbar that blends beautifully with your TV and living space. It’s especially popular among design-conscious users who want both aesthetic appeal and audiophile-grade sound.
High End speaker construction
CANVAS is designed and engineered like a true High End HiFi speaker, featuring High End SB Acoustics die-cast aluminium chassis, next-gen paper cone bass/midrange drivers, high precision stiff paper cone long excursion passive radiators and SB-CANVAS designed die-cast aluminium waveguide silk dome tweeters that integrates into the front grilles, for a zero diffraction design. The cabinet is rock solid, built from satin black painted MDF, with extensive CANVAS invented, BridgeBrace(tm)(patent pending) structural bracing system. It features a 4 channel Burr-Brown DAC and HiFi amplifier, and advanced linear phase Analog Devices DSP crossovers.
Room Correction
Traditionally, to get HiFi bass, speakers would have to be placed freestanding at least 30-60 cm (1-2 feet) from the back wall. CANVAS is typically placed straight on the floor up against a wall, or on a wall. This drastically amplifies the bass, but with a very boomy sound as a result. By integrating a Room Correction system through our CANVAS iOS and Android apps, we can linearize the frequency response, and now the bass gains are suddenly a big advantage, with increased output compared to free standing speakers. And since the bass gain is not dependent on the time domain, unlike room modes, DSP-corrected boundary gains sound great. iPhone’s microphone can be used to do these measurements to run this correction – optionally, we have our Zen smart reference microphone, which can be used with both Android and iPhone, for even better results.
BACCH 3D
To get real stereo imaging from traditional HiFi speakers, they will have to be placed freestanding at least 30-60 cm (1-2 feet) from the backwall, and at least 2 meters (6 feet) apart. This is needed because of a physical phenomenon called cross-talk. Placing the speakers closer to each other, and the sound waves intended, say for instance, for your right ear hits both of your ears. This prevents your ears and brain from hearing in 3D.

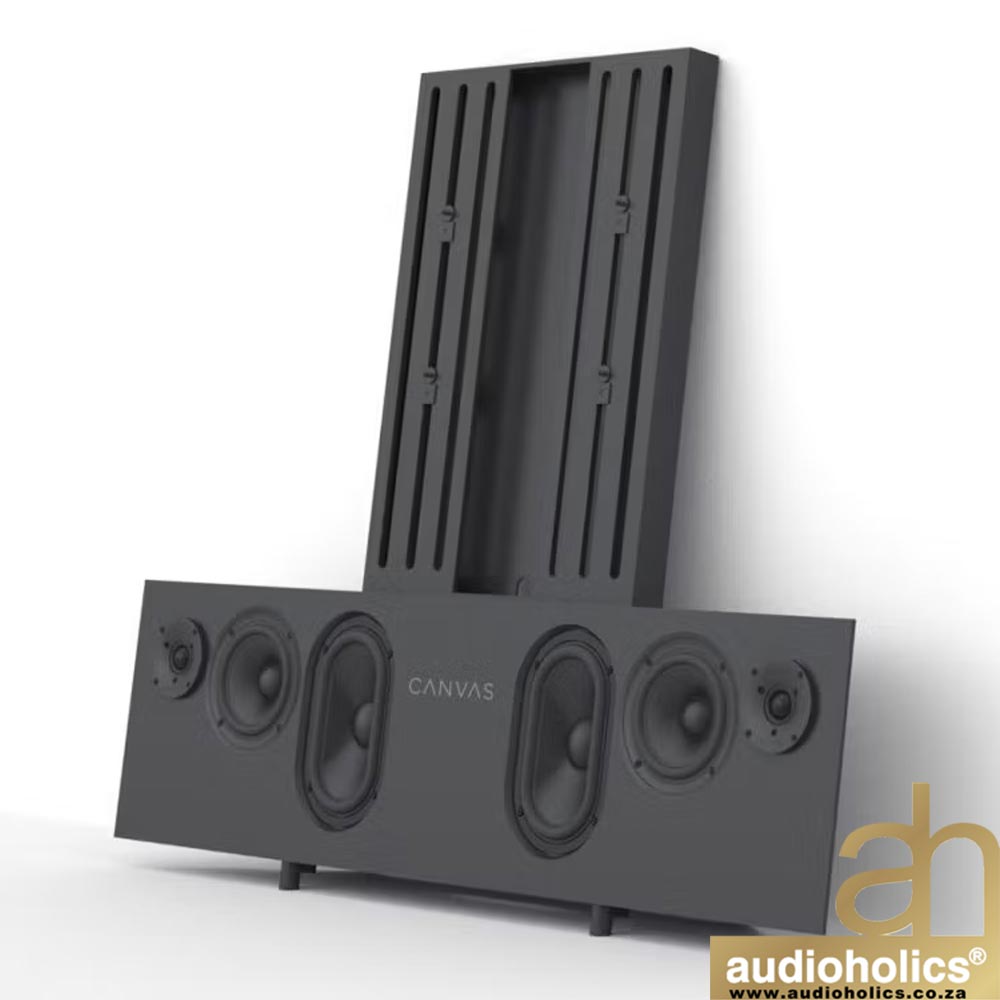

Universal TV Mount
The universal TV Mount allows for mounting and aligning the vast majority of new TV’s on the market, all brands, and in the most popular sizes, 55″, 65″, 75″, 77″, 83″ and 85″. This CANVAS invented solution (patent pending), with matching size front grills, ensures a flush, zero gab alignment of CANVAS speaker and your TV, fusing them together as one seamless unit.
Connectivity
Connecting CANVAS to your WiFi is super easy. For iPhone, just go to WiFi settings, and it will ask if you want to join CANVAS to your network. For Android devices, the Google Home app guides you through easy setup. For streaming, CANVAS features a next-gen wireless module, with Apple AirPlay 2 and Google Cast, both being multi-room compatible with all other brands of speakers. Furthermore it features Roon, Tidal and Spotify. It also has Toslink digital optical input to connect for instance a SONOS Connect box, and analog with a great Burr-Brown ADC, so that turntables can be connected, to experience your records in unprecedented spacial fidelity.
CANVAS features HDMI eARC, which means it will integrate with your TV seamlessly. You won’t have to think about it being there; it will just work seamlessly with your TV remote. Even an Apple TV remote can control the volume in CANVAS directly. Furthermore, HDMI eARC ensures no annoying lip-sync issues, where picture and sound is out of sync in movies, shows and concerts. Android, Google Home and Chromecast are trademarks of Google LLC.

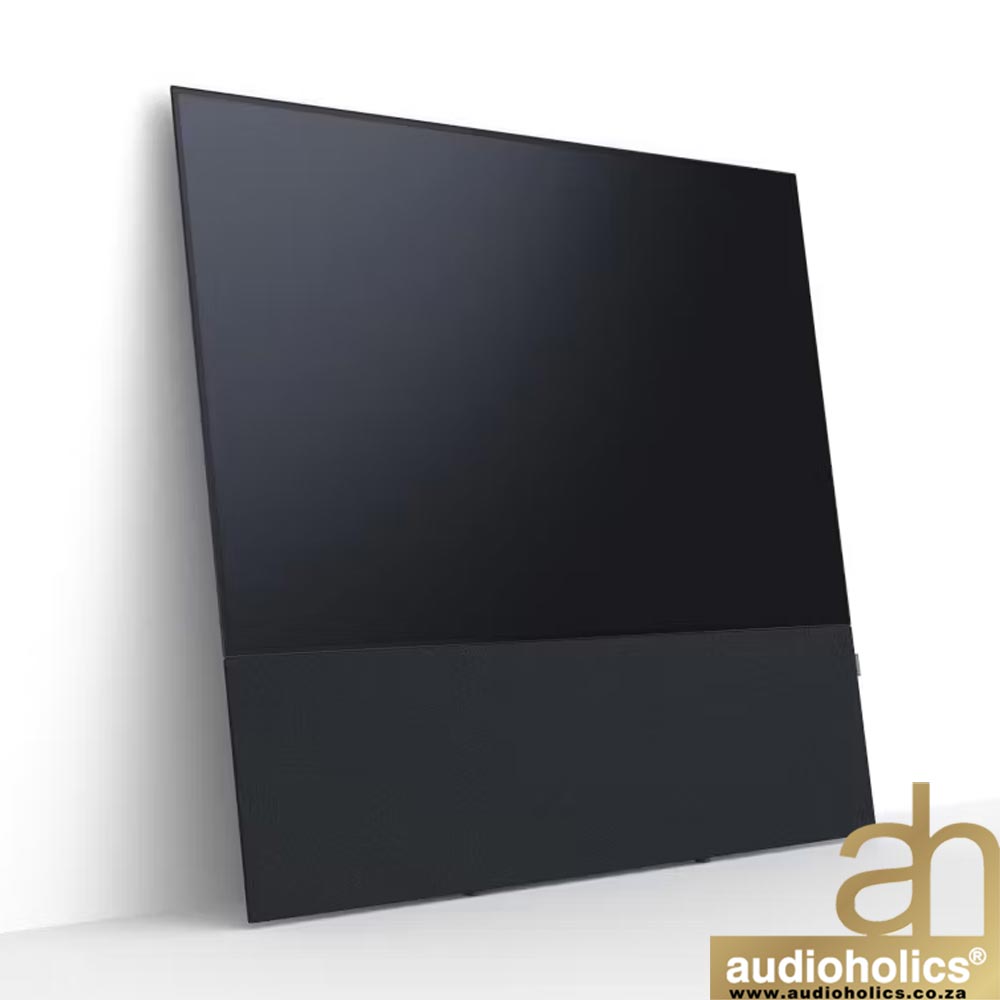

Hybrid Foot / Wall Mount
All CANVAS speakers comes with a Hybrid Foot / Wall Mount. This CANVAS invented solution (patent pending) allows you to decide how you want to use your CANVAS, even after your purchase. You may not be sure if you want it on the floor or wall, or later change your mind. With this solution you’re covered in all usage situations, without having to go out and buy new accessories to shine up your living room.
Future-proof
CANVAS is future-proof, with automatic over-the-air software updates, in case we come up with an even better soundtuning someday, or new streaming formats arrive. Even the electronic hardware is designed to be upgradable, in case someday in the future new streaming or wired standards arrive, which is not software upgradable.
The particularly service-friendly modular structure also makes it easy to replace components, both within the extended 3-year warranty and after the warranty has expired. This ensures that the product can be easily serviced in your home.
KEY FEATURES:
- The cabinet is rock solid, built from satin black painted MDF
- Extensive CANVAS invented
- BridgeBrace (patent pending) structural bracing system
- A 4 channel Burr-Brown DAC and HI-Fi amplifier
- Advanced linear phase Analog Devices DSP crossovers
- CANVAS speaker including 65″ front grill that matches the width of your 65″ TV – choose finish below.
- Foot, wall mount, TV mount, and all accessories, screws, cables etc is included, just add your TV.
SPECIFICATIONS
DIMENSIONS
Wall mounted, including wall mount and front (W x H x D):
65″: 144,5 x 36,9 x 12,6 cm / 57.0 x 14.5 x 5.0 in
Floor standing, incl foot and front (W x H x D):
65″: 144,5 x 37,3 x 19,8 cm / 57.0 x 14.7 x 7.8 in
CANVAS with TV (W x H):
65″: ~144,5 x ~120,4 cm / ~57.0 x ~47.4 in
TV COMPATIBILITY
Universal TV mount, for all brands (Samsung, Sony, Panasonic, LG etc) in 55”, 65″, 75″, 77″, 83″ and 85″ sizes or choose CANVAS SOLO for all other TV sizes which can hang by itself under the TV.
STAND / WALL MOUNT
Hybrid, works on both floor and wall
FRONT GRILLES
Interchangeable magnetically attached in 12 finish options, including Kvadrat fabrics and real wood, in 55”, 65″, 75″, 77″, 83″ and 85″ sizes
CABINET
Rock solid 24 liters, MDF with CANVAS BridgeBrace™ technology
BASS / MIDRANGES
2 x High End SB Acoustics paper cone, long excursion 6,5” die-cast aluminium chassis
TWEETERS
2 x High End SB Acoustics 29mm silk dome with CANVAS designed waveguide die-cast aluminium frontplate
PASSIVE RADIATORS
2 x High End SB Acoustics low-loss high precision, long excursion
CROSSOVERS
DSP tuned in a Klippel system for linear frequency response and perfect phase responce, custom high order
AMPLIFIERS
4 channel Class D HiFi amps with a total of 250 watts, but with greater sound pressure than traditional soundbars with 1000 watts. Many customers have wondered why CANVAS HiFi plays deeper and more powerfully than traditional soundbars, which indicate they have a much higher power output amplifier. A large number of factors comes into play here, but an essential factor is that CANVAS has a whopping 24 liters of effective acoustic volume, in combination with 2 x 6.5″ bass/midrange drivers and 2 x 5×8″ slave bass drivers, which gives 592 cm2 radiating surface area, which corresponds to a 12″ bass driver. CANVAS HiFi is therefore highly efficient, and plays louder and with more bass than traditional soundbars
DAC’s
Burr-Brown 24 Bit / 192 kHz
FREQENCY RESPONSE
30 Hz – 20.000 Hz
DSP
Powerful Analog Devices 300 MIPS quad-core with BACCH 3D filter
ROOM CORRECTION
Through iOS app, uses iPhones built in microphone or optional Zen Mic
CONNECTIVITY
HDMI eARC, Toslink, Analog, Apple AirPlay 2 (multi-room), Google Cast (multi-room), Roon, Tidal, Spotify Connect, DLNA. In addition, automatically activated input via control unit that can be hidden in CANVAS for connection with existing control systems such as Sonos app, Bluetooth, B&O App, Bluesound, HEOS, Bose App, Samsung App or other control units. Contact our support for help with configuration if you have special wishes.
UPDATES
Software automatic OTA. Hardware electronics upgradable
