Description

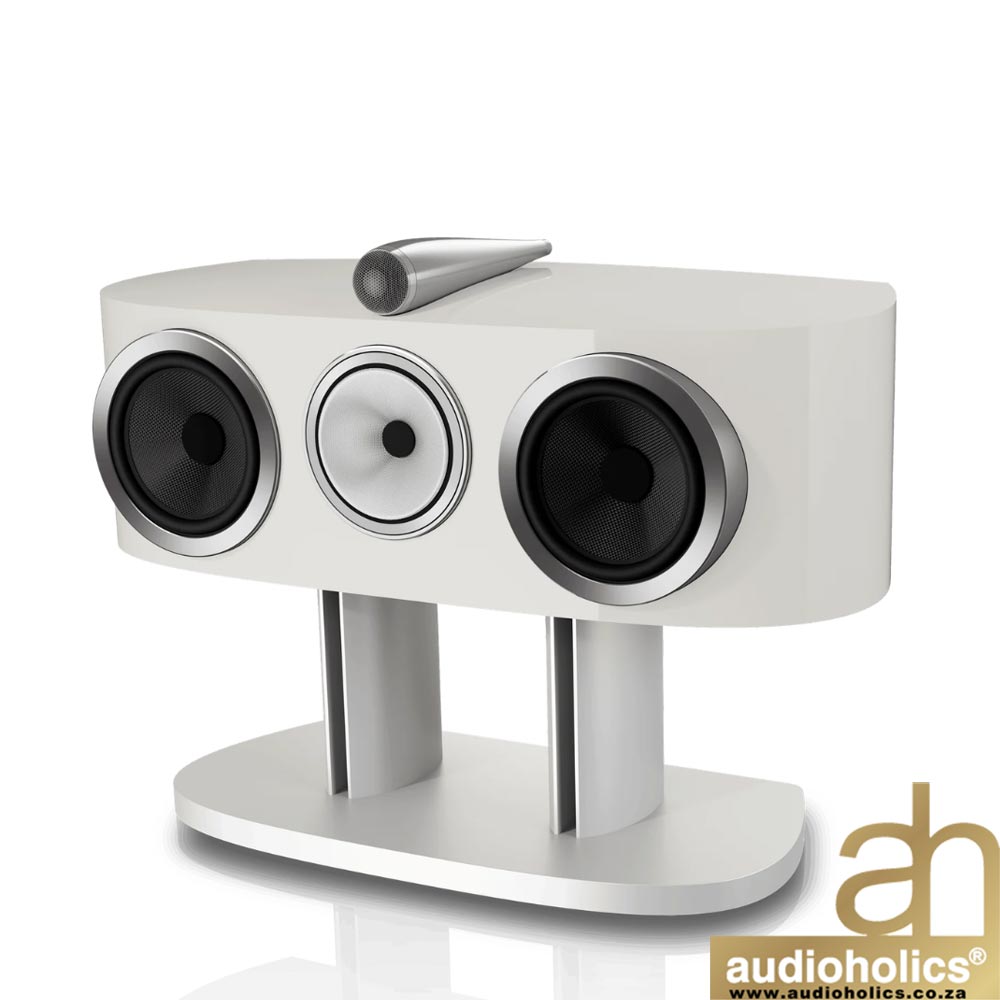

The Bowers & Wilkins HTM81 D5 delivers our pinnacle centre channel performance and can be paired with either the 801 D5 or the 802 D5 for truly powerful and immersive home theatre experiences.
Engineered with the same advanced technologies as the rest of the flagship 800 Series Diamond range, it features our Diamond dome tweeter, Solid Body Tweeter-on-Top, a decoupled Continuum Cone midrange drive unit and twin Aerofoil bass cones. Introduce HTM81 D5 to your home setup and experience your movies with even more depth, clarity and life. Available in Stealth Black, Warm White and Dark Walnut with an optional matching floorstand for seamless installation.
SPECIFICATIONS
Technical features
Diamond dome tweeter
Solid body Tweeter-on-Top
Continuum™ cone FST midrange
Anti-Resonance plug
Biomimetic Suspension
Matrix™
Aerofoil™ base cones
Flowport™
Description
3-way vented-box system
Drive units
1x ø25mm (1in) Diamond dome high-frequency
1x ø150mm (6in) Continuum cone FST midrange
2x ø200mm (8in) Aerofoil™ bass
Frequency range
-6dB 20Hz to 35kHz
Frequency response
28Hz to 28kHz (+/-3dB)
Sensitivity
90dB
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 90Hz – 20kHz
<0.3% 100Hz – 8kHz
Nominal impedance
8Ω (minimum 3.0Ω)
Recommended amplifier power
50W – 1000W into 8Ω on unclipped programme
Max recommended cable impedance
0.1Ω
Dimensions
Height: 334mm (13.2 in) including tweeter
Width: 846mm (33.3 in) cabinet only
Depth: 363mm (14.3in) including grille and terminals
Net weight
33.4kg (73.5lbs)
