Description

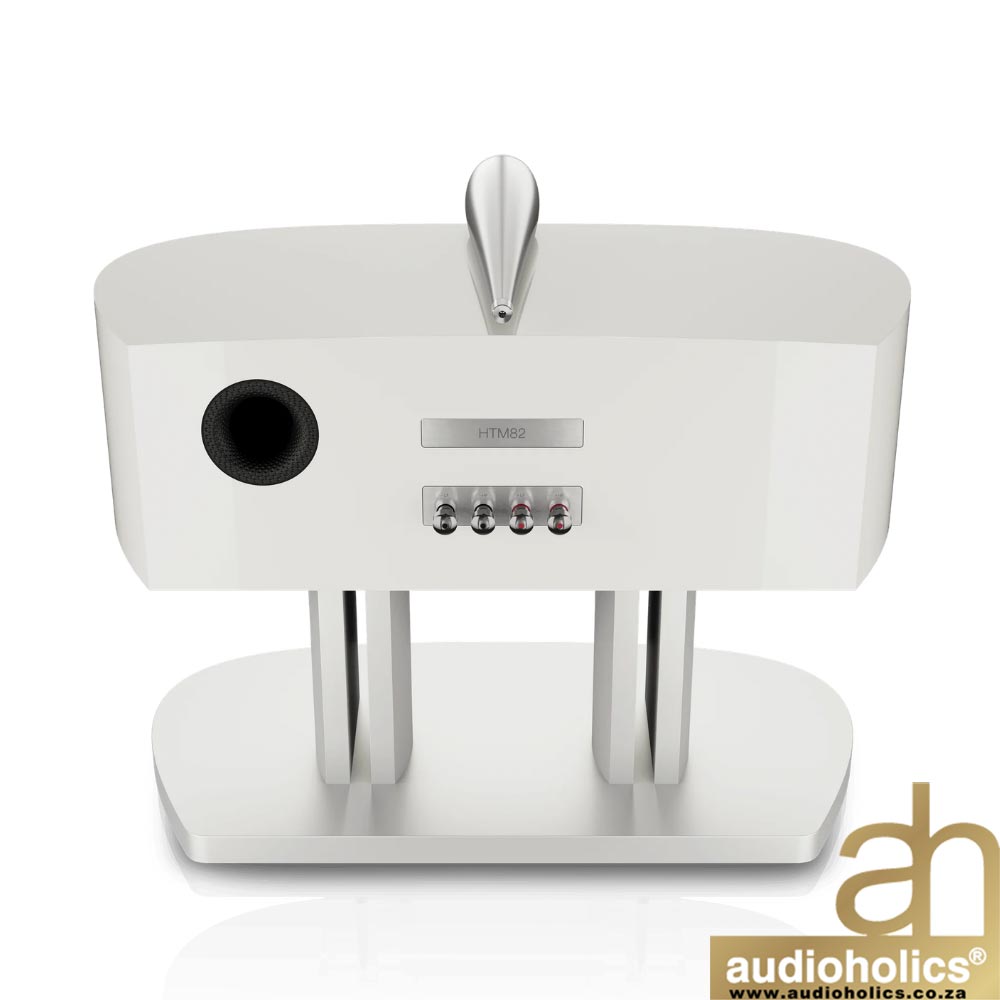

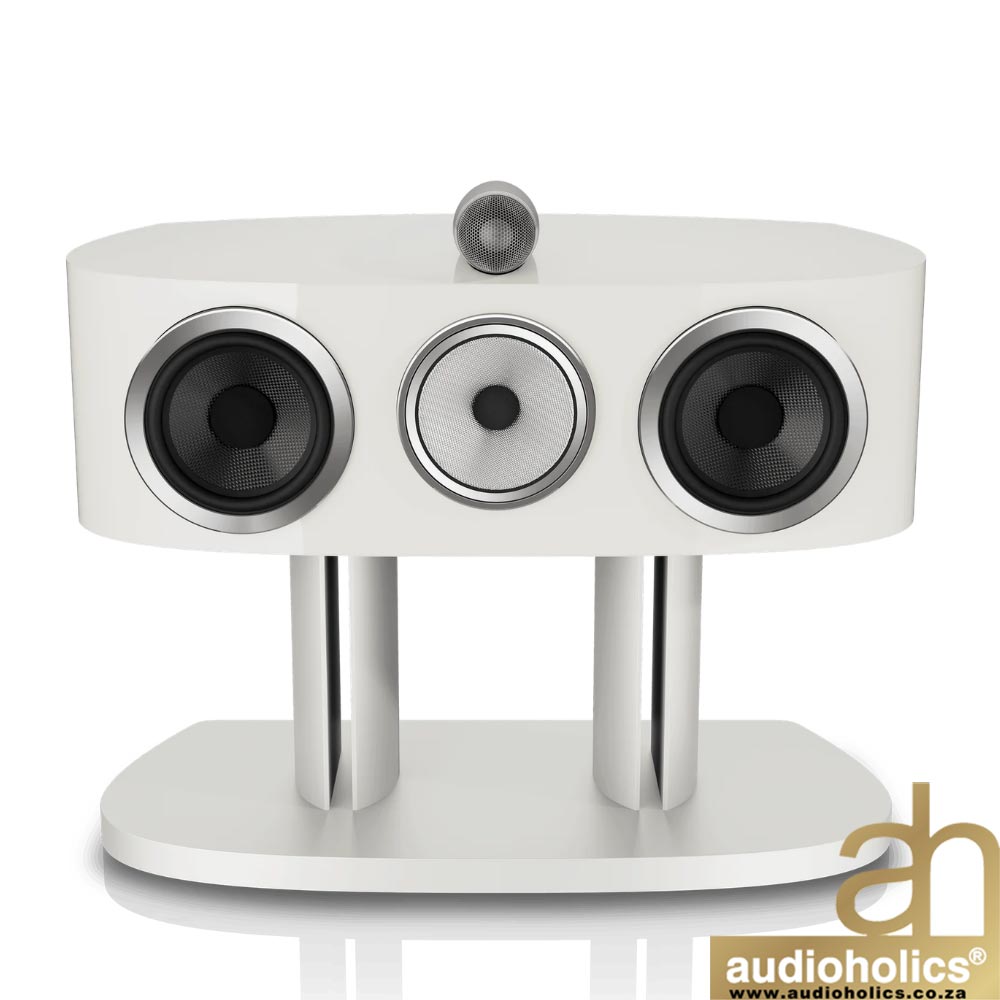

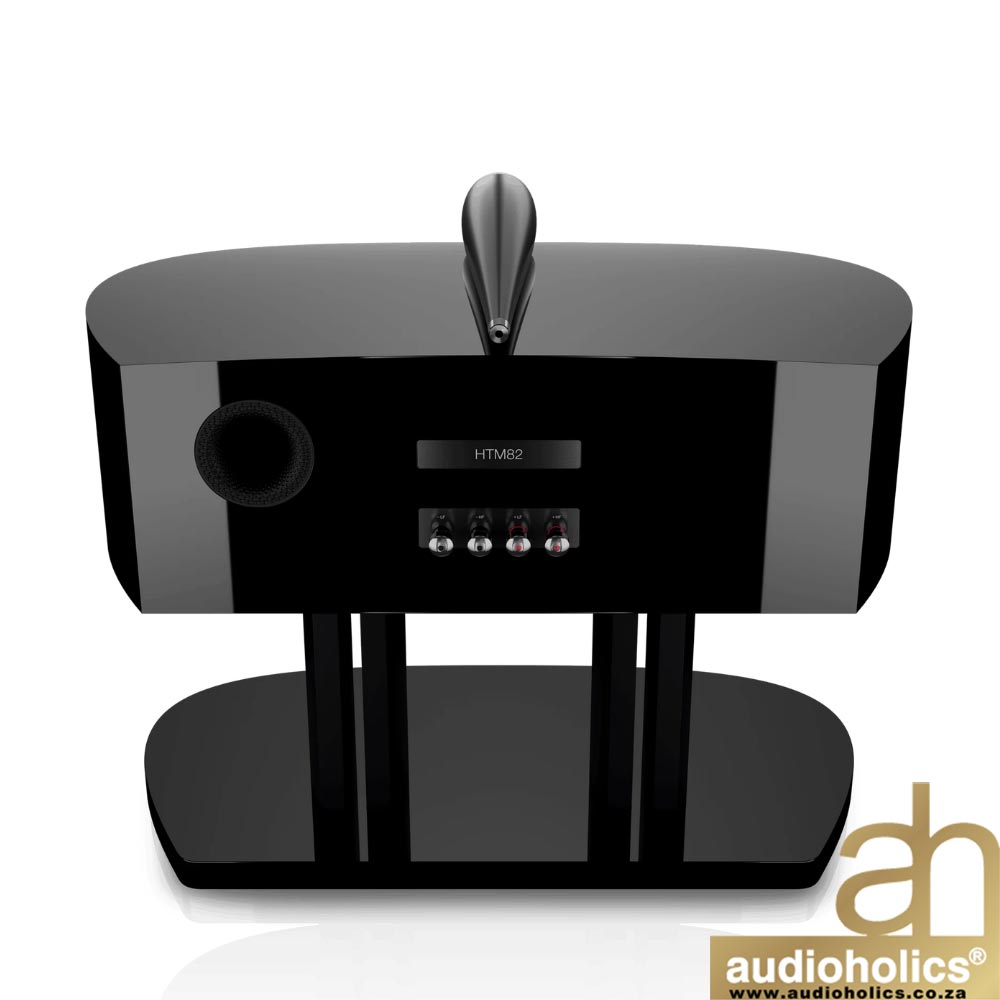

The Bowers & Wilkins HTM82 D5 delivers our flagship centre channel performance on a smaller scale. Paired perfectly with the 803 D5 or the 804 D5 loudspeakers, it adds beautiful clarity and precision to your movie-watching experience.
Featuring our Diamond dome tweeter, Solid Body Tweeter-on-Top, a decoupled Continuum Cone midrange drive unit and twin Aerofoil bass cones, HTM82 D5 is engineered with our most advanced technology to unveil even more detail from your favourite entertainment. Available in Stealth Black and Warm White with an optional matching floorstand for seamless installation.
SPECIFICATIONS
Technical features
Diamond dome tweeter
Solid body Tweeter-on-Top
Continuum™ cone FST midrange
Anti-Resonance plug
Biomimetic Suspension
Matrix™
Aerofoil™ base cones
Flowport™
Description
3-way vented-box system
Drive units
1x ø25mm (1in) Diamond dome high-frequency
1x ø130mm (5in) Continuum cone FST midrange
2x ø165mm (6.5in) Aerofoil™ bass
Frequency range
-6dB 33Hz to 35kHz
Frequency response
45Hz to 28kHz (+/-3dB)
Sensitivity
89dB
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 80Hz – 20kHz
<0.3% 100Hz – 8kHz
Nominal impedance
8Ω (minimum 3.0Ω)
Recommended amplifier power
50W – 1000W into 8Ω on unclipped programme
Max recommended cable impedance
0.1Ω
DimensionsHeight: 289mm (11.4 in) including tweeter
Width: 715mm (28.1 in) cabinet only
Depth: 363mm (14.3in) including grille and terminals
Net weight
26.1kg (57.5lbs)
