Description

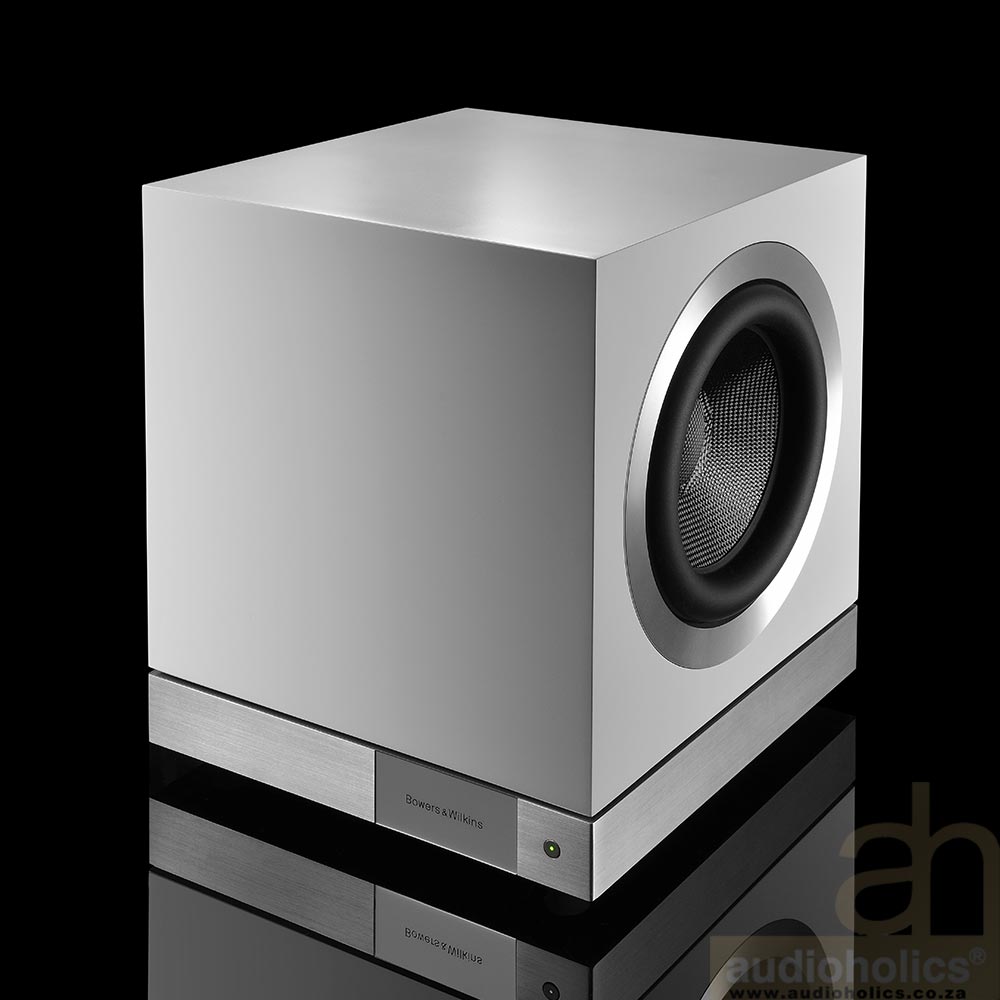

Despite its compact dimensions, B&W DB3D delivers astonishingly powerful, controlled bass thanks to its twin 8-in Aerofoil™ drivers, amplifier and digital signal processing.
Power packed
DB3D’s tight, powerful, dramatic bass and compact size make it the perfect match for the 804 D4 and 805 D4 speakers.
More bass, less space
Compact model packs a mighty punch. Controllable, dramatic bass from a subwoofer so small it fits almost anywhere: DB3D is a space-saving high-performance design.
Nimble and powerful
Solid, dramatic bass is delivered through the rigidity and lightness of the uniquely-shaped, variable thickness Aerofoil™ cone.
A question of balance
The back-to-back (opposed) drivers cancel out cabinet resonances, ensuring all that power is used to create room-shaking bass, not wasted vibrations.
The digital advantage
Digital amplification is cool-running and energy efficient, even when working hard, while Dynamic EQ and Room EQ ensure a precise sound for music and movies.
Take control
By placing control in the palm of your hand, our subwoofer app not only makes our DB Series subwoofers a snap to set up, it also helps maximize your sound quality.
The perfect match
DB3D’s ultra-rigid low-resonance enclosure comes in three finishes to match 800 Series Diamond and 700 Series loudspeakers.
SPECIFICATIONS
Drive units
2 x 200mm (8 in) Aerofoil™ cone drive units in a balanced configuration
Frequency response
10Hz – 350 Hz -3dB (centered on level at 100Hz)
Technical features
2 x 200mm (8 in) Aerofoil™ cone drive units in a balanced configuration
Digital preamplifier with Dynamic EQ
App-based set-up and BT-LE control
Description
DB Series Subwoofer
Frequency range
-6dB at 8.5Hz – 500Hz
Inputs
2 x XLR
2 x RCA
2 x 3.5mm 12V trigger
RS-232 – 9-pin D connector
Net weight
25kg
Dimensions
Height: 360mm (14.1 in)
Width: 320mm (12.6 in)
Depth: 300mm (11.8 in)
