Description

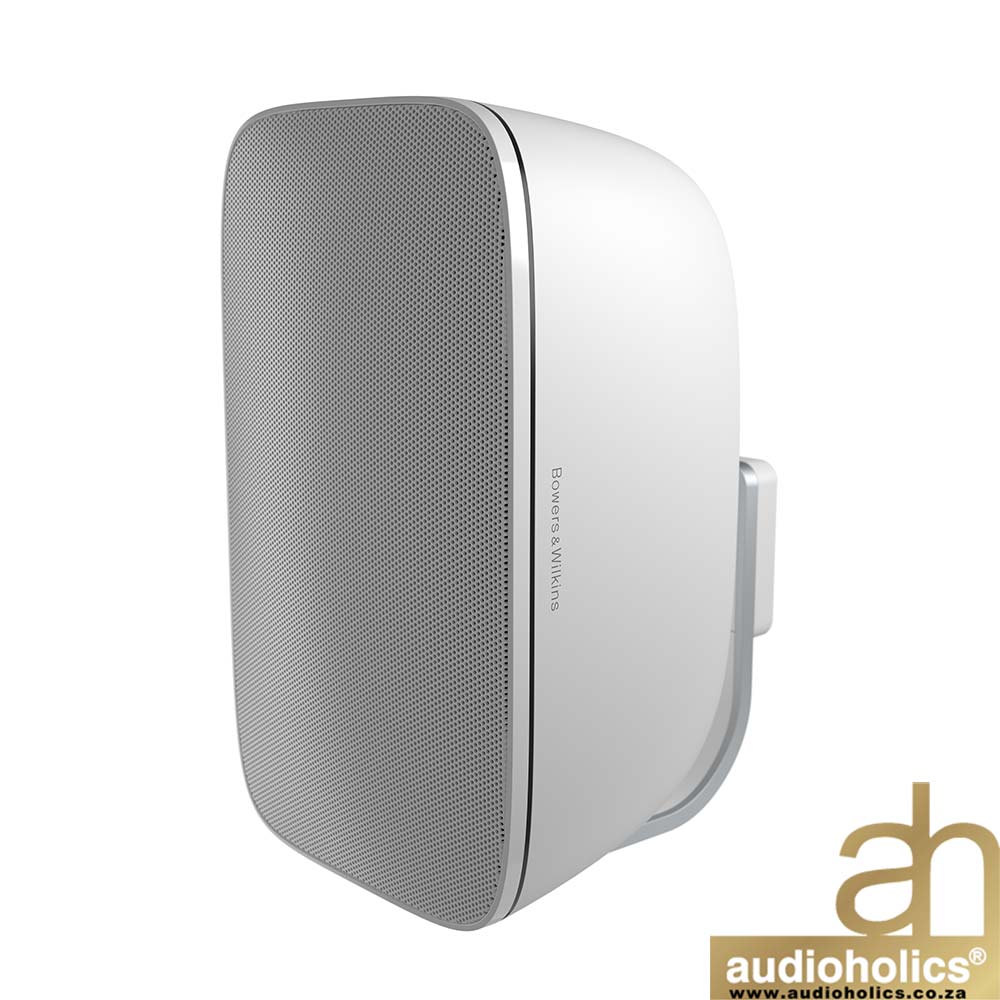

Position vertically or horizontally thanks to the elegant aluminium wall-bracket. Resistant to dust, moisture and UV, the AM-1 is far tougher than it looks.
Performance that endures

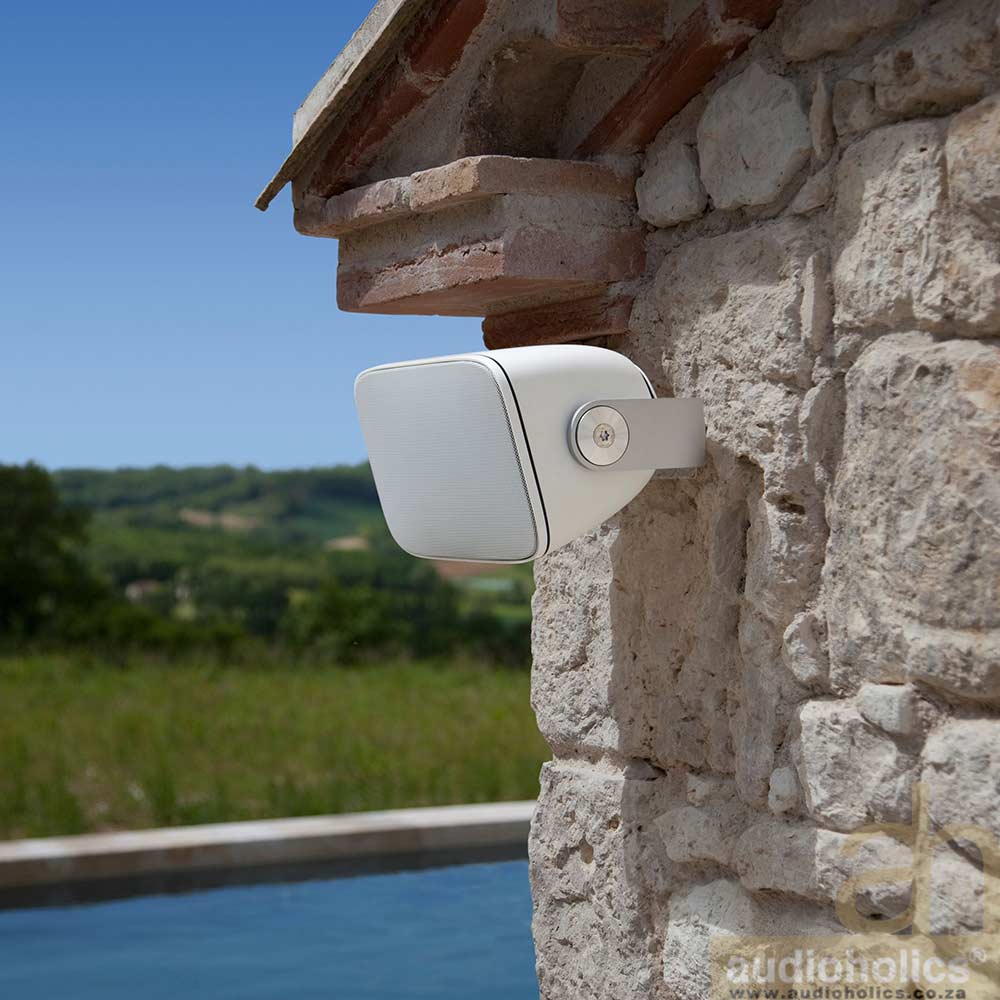

AM-1 is entirely sealed, in order to keep the elements at bay. It’s tough and hard-wearing too, and its clever one-piece mounting system with 220-degree rotation means it’s ready to perform wherever you want it to, come rain or shine.
Easy to install, great to listen to
A one-plug, simple-to-install mounting system means AM-1 is happy vertically or horizontally. Plus, smart engineering means AM-1 sounds great whichever way you choose to mount it.
Specified and built without compromise
With our trademark Nautilus tube-loaded 25mm aluminium dome tweeter and 130mm glassfibre mid/bass driver supplemented by an auxiliary bass radiator for solid, powerful bass response, AM-1 has sound and scale way beyond its compact dimensions.
SPECIFICATIONS:
DimensionsHeight: 310mm (12 1/4in)
Width: 180mm (7in)
Depth: 210mm (8 1/4in)
Net weight4kg (8.8lb)
Technical features
Nautilus™ tube loaded aluminum dome tweeter
Glassfiber cone bass/midrange
Auxiliary Bass Radiator (ABR)
Description
2-way system with Auxiliary Bass Radiator (ABR)
Drive units
1x ø25mm (1in) aluminum dome high-frequency
1x ø130mm (5in) glassfiber cone bass/midrange
Frequency range
-6dB at 46Hz and 50kHz (wall mounted)
Frequency response
51Hz – 22kHz on reference axis (wall mounted)
Sensitivity
86dB (2.83V, 1m)
Harmonic distortion
<1% 200Hz – 20kHz (86dB, 1m)
Nominal impedance
8Ω (5.2 Ω min)
Recommended amplifier power
20W – 100W into 8Ω on unclipped program
