Description

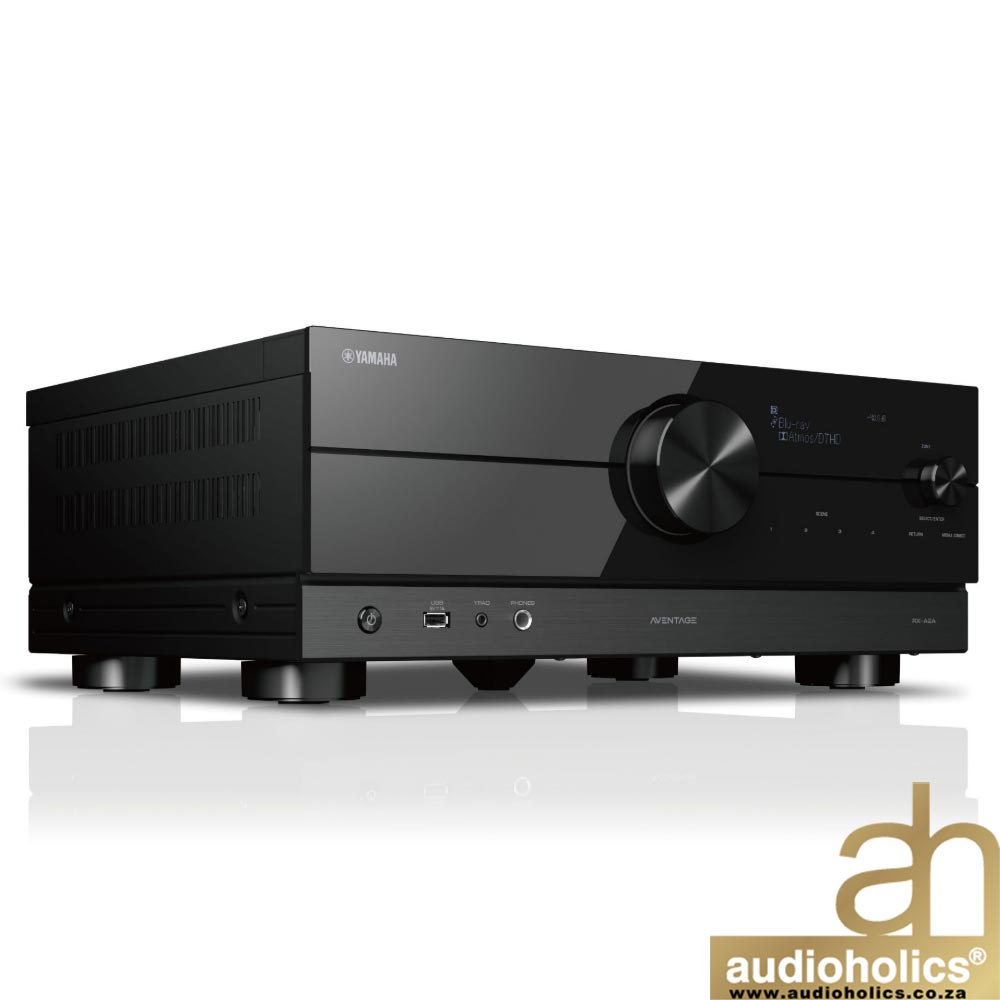

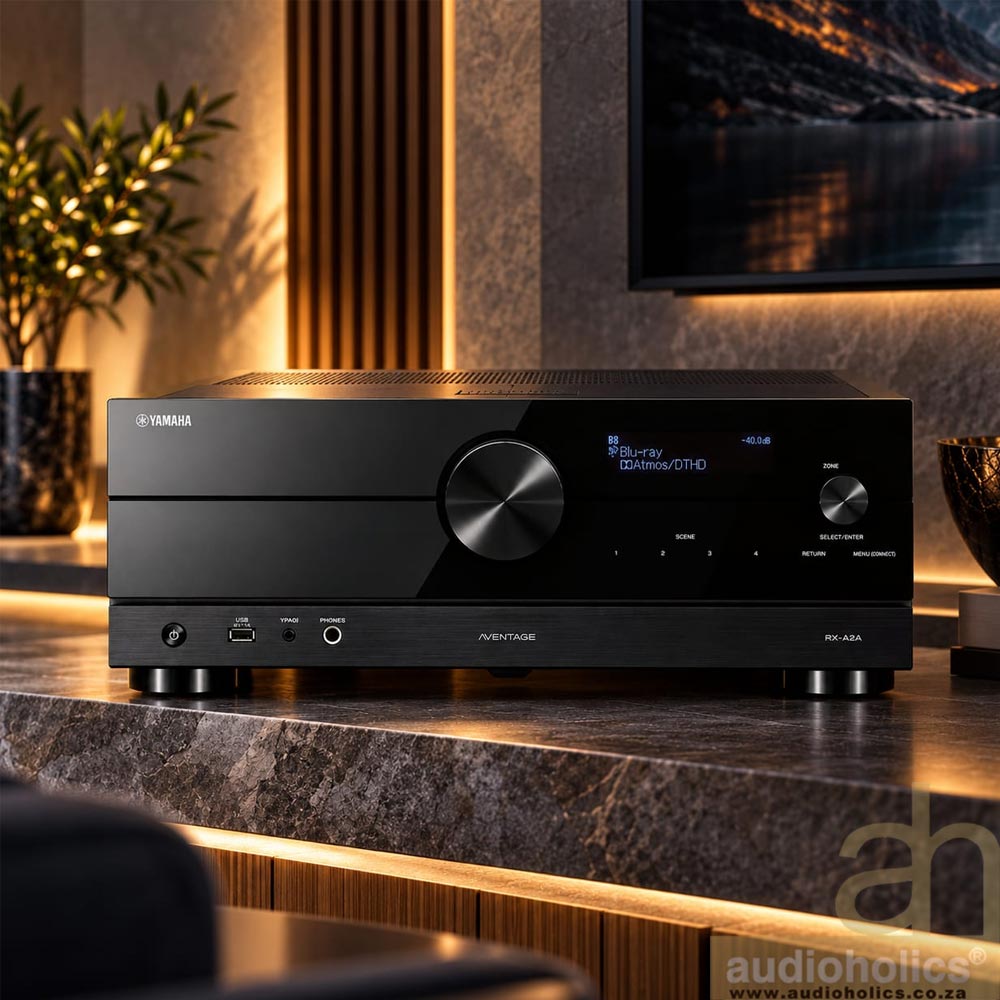

The Yamaha RX-A2A is a 7.2 Channel powerful surround sound with Zone2 and comes with CINEMA DSP 3D, HDMI™ 7-in/1-out, Special A.R.T technology.
- 7.2 Channel powerful surround sound with Zone2
- Wi-Fi, Bluetooth®, Airplay 2, Spotify Connect and MusicCast multi-room audio
- Dolby Atmos® with height virtualization via FW Update
- Dedicated gaming function (ALLM,VRR)
- MusicCast Surround capable – add MusicCast 20 or MusicCast 50 speakers to create wireless surround sound
- YPAO™-R.S.C. (Reflected Sound Control) sound optimisation
With its powerful design, the A2A was made to deliver rock-solid, superior sound. This impressive AV receiver will completely transform your home cinema with professional-quality audio and video.
TRUE SOUND
Make every night movie night. In fact, feel like you’ve entered the story. The Yamaha approach to tonal balance delivers incredibly detailed and accurate timbre in each voicing. Dynamism is found in the emotive contrast between the stillness and motion in the movie. The urgency and suspense between action scenes is palpable through the sound field that is created.
Dolby Atmos® with Height Virtualizer
For those without in-ceiling or upward firing speakers in their system, Dolby Atmos® with Height Virtualization Technology simulates the Atmos experience with forward facing-drivers. Configure up to five speakers to replicate the effect of two in-ceiling speakers, or utilize all seven channels to simulate the powerful effect of four overhead speakers.
DTS:X®
DTS:X immersive audio formatting places sound where it would naturally occur in space, creating life-like, multi-dimensional audio. The included spatial remapping engine of DTS Neural:X™ offers improved immersion and heightened realism in all your favorite movies.
SPECIFICATIONS

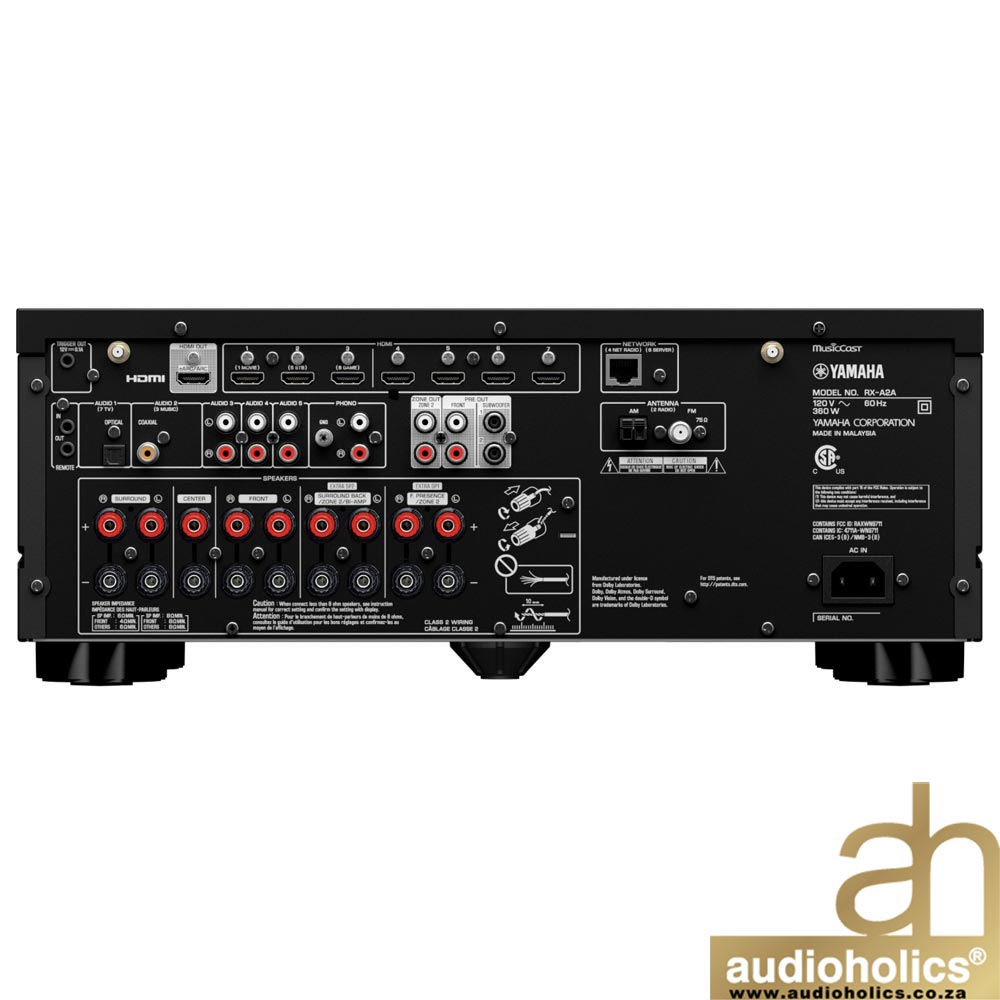

Input jacks
Analog AudioAudio x 4 (including PHONO)
Digital Audio
Optical x 1 (Supported frequencies: 32 kHz to 96 kHz)
Coaxial x 1 (Supported frequencies: 32 kHz to 192 kHz)
HDMI Input
HDMI x 7
Other jacks
USB x 1 (USB2.0)
NETWORK (Wired) x 1 (100Base-TX/10Base-T)
Output jacks
Analog Audio
Speaker Out
x 9 (7 ch) (FRONT L/R, CENTER, SURROUND L/R, EXTRA SP 1 L/R*1, EXTRA SP 2 L/R*2)
Assignment is possible [F.PRESENCE, ZONE2]
Assignment is possible [SURROUND BACK, ZONE2, BI-AMP (FRONT L/R)]
Pre Out x 4 (FRONT L/R, Subwoofer [monaural] x 2)
ZONE
2 OUT x 2 (L/R)
Headphone
x 1
HDMI Output
HDMI OUT x 1
Other jacks
YPAO x 1
REMOTE IN x 1
REMOTE OUT x 1
TRIGGER OUT x 1
HDMI
HDMI Features:8K, 4K Ultra HD (include 8K/60, 50 Hz, 4K/120, 100 Hz 10-bit ), 3D Video, ARC (Audio Return Channel), eARC (enhanced Audio Return Channel), HDMI Control (CEC), Auto Lip Sync, Deep Color, “x.v.Color”, HD audio playback, 21:9 Aspect Ratio, BT.2020 Colorimetry, HDR Compatible, HDR10+, Dolby Vision, Hybrid Log-Gamma, DSC FRL, FRL
Video Format (Repeater Mode)VGA
480i/60 Hz
576i/50 Hz
480p/60 Hz
576p/50 Hz
720p/60 Hz, 50 Hz
1080i/60 Hz, 50 Hz
1080p/120 Hz, 100 Hz, 60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz
4K/120 Hz, 100 Hz, 60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz
8K/60 Hz (8K60B)*, 50 Hz (8K50B)*, 30 Hz, 25 Hz, 24 Hz
DSC (Display Stream Compression) only
The input 8K signal is supported by the HDMI 1-3 jacks.
Audio Format
Dolby Atmos
Dolby TrueHD
Dolby Digital Plus
Dolby Digital
DTS:X
DTS-HD Master Audio
DTS-HD High Resolution
DTS Express
DTS
DSD 2-ch to 6-ch (2.8 MHz)
PCM 2-ch to 8-ch (Max. 192 kHz/24-bit)
Content Protection: HDCP 1.4/2.3 compatibleLink Function: CEC supportedTUNERAnalog Tuner[U.K., Europe and Russia models]
DAB/FM with Radio Data System x 1 (TUNER)
(20 Hz to 20 kHz, 0.06% THD, 8 Ω)
Front L/R, Surround L/R, Surround Back L/R
100 W/ch
Center
100 W
(1 kHz, 0.9% THD, 8 Ω)
Front L/R, Surround L/R, Surround Back L/R
105 W/ch
Center
105 W
Power Output (1-channel driven)
(1 kHz, 0.9% THD, 8 Ω)
Front L/R, Center, Surround L/R, Surround Back L/R
125 W
(1 kHz, 0.9% THD, 4 Ω)
Front L/R
150 W
Maximum Effective Power Output (1-channel driven)
(1 kHz, 10% THD, 8 Ω)
Front L/R, Center, Surround L/R, Surround Back L/R
150 W
(1 kHz, 10% THD, 6 Ω)
Front L/R, Center, Surround L/R, Surround Back L/R
160 W
Damping Factor
Front L/R (1 kHz, 8 Ω)
100 or more
Input Sensitivity / Input Impedance
PHONO (1 kHz, Rated Power Output)
3.5 mV/47 kΩ
AUDIO 3 etc. (1 kHz, Rated Power Output)
200 mV/47 kΩ
Maximum Input Signal
PHONO (1 kHz, 0.5% THD)
45 mV
AUDIO 3 etc. (1 kHz, 0.5% THD)
2.4 V
Rated Output Level / Output Impedance
PRE OUT
Front L/R (1 kHz)
1.0 V/470 Ω
SUBWOOFER (50 Hz)
1.0 V/470 Ω
ZONE2 OUT
1.0 V/470 Ω
Maximum Output Level
PRE OUT
Front L/R
2.0 V
SUBWOOFER
6.5 V
Headphone Impedance
16 Ω or more
Frequency Response
AUDIO 3 etc. to Front (Pure Direct) (10 Hz to 100 kHz)
+0/-3 dB
RIAA Equalization Deviation
PHONO (20 Hz to 20 kHz)
0±0.5 dB
Total Harmonic Distortion
PHONO to PRE OUT (Pure Direct) (1 kHz, 1 V)
0.02% or less
AUDIO 3 etc. to Front (Pure Direct) (20 Hz to 20 kHz, 50 W, 8 Ω)
0.04% or less
Signal to Noise Ratio (IHF-A Network)
PHONO (Pure Direct) (Input 1 kΩ Shorted, Speaker Out)
95 dB or more
AUDIO 3 etc. (Pure Direct) (Input 1 kΩ Shorted, Speaker Out)
110 dB or more
Residual Noise (IHF-A Network)
Front L/R (Speaker Out)
150 μV or less
Channel Separation
PHONO (Input 1 kΩ Shorted, 1 kHz/10 kHz)
60 dB/55 dB or more
AUDIO 3 etc. (Input 1 kΩ Shorted, 1 kHz/10 kHz)
70 dB/50 dB or more
Volume Control
Main Zone
MUTE, -80 dB to +16.5 dB (0.5 dB Step)
Zone2
MUTE, -80 dB to +10.0 dB (0.5 dB Step)
Tone Control Characteristics
Main Zone
Bass Boost/Cut
±6 dB/0.5 dB Step at 50 Hz
Bass Turnover
350 Hz
Treble Boost/Cut
±6 dB/0.5 dB Step at 20 kHz
Treble Turnover
3.5 kHz
Zone2
