Description

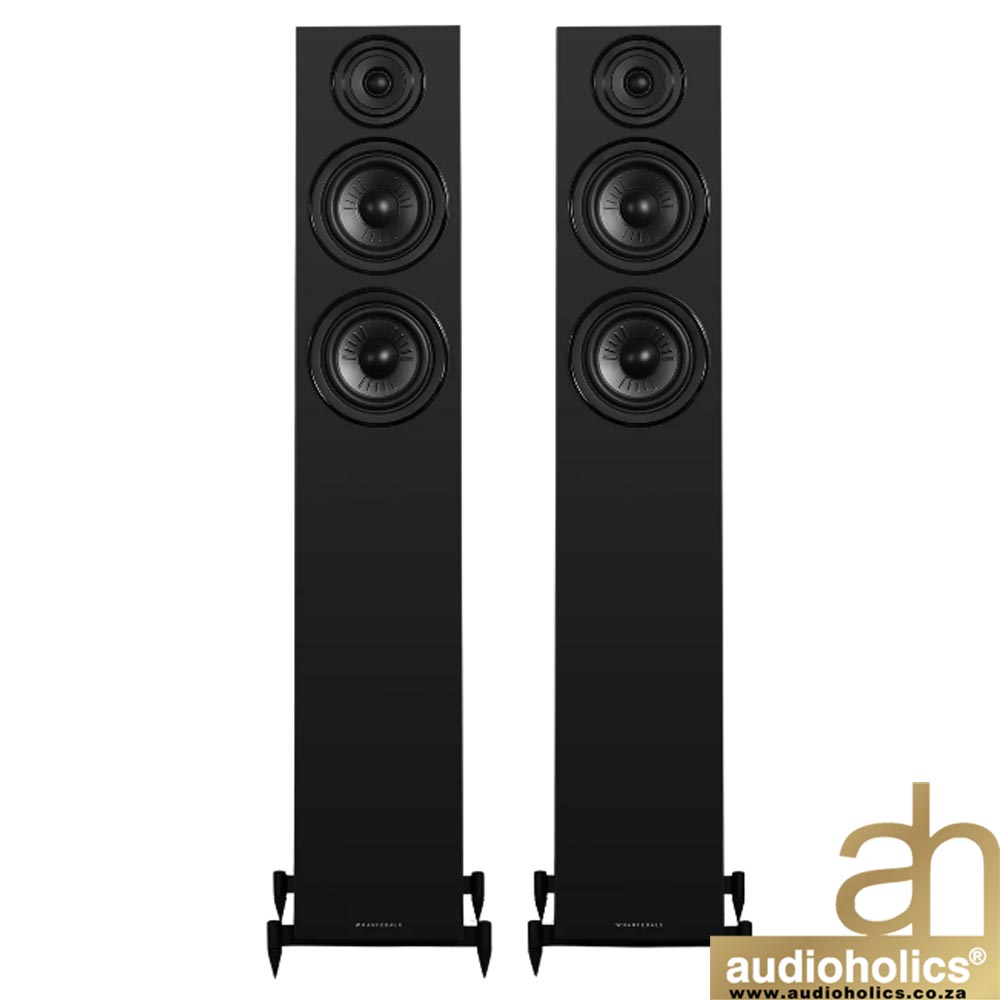

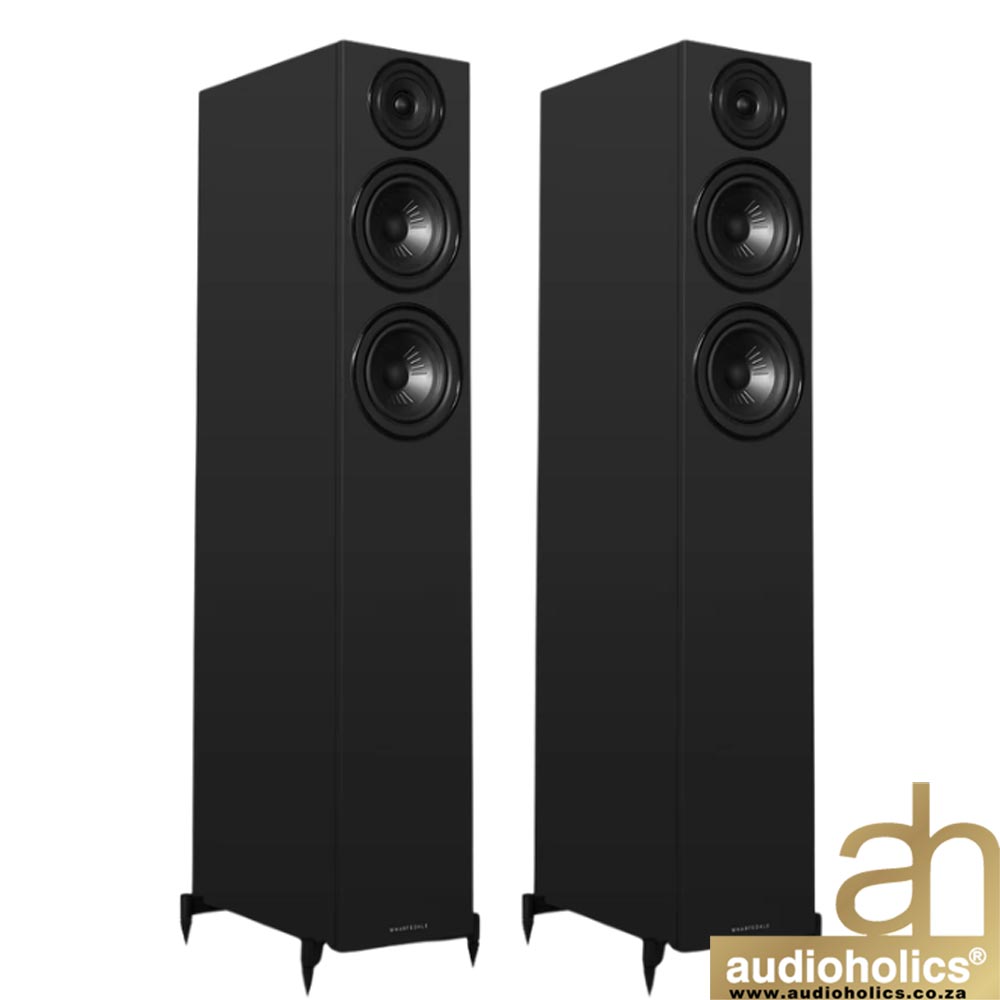

Our Diamond 12.4i (Open Box) Model is an impressive pair of floorstanding speakers.
Attention Potential Buyers: Our trade-in model is now ready for purchase. Act swiftly not to lose out!
- Colour: Black
- Condition: Mint
- Qty: ONLY 1x PAIR Available
- Delivery: Free Nationwide
- Fully Boxed with all manuals and accessories
More Than Skin Deep
Known for quality, affordability, and exceptional build quality, the Wharfedale Diamond series has always prioritised fit and finish. The new luxurious finishes enhance the loudspeaker’s premium look and feel, matching its impressive sound performance.
Incremental Acoustic Enhancements
Along with the aesthetic upgrade, Wharfedale’s engineering team revisited the speaker’s internals, paying special attention to bass port tuning and airflow control. Small but significant changes to the port design and internal damping have improved bass clarity and low-frequency control—especially in real-world environments. Listeners will notice the difference.
A thorough port design effort led by Wharfedale’s Director of Acoustic Design, Peter Comeau, and senior engineers Dan Bailey Ornellas and Oliver Davies aimed to refine low-frequency performance through extensive empirical testing and listening evaluations. The development process lasted several months and included advanced techniques, such as laser interferometry, extensive anechoic and in-room measurements, and computational fluid dynamics (CFD) to assess airflow and pressure in the port structure. Critical listening sessions—totalling hundreds of hours—were held to confirm the results. The outcome is a bass response that is better controlled and more articulate, with improved transitions between low and mid frequencies and consistent spatial performance, no matter the placement. These changes maintain the DIAMOND 12’s signature neutrality while subtly increasing listener engagement and dynamic flow.
At the Core: Klarity™ Cone Technology
The DIAMOND 12i mid/bass driver cones remain unchanged and are made from Klarity™, a special blend of polypropylene and mica that provides excellent stiffness and low distortion. This results in a cone that is lightweight, well-damped, and very responsive, delivering natural, expressive dynamics and precise transient response.
A low-damping surround enhances the cone’s efficiency and dynamic range, while ribbed shaping and profile simulation ensure a smooth, linear frequency response without added distortion.
Advanced Magnet Assembly
Each mid/bass driver features a precise magnet system with an aluminium compensation ring to reduce the effects of inductance changes as the voice coil moves. This advanced motor system minimises intermodulation and distortion, producing cleaner, more accurate sound.
The voice coil is wrapped around a high-power epoxy/glass fibre bobbin, which performs significantly better than standard materials at this price point, offering greater power handling, thermal stability, and structural strength.
SPECIFICATIONS
Model
DIAMOND 12.4i
General Description
2.5-way floorstanding speaker
Design Philosophy and Core Technology
Enclosure Type
bass reflex
Transducer Complement
ABR
Bass Driver
6.5″ (150mm) advanced PP Cone
Midrange Driver
6.5″ (150mm) advanced PP Cone
Treble Driver
1″ 25mm) Textile Dome
Full-range Driver
AV Shield
No
Sensitivity (2.83V @ 1m)
89dB
Recommended Amplifier Power
30-200W
Peak Power Handling
Peak SPL
102dB
Nominal Impedance
8Ω Compatible
Minimum Impedance
5.0Ω
Frequency Response (+/-3dB)
40Hz – 20kHz
Bass Extension (-6dB)
35Hz
Crossover Frequency
2.1kHz
Cabinet Volume (in litres)
40.8L
Dimensions ( H x W x D )
(1100+50) x 200 x (350+28)mm
Net Weight
22.4kg/pcs
