Description

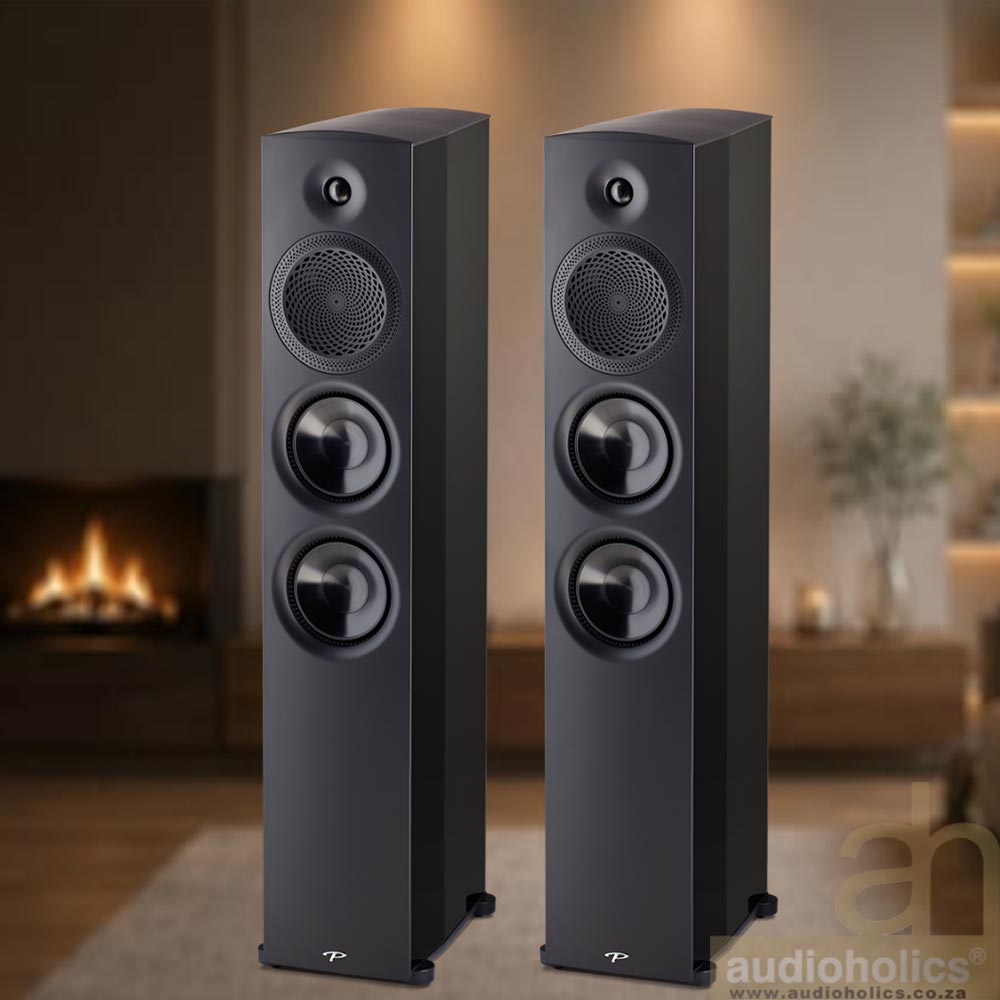

The Paradigm Premier 800F has a distinctive perforated lens in front of the tweeter and midrange drivers increase and smooth output without coloring the sound, while also protecting the drivers from getting damaged.
Patented Active Ridge Technology (ART™) Surrounds
Premier features Paradigm’s patented Active Ridge Technology (ART) surrounds, made in-house and overmolded directly onto each woofer and midrange cone. This design achieves greater excursion, for a 3dB gain in output and 50% reduction in distortion. Crafted from injection-molded thermoplastic elastomer, ART surrounds are more durable and more reliable, ensuring a lifetime of superior sound.
4-driver, 3-way bass reflex floorstanding 2nd-order electro- acoustic at 2.5 kHz, 2nd order electro-acoustic at 800 Hz 1” (25mm) X-PAL dome, ferro-fluid damped/cooled. Perforated Phase-Aligning (PPA™) Lens 5-1/2” (140mm) Surround with Carbon-Infused polypropylene cone. Perforated Phase-Aligning (PPA) Lens Two 5-1/2” (140mm) ART Surround Carbon-Infused polypropylene cones
SPECIFICATIONS
DESIGN
4-driver, 3-way bass reflex, floorstanding
CROSSOVER
2nd-order electro-acoustic at 2.5 kHz (tweeter/mid) and 700Hz (mid/woofers)
HIGH FREQUENCY DRIVER
1” (25mm) X-PAL™ dome, ferro-fluid damped / cooled, Perforated Phase-Aligning Tweeter (PPA™) Lens
FREQUENCY RESPONSE ON-AXIS
±3dB from 43 Hz – 25 kHz
FREQUENCY RESPONSE 30° OFF-AXIS
±3dB from 43 Hz – 20 kHz
MIDRANGE FREQUENCY DRIVER
6-1/2” (165mm) Surround with Carbon-Infused polypropylene cone. Perforated Phase-Aligning (PPA™) Lens
LOW FREQUENCY DRIVER
Two 6-1/2” (165mm) ART™ Surround Carbon-Infused polypropylene cones
SENSITIVITY ROOM / ANECHOIC
92 dB / 89 dB
LOW FREQUENCY EXTENSION
27 Hz (DIN)
SUITABLE AMPLIFIER POWER RANGE
15 – 250 watts
MAXIMUM INPUT POWER
180 watts
IMPEDANCE
Compatible with 8 ohms
FINISHES
Gloss Black, Gloss White, Espresso Grain MK 2
DIMENSIONS HXWXD
41.5″ × 9.125 × 13.75″ (105.3cm × 23 × 35cm)
WEIGHT
53.4 lbs. (24.2 kg)
