Description
Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
AL-MAC™ is a unique blend of Aluminum, Magnesium, and Ceramic materials; each of which contribute to the end goal of greater accuracy and realism. Their special properties contribute to the final product which is not only strong and lightweight, but embodies a natural anti-resonance to ensure the tweeter doesn’t just sound good “on paper” but truly sounds incredible in the real world.
Shock-Mount™ System
mechanically decouples the die-cast aluminum baskets from the specially formulate CARBON-X™ ingrained baffles reducing performance-robbing vibrations and resonance between the chassis and the acoustic platform. Without these resonances, all drivers are left free to deliver pure, unaltered sound with no audible distortion.
Oversized, 1.5” High-Power Handling Voice Coil
motor structure dramatically increases maximum output level and reduces power compression.
Patented† Active Ridge Technology (ART™) surrounds
made in-house and over-moulded directly onto each cone, achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds. † US patents: D654,479S and 8,340,340B2.
Specifications
DESIGN

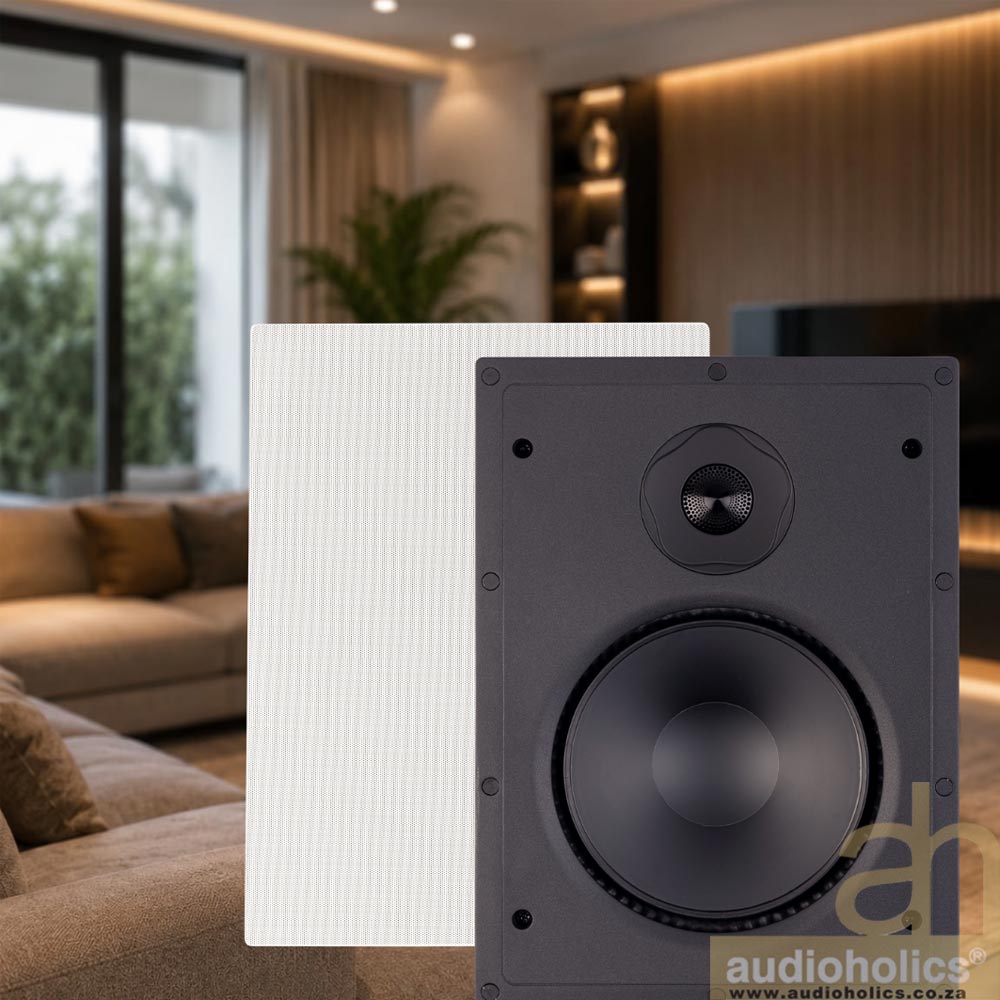

2-driver, 2-way in-wall, Advanced SHOCK-MOUNT™ System, Die-Cast Aluminum Baffle
CROSSOVER
3rd-order electro- acoustic at 2.0 kHz
FREQUENCY RESPONSE ON-AXIS
±3 dB from 57 Hz – 22 kHz
HIGH FREQUENCY DRIVER
1” (2.5cm) Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology
MID/BASS FREQUENCY DRIVER
8” (20.3cm) Aluminum Magnesium (AL-MAG™) Cones with overmolded Active Ridge Technology (ART™) surround, Advanced Shock-Mount™ System, 1.5” high-temp voicecoil, FEA-Optimized Ultra Rigid Cast- Aluminium Baskets
LOW FREQUENCY EXTENSION
33 Hz
SENSITIVITY ROOM / ANECHOIC
92 dB / 88 dB
FREQUENCY RESPONSE 30° OFF-AXIS
±3 dB from 57 Hz – 18 kHz
SUITABLE AMPLIFIER POWER RANGE
15-180 W
MAXIMUM INPUT POWER
120 W
IMPEDANCE
Compatible with 8 ohms
WEIGHT
3.9 kg
FINISHES
White, paintable grille, black speaker
CUT-OUT DIMENSIONS
29.3cm x 20.5cm
MINIMUM MOUNTING DEPTH
(DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2″ DRYWALL, OR SIMILAR MATERIAL.)
8.6cm
DIMENSIONS HXWXD (INCLUDES GRILLE).
32.1cm x 23.4cm x 10.2cm
