Description
Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
AL-MAC™ is a unique blend of Aluminum, Magnesium, and Ceramic materials; each of which contribute to the end goal of greater accuracy and realism. Their special properties contribute to the final product which is not only strong and lightweight, but embodies a natural anti-resonance to ensure the tweeter doesn’t just sound good “on paper” but truly sounds incredible in the real world.
Aluminum Magnesium (AL-MAG™) Cones
AL-MAG™ was conceived to bring the same elevated level of performance to the area where our ears are the most sensitive. In addition, AL-MAG™ combines a high stiffness-to-mass ratio with superior internal damping for greater accuracy.
Advanced Shock-Mount™ System
mechanically decouples the die-cast aluminum baskets from the specially formulate CARBON-X™ ingrained baffles reducing performance-robbing vibrations and resonance between the chassis and the acoustic platform. Without these resonances, all drivers are left free to deliver pure, unaltered sound with no audible distortion.
Oversized, 1.5” High-Power Handling Voice Coil
motor structure dramatically increases maximum output level and reduces power compression.
Patented† Active Ridge Technology (ART™) surrounds
made in-house and over-moulded directly onto each cone, achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds. † US patents: D654,479S and 8,340,340B2.
Specifications
DESIGN

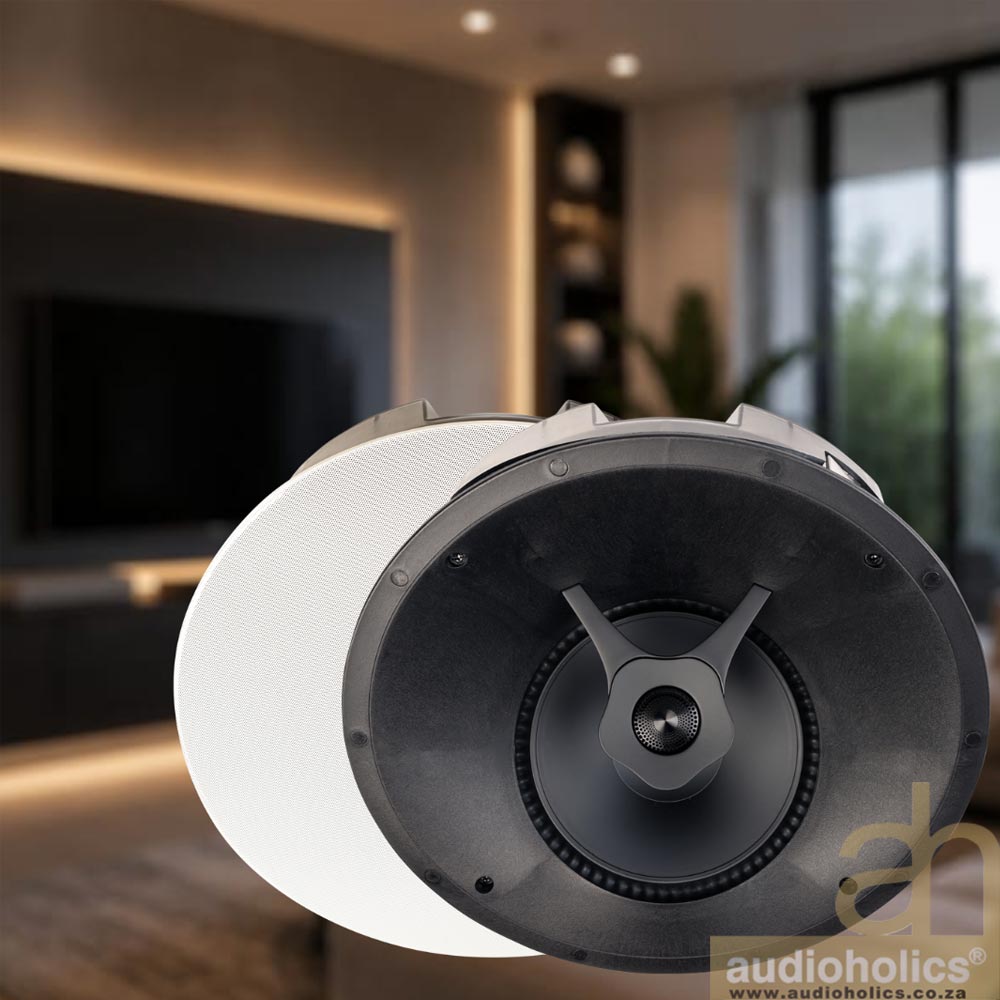

2-driver, 2-way in-ceiling, 30°-Angled Guided Soundfeild System, Advanced SHOCK-MOUNT™ System, Ultra-Rigid CARBON-X™ Baffle
CROSSOVER
3rd-order electro- acoustic at 2.0 kHz
FREQUENCY RESPONSE ON-AXIS
±3 dB from 60 Hz – 22 kHz
HIGH FREQUENCY DRIVER
1” (2.5cm) Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology
MID/BASS FREQUENCY DRIVER
8” (20.3cm) Aluminum Magnesium (AL-MAG™) Coneswith overmolded Active Ridge Technology (ART™) surround, Advanced Shock-Mount™ System, 1.5” high-temp voicecoil, FEA-Optimized Ultra Rigid Cast- Aluminium Baskets
LOW FREQUENCY EXTENSION
39 Hz
SENSITIVITY ROOM / ANECHOIC
94 dB / 90 dB
FREQUENCY RESPONSE 30° OFF-AXIS
±3 dB from 60 Hz – 18 kHz
SUITABLE AMPLIFIER POWER RANGE
15-160 W
MAXIMUM INPUT POWER
100 W
IMPEDANCE
Compatible with 8 ohms
WEIGHT
4.1kg
FINISHES
White, paintable grille, black speaker
CUT-OUT DIMENSIONS
29.1cm dia.
MINIMUM MOUNTING DEPTH
(DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2″ DRYWALL, OR SIMILAR MATERIAL.)
14.6cm
DIMENSIONS HXWXD (INCLUDES GRILLE).
32.0cm x 15.5cm
