Description

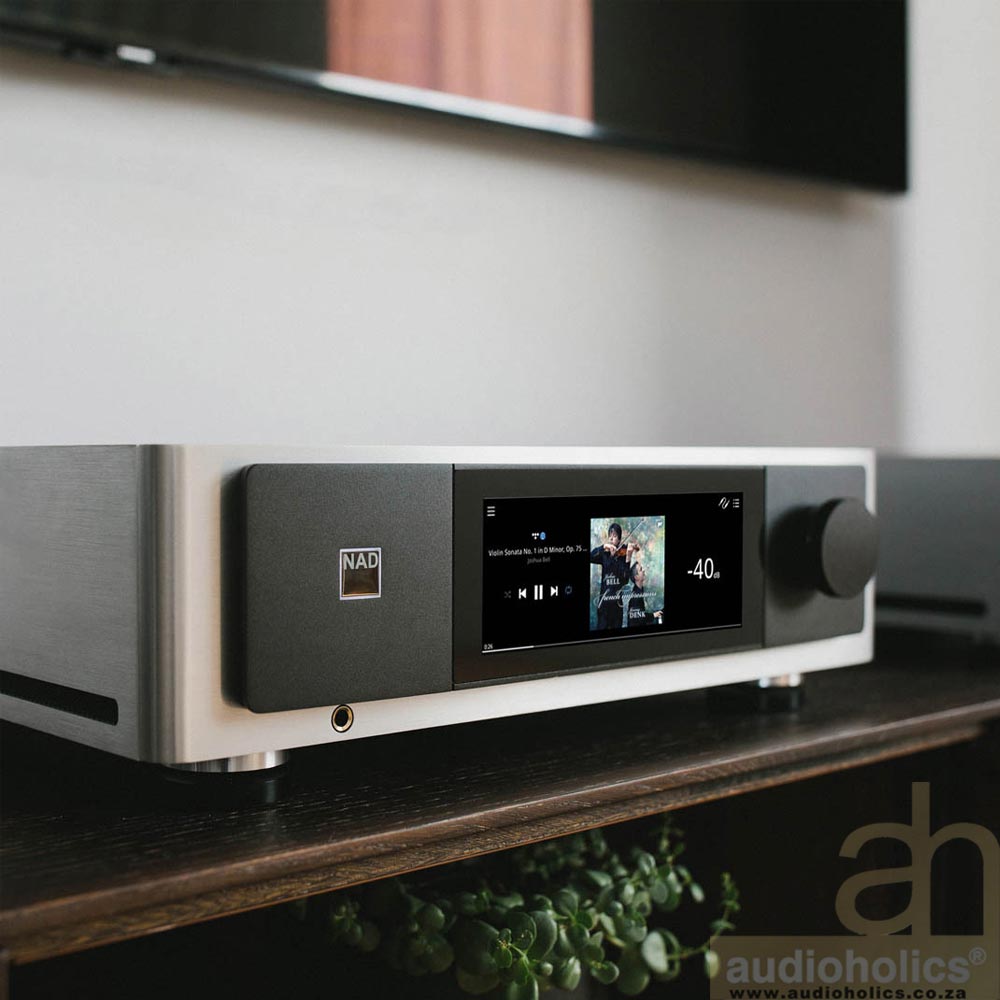

The NAD M66 Masters BluOS Streaming DAC-Preamplifier is a revolutionary hi-fi component that combines an audiophile-grade DAC with a high-resolution multi-room music streamer. Featuring Dirac Live Room Correction and Dirac Live Bass Control, its elegant design and vibrant 7″ touchscreen exudes quality and class. Pair it with NAD’s M23 power amplifier for a stunning system that excels technologically, sonically, and visually.
Music Everywhere
Featuring a high-resolution network streamer based on the acclaimed BluOS multi-room music-management system, the NAD M66 provides access to more than 20 streaming services, including several that offer lossless and high-resolution audio.
NAD M66 integrates Dirac Live Room Correction and Dirac Live Bass Control. Connect the supplied calibrated microphone to the M66’s USB port and then launch the Dirac Live app on a smart device or personal computer. The app will walk you through the calibration process, and then generate correction filters that compensate for acoustic problems like standing waves and unwanted reflections.
Peak Performance
At the heart of the NAD M66 digital section are ESS Technology’s flagship Sabre DAC and ADC chips. These audiophile-grade designs are known for their exceptionally wide dynamic range, ultra-low noise and distortion, and outstanding time-domain performance.
Connect Everything
With its full suite of analogue and digital inputs, the NAD M66 can accommodate all your source components. Vinyl fans will appreciate the M66’s ultra-quiet MM/MC phono stage, which features precise RIAA equalization, high overload margins, and an innovative circuit that suppresses the infrasonic noise that is always present with vinyl playback without affecting bass response.
Future Forward
NAD M66 Masters represents the pinnacle of what is technically achievable in a two-channel preamplifier today, and will maintain its technological leadership for decades to come. On the rear panel are two expansion slots that support MDC2, the latest generation of NAD’s Modular Design Construction future-proofing technology. As technology evolves, this will enable M66 owners to add new capabilities simply by inserting an MDC2 module into one of the slots.
Features & Details
• Ethernet and Wi-Fi networking
• BluOS network streamer provides access to over 20 streaming services, including several that deliver lossless and high-resolution audio
• Full MQA hardware decoding and rendering
• Support for Apple AirPlay 2, Spotify Connect, Tidal Connect
• Support for Amazon Alexa, Google Assistant, and Apple Siri voice control
• Dirac Live Room Correction
• Four balanced and four unbalanced subwoofer outputs
SPECIFICATIONS
THD (20Hz – 20kHz)
<0.001% at 2V out
Signal-to-Noise Ratio
>105dB (IHF; A-weighted, ref. 500mV out, unity gain)
Channel separation
>116dB (1 kHz)
>106 dB (10 kHz))
Input Impedance (R and C)
56 kohms + 100 pF
Maximum input signal
>5.6Vrms (ref. 0.1% THD)
>8 Vrms (Analog Bypass)
Output impedance
Source Impedance + 22 Ohm
Input sensitivity
185mV (ref. 500mV out, Volume maximum)
Frequency response
±0.2dB (20Hz – 20kHz)
±0.2dB (Analog Bypass, 20Hz – 20kHz)
Maximum voltage output
-IHF load >5V (ref. 0.1% THD)
>10 V (Analog Bypass, ref. 0.1% THD)
BALANCED IN, BALANCED /ANALOG AUDIO OUTPUT
THD (20Hz – 20kHz)
<0.001% at 2V out
Signal-to-Noise Ratio
>105dB (200 Ohm source; A-weighted, ref. 500mV out)
Channel Seperation
>116dB (1 kHz)
>106 dB (10 kHz)
Input impedance
(R and C) 56 kOhms + 100 pF
Maximum input signal
>5.6 Vrms (ref. 1% THD)
>8 Vrms (Analog Bypass, ref. 1% THD)
Output impedance Source Impedance
+ 22 Ohms
Input sensitivity
90mV (ref. 500 mV out, Volume maximum)
Frequency response
±0.2 dB (20 Hz – 20 kHz)
±0.2 dB (Analog Bypass, 20 Hz – 80 kHz)
Maximum voltage output (IHF load)
>10 V (ref. 0.1 % THD)
>20 V (Analog Bypass, ref. 0.1 % THD)
DIGITAL SOURCE IN, SINGLE-ENDED /ANALOG AUDIO OUTPUT
THD (20Hz – 20kHz)
<0.0005% at 2V out
Signal-to-Noise Ratio
>108 dB (IHF; A-weighted, ref. 500 mV out, unity gain)
Channel separation
>126dB at (1kHz)
>115dB (10 kHz)
Input sensitivity
-20.25 dBFS (ref. 500 mV out (-6 dBV), max Volume
Frequency response
±0.2 dB (20 Hz – 20 kHz)
Maximum voltage output
-IHF load >5 V (ref. 0.1 % THD)
DIGITAL SOURCE IN, BALANCED /ANALOG AUDIO OUTPUT
THD (20 Hz – 20 kHz)
<0.0005% at 2V out
Signal-to-Noise Ratio
>108 dB (IHF; A-weighted, ref. 500 mV out, unity gain)
Channel Separation
>126 dB (1 kHz)
>115 dB (10 kHz)
Input sensitivity
-26.25 dBFS (ref. 500 mV out(-6 dBV), max Volume
Frequency response
±0.2 dB (20 Hz – 20 kHz)
Maximum voltage output (IHF load)
>10 V (ref. 0.1 % THD)
LINE IN, SINGLE-ENDED/SUBWOOFER OUTPUT/2SUBWOOFERS
THD (20 Hz – 20 kHz)
<0.005% at 2V out
Signal-to-Noise Ratio
>84 dB (IHF; A-weighted, ref. 500 mV out, unity gain)
Output impedance
480 Ohms
Maximum voltage output
-IHF load >5 V (ref. 0.1% THD
BALANCED IN, BALANCED /SUBWOOFER OUTPUT/2SUBWOOFERS
THD (20 Hz – 20 kHz)
<0.005% at 2V out
Signal-to-Noise Ratio
>80B (IHF; A-weighted, ref. 500 mV out, unity gain)
Output impedance
480 Ohms
Maximum voltage output
-IHF load >10 V (ref. 0.1 % THD)
PHONO INPUT, SINGLE-ENDED /ANALOG AUDIO OUTPUT (Analog bypass)
THD (20 Hz – 20 kHz)
MM: <0.008% (ref. 2 V out)
MC: <0.02% (ref. 2 V out)
Signal-to-Noise Ratio
MM: >82dB (A-weighted, ref. 500 mV out)
MC: >75dB (A-weighted, ref. 500 mV out)
Input Impedance (R and C)
MM: 56 kohms + 100 pF
MC: 100 ohms + 280 pF
Input sensitivity
MM: 1.7 mV (ref. 500 mV out, Volume maximum)
MC: 123 μV (ref. 500 mV out, Volume maximum)
Frequency response
±0.2 dB (20 Hz – 20 kHz)
Maximum input signal at 1kHz
MM: >80 mVrms
MC: >7 mVrms (ref. 0.1 % THD)
LINE INPUT, HEADPHONE OUT(Analog Bypass)
THD (20 Hz – 20 kHz)
<0.002% (ref. 1V out)
Signal-to-Noise Ratio
>98 dB (32 ohms loads; A-WTD, ref. 0.5V out, unity gain)
Frequency response
±0.3 dB (20 Hz – 20 kHz)
Channel separation
>62 dB at 1kHz
Output impedance Source
Z + 4.7ohms
Maximum input signal at 1kHz
MM: >80 mVrms
