Description

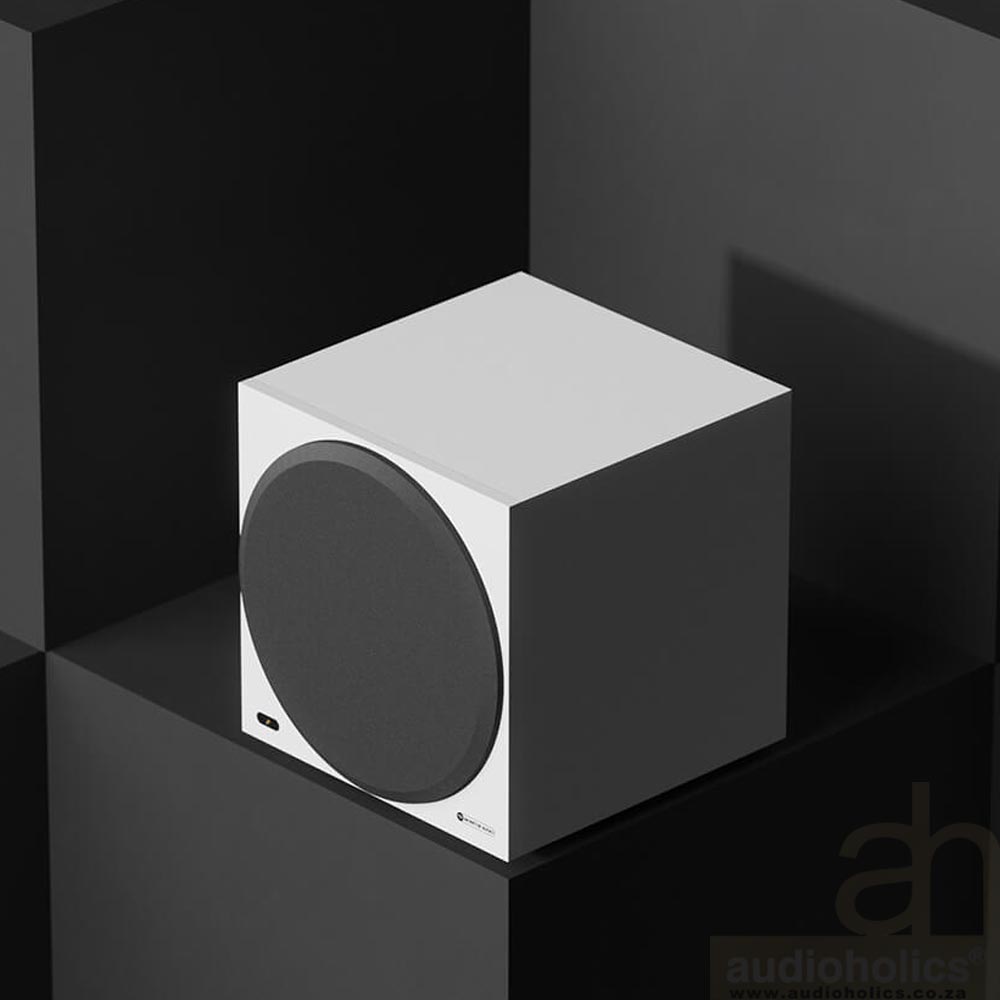

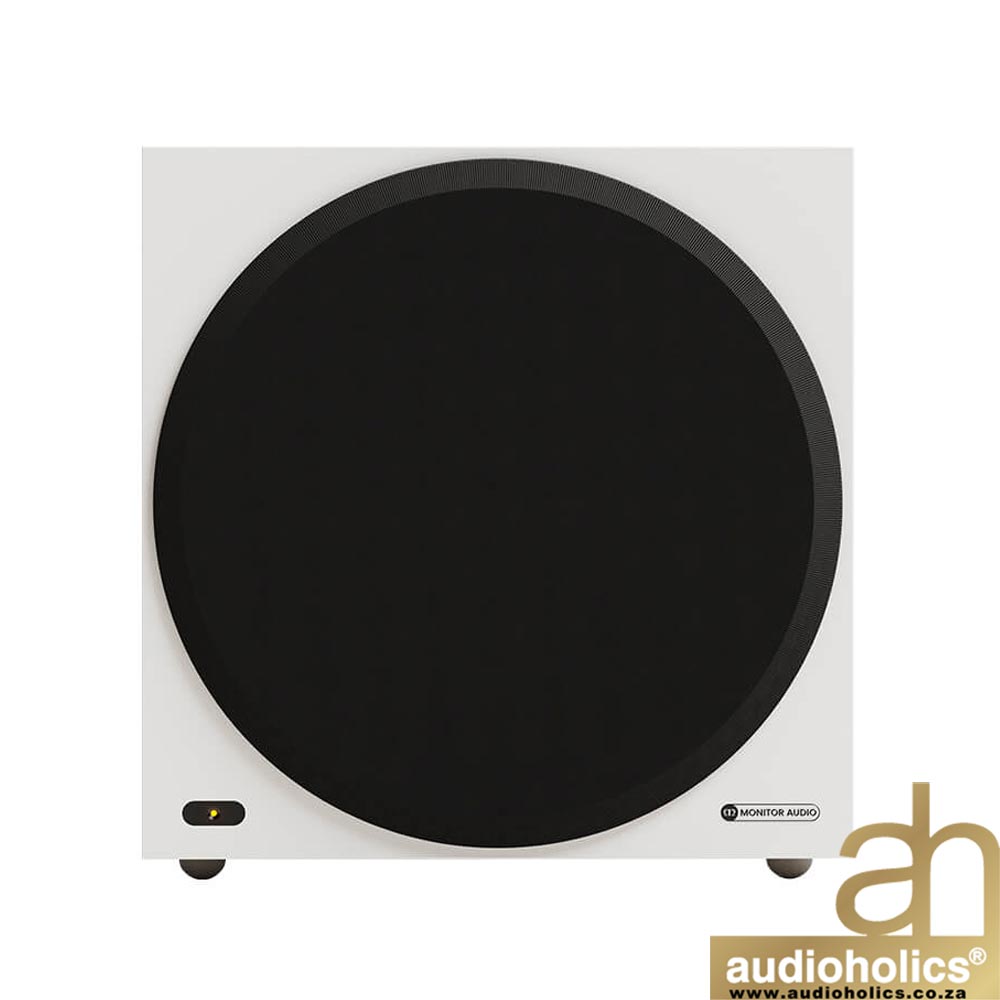

The Monitor Audio Vestra W12 Subwoofer is built to deliver uncompromising bass performance, perfect for any high-fidelity setup as a standalone item or in multiples for the ultimate fully immersive AV experience.
Features at a glance:
High linear-excursion C-CAM (Ceramic Coated aluminium Magnesium) driver | Triple suspension driver | 500-Watt Class-D Amplifier | Sealed-Enclosure | Three EQ pre-set modes | Stereo unbalanced RCA inputs | LFE unbalanced RCA inputs | 12 Volt trigger | 3.5mm mono jack
Performance-driven bass for every listener.
The Vestra W12 subwoofer delivers a potent combination of power, precision, and seamless design. Utilising Clever DSP (Digital Signal Processing) enhances customisation, allowing you to fine-tune the bass response to your space.
The Vestra W12’s sealed-enclosure design houses a 12-inch C-CAM (Ceramic-Coated Aluminium Magnesium) high linear-excursion driver featuring triple-layer suspension for greater control and ensuring precise, powerful bass with minimal distortion. Supported by a robust 500-watt Class-D amplifier and a rigid, acoustically optimised enclosure, the W12 delivers deep, impactful lows that remain clear and controlled at all listening levels.
SPECIFICATIONS
System Format
Active
Frequency Response (In-room, -6dB)
17 — 200 Hz
Maximum Usable SPL – Peak (CTA 2010-B, Z-weighted, half-space)
115 dB
Amplifier Output Instantaneous (RMS)
500 W
Amplifier Classification
High-Efficiency Class-D
Bass Alignment
Sealed
Low Pass Filter Frequency (-6dB)
32 — 200 Hz
Inputs
Stereo Unbalanced RCA
LFE Unbalanced RCA
12 V Trigger 3.5 mm mono jack
Input Impedance
47 kOhms
Phase Control
0° & 180° Toggle Switch
Equalisation DSP
3 pre-set modes: Impact, Movie, Music
Auto Music Sensing
Auto On: Line Level >3 mV | Auto Standby after 20 mins
Mains Input Voltage
Universal Mains, 85 – 265 VAC, 50 – 60 Hz
Power Consumption (1/8th Maximum Output)
120 W
Drive Unit Complement
1x 12″ (305 mm) High Linear-Excursion Triple Suspension Driver
External Dimensions with all accessories fitted(H x W x D)
385 x 371 x 401 mm (151/8 x 149/16 x 1513/16″)
Weight
18.3 kg
Grille
Cloth covered
