Description
The Monitor Audio Gold On-Wall 6G is a highly flexible loudspeaker, designed to be used as a rear- or side-channel loudspeaker, or in a wall-mounted LCR configuration. It features the latest MPD III high-frequency transducer alongside an HDT, C-CAM 6-inch mid-bass driver.

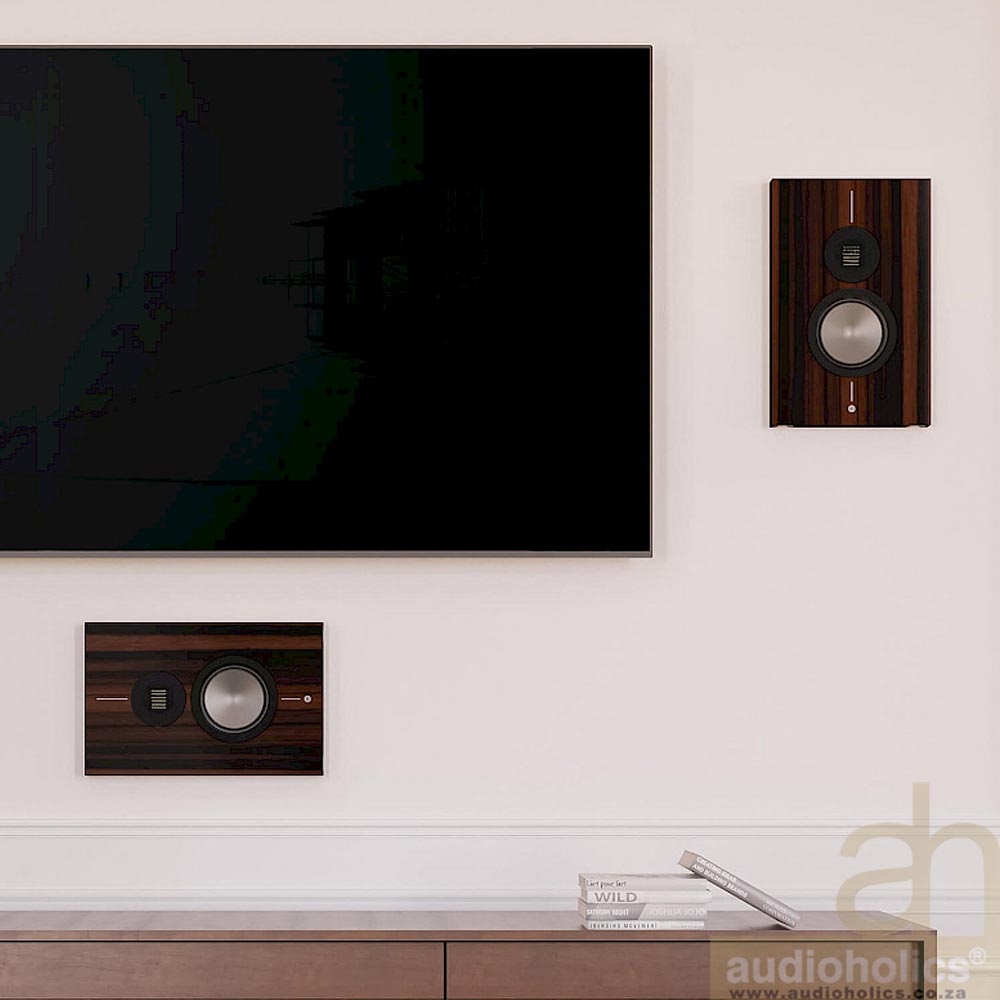

The Gold On-Wall 6G is a new, highly flexible addition to the Gold Series 6G range. Not only does its slim profile allow it to be a fantastic rear and side channel AV speaker, but it also means that it is perfect for wall-mounted front LCR (left-centre-right) applications – making it an ideal home cinema speaker. It features the latest MPD III high-frequency transducer and a powerful 6-inch mid-bass driver, benefiting from the latest HDT C-CAM cone technology and powerful motor systems. The Gold On-Wall 6G is a highly versatile, décor-friendly alternative, delivering detailed high-fidelity surround sound in abundance.
Impactful, dynamic and controlled bass.
With the new HDT, C-CAM cone, FEA-optimised surround and spider designs, plus increased voice coil length, the new Gold Series 6G’s 6- and 8-inch bass drivers exhibit greater linearity, reducing distortion for cleaner and punchier low end. Rigidly secured in place by a new cast aluminium, light-weight chassis design, it provides the optimum structure with maximum airflow around the drive unit.
Crossover Design – the purest of signals.
Gold Series 6G’s crossovers have been developed using high-quality capacitors and have undergone hundreds of hours of listening by Monitor Audio’s acoustics team. Many iterations have been repeatedly tested to ensure the smoothest, cleanest audio signal is delivered to each drive unit.
As beautifully finished as luxury furniture.
All Gold Series 6G’s cabinets are designed to form the most rigid structure possible, which allows the drivers to perform to their optimum capabilities. Coupled with cleverly calculated geometry, advanced bracing techniques and technically accurate crossovers, the cabinets are an important element of the total system under Monitor Audio’s Transparent Design Philosophy.
Machined & Die-Cast Aluminium Details
The exquisite quality of the Gold Series 6G is the result of paying close attention to even the smallest details. Carefully conceived and delivered with conviction throughout the design, these details combine to make the whole special. The machined aluminium, anodised driver trims are precise and clean; the delicate shadow gaps around them offer a subtle lift to provide an element of sophistication atop the beautifully veneered wooden or painted cabinets.
Key Features
- Two-way design
- 1 x MPD III high-frequency transducer
- 1 x 6-inch bass-mid driver, featuring HDT, C-CAM cone technology
- Machined aluminium drive unit trims
- New crossover design utilising carefully selected high-quality capacitors
- Ported cabinet design and through-bolt technology
- Features integrated wall mounting fixings and custom terminal panel for flush fitment on a wall
SPECIFICATION
System Format
2-way
Sensitivity (2.83v @ 1m, Free-Field)
N/A
Sensitivity (2.83v @ 1m, Installed)
88 dB
Recommended Amplifier Power (RMS into 4 Ohm, Music Signal)
130 – 300 W
Continuous Power Handling (CTA 426-B)
150 W
Nominal Impedance
4 Ohms
Minimum Impedance (20Hz to 20kHz)
5.3 Ohms @ 200 Hz
Drive Unit Complement
1 x 6” (152 mm) HDT C-CAM Bass-Mid Drivers
1 x MPD III Tweeter
Frequency Response Free-Field (-6dB)
N/A
Frequency Response, In-Room (-6dB)
38 Hz – 60 kHz
Maximum Peak SPL (AES75, Z-weighted)
115 dB
Bass Alignment
Ported
Port Tuning Frequency
44 Hz
Crossover Frequency
LF/HF: 2.5 kHz
External Dimensions with all accessories fitted (H x W x D)
465 x 300 x 124.2 mm (185/16 x 1113/16 x 47/8”)
Weight (each)
9 kg (19 lb 14 oz)
Sold As
Pair
