Description

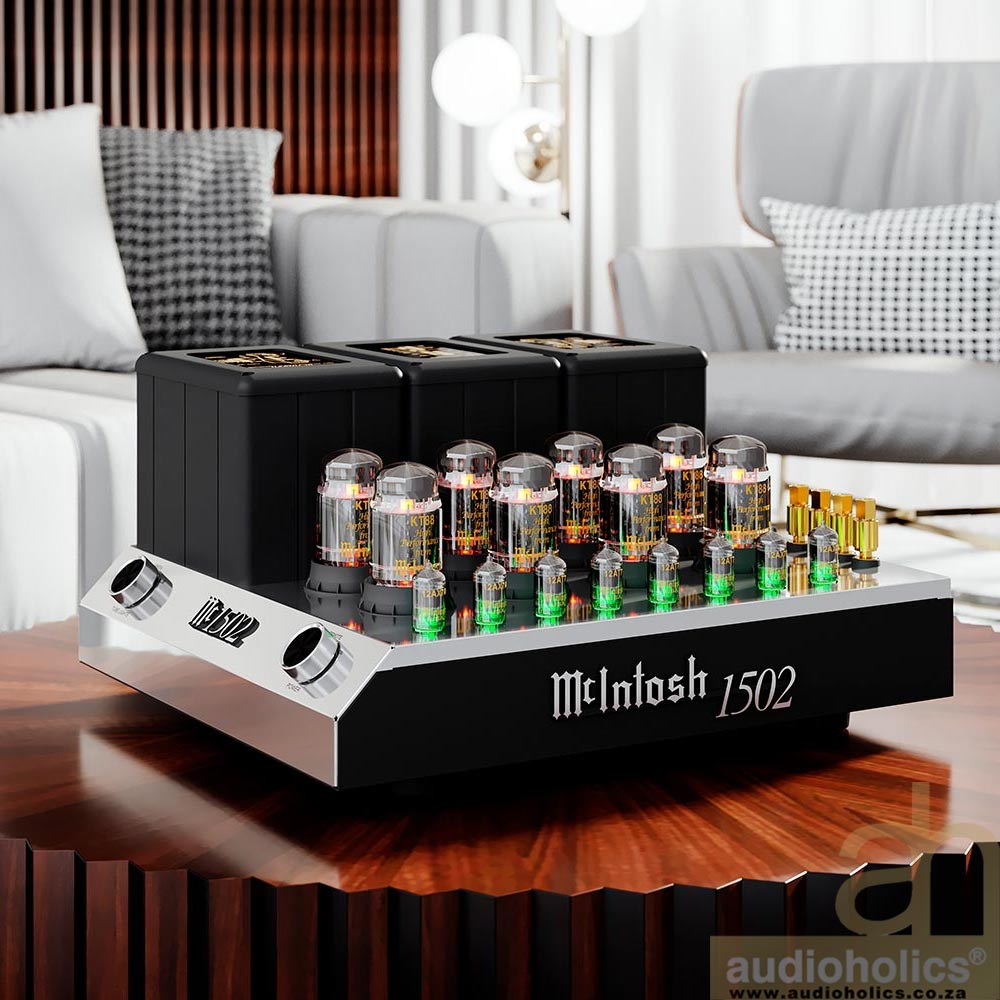

The MC1502 Vacuum Tube Amplifier is a stereo amplifier designed for home audio and home music systems that produces 150 Watts per channel.
The MC1502 is powered by eight KT88 output vacuum tubes, with four assigned to each stereo channel. It also has eight small signal tubes, consisting of four 12AX7A and four 12AT7 vacuum tubes; two of each of these vacuum tubes are dedicated to each audio channel. The 12AX7A vacuum tubes are for the Balanced and Input amps, while the 12AT7 tubes are for the Voltage and Driver amps. All the vacuum tubes are covered by a 12-gauge stainless steel wire cage with a black powder coated finish.
Specifications
-Power Output per Channel: 150W @ 2, 4 or 8 Ohms
-Number of Channels: 2
-Total Harmonic Distortion: 0.5% maximum harmonic distortion at any power level from 250 milliwatts to rated power, 20Hz to 20,000Hz <0.20% at 1W, 20Hz to 20,000Hz
-S/N below rated output: 112dB
-Dynamic Headroom: 1.2dB
-Damping Factor: >18
-Rated Power Band: 20Hz to 20kHz
-Frequency Response: +0, -0.25dB from 20Hz to 20,000Hz
: +0, -3dB from 10Hz to 70,000Hz
Control
-Remote Power Control: Yes
Weight and Dimensions
-Unit Dimensions (W x H x D): 46.4cm x 26cm x 53.3cm
-Unit Weight: 53.5 kg
-Shipping Weight: 61.2 kg
