Description

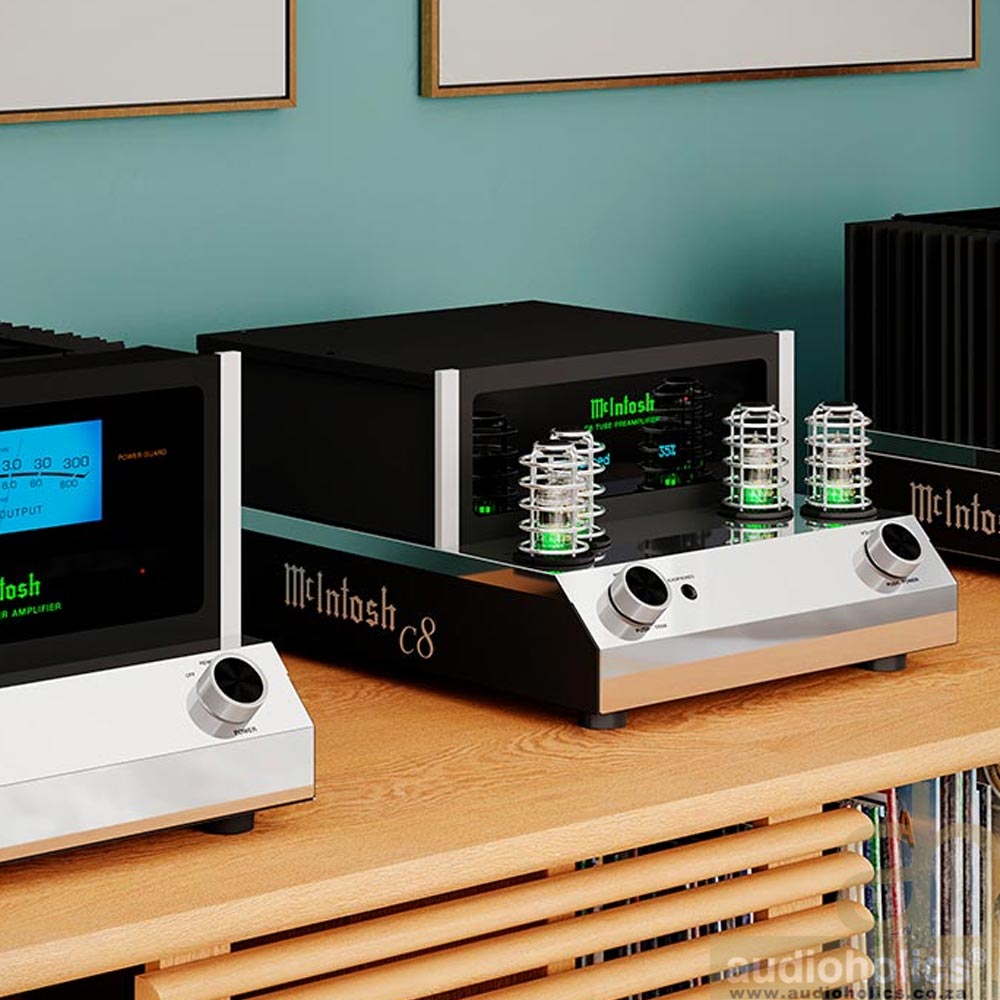

The C8 is powered by four 12AX7a vacuum tubes housed inside stylish protective cages. For inputs, the C8 comes with 1 balanced and 2 unbalanced analog inputs, plus 1 Moving Coil and 1 Moving Magnet phono inputs with adjustable loading to play cherished vinyl collections.
For outputs, it has 1 balanced and 2 unbalanced; 1 of the unbalanced outputs can be configured as a subwoofer output for use with a powered subwoofer to further enhance low frequencies.
For personal listening, the C8 comes with our High Drive headphone amplifier that has plenty of power and flexibility to drive a wide range of headphones. Power Control ports allow for easy system power up and shutdown by sending power on/off signals to other connected McIntosh components. The user selectable Auto Off feature will turn the C8 off after 30 minutes when there’s been no user input or if no audio signal has been detected. Home Theater Pass Through allows the C8 to be seamlessly integrated into your home theater system, and Data Ports can send remote control commands to connected source components.
Specifications
-Number of Channels: 2
-Total Harmonic Distortion: 0.08%
-Frequency Response: +0, -0.5dB from 20Hz to 20kHz
: +0, -3dB from 15Hz to 100kHz
-Maximum Volts Out (Balanced / Unbalanced): 16V RMS / 8V RMS
-Sensitivity High Level (Balanced / Unbalanced): 900mV / 450mV
-Sensitivity Phono (Moving Coil): 0.45mV
-Sensitivity Phono (Moving Magnet): 4.5mV
-Signal To Noise Ratio (High Level): 95dB
-Signal To Noise Ratio (Moving Coil): 75dB
-Signal To Noise Ratio (Moving Magnet): 80dB
-Voltage Gain (High Level): 15dB
-Voltage Gain (Moving Coil): 75dB
-Voltage Gain (Moving Magnet): 55dB
-Input Impedance (Balanced / Unbalanced): 44K ohm, 22K ohm
Control
-Tone Controls: Bass and Treble
-Tone Bypass and Input Assign: Yes
-RS232 Control Input: Yes
-Power Control Output: 1 Main, 2 Trigger
-Rear Panel Data Port: 2
-Rear Panel IR Sensor Input: Yes
Weight and Dimensions
-Unit Dimensions (W x H x D): 31.2cm x 19.4cm x 41.3cm
-Unit Weight: 8.2 kg
-Shipping Weight: 11.3 kg
