Description

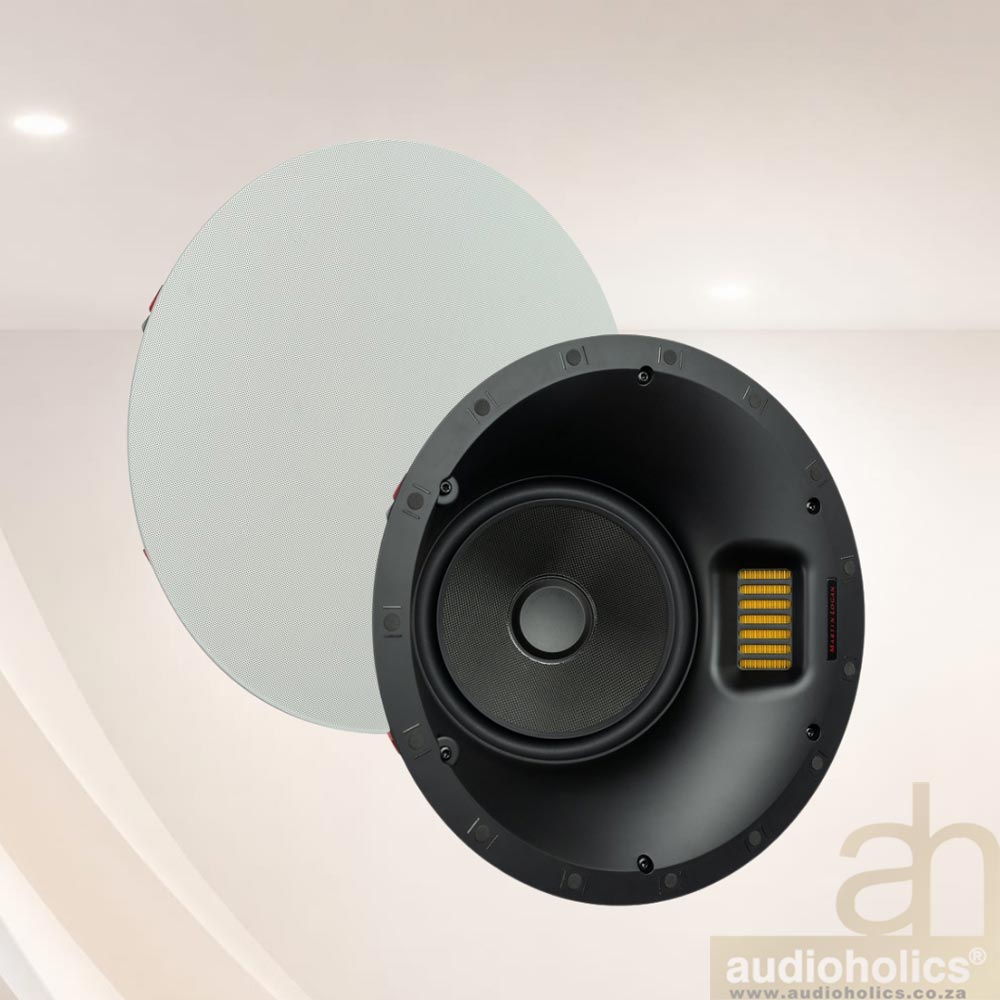

The “HT” version of the XTC8 features a fixed angle mounting of the tweeter and woofer in order to provide a massive improvement in performance for listeners who are farther away. This is the perfect choice for when a speaker must be mounted apart from where the listener will be standing, walking or sitting, like in a home theater. When being used as the front or center speaker in a home theater, the listener is typically around 10 feet or farther away, yet typical in-ceiling speakers point straight down placing the sweet spot directly in front of the screen. By angling the drivers toward the listener, a very noticeable increase in performance is realized. The same holds true in whole house music systems where speakers are often located farther away from where the listener spends most of their time. In situations like this, the angled “HT” models provide a very real, and very noticeable increase in performance.
The MartinLogan Motion XT CI series takes performance to the next level over Motion CI. The Folded Motion XT tweeter gives each model in the Motion XT series even more of the clarity, output and efficiency that the standard size FMT is famous for. With Motion XT, we wanted to increase all aspects of performance over the Motion series, so we didn’t just stop at the tweeter. All Motion XT models feature woven Kevlar woofers for increased rigidity and lightness as well as a special Nomex layer on the back side of the woofer material which increases clarity and realism by reducing resonance and ringing. In addition to the larger tweeter, and lighter, stronger woofers, MartinLogan’s design and engineering team has fitted the Motion XT series with a more substantial chassis to strengthen the speaker and provide a more accurate sound, similar to a better cabinet on a traditional speaker. The Nomex layer and the chassis are not something you can see after installation, but it matters to the performance of the speaker, so it matters to us. With Motion XT CI, the difference is in the details.
The Sound of Invisibility:
Folded Motion® Tweeters
MartinLogan’s signature Folded Motion Tweeter utilizes an extremely low-mass diaphragm that “squeezes” air, thus requiring significantly less excursion than the typical 1-inch dome tweeter. Its folded design allows for a much larger surface area (compared to that of a regular 1-inch dome tweeter), controlled dispersion characteristics, and vanishingly low distortion. It’s a miracle of audio engineering that delivers much of the high-frequency detail, speed and response of a large, dynamic electrostatic panel in a small space. Folded Motion XT tweeters advance thin-film transducer technology even further with a 40% larger radiating surface and 80×30-degree controlled dispersion. This upgrade increases audible bandwidth without sacrificing detail and reduces distortion to an incredibly low level while increasing efficiency and the tweeter’s already lightning-fast response time. The result is superior realism and alarming specificity that is aurally astounding, and only by MartinLogan.
This thin-film transducer design packs all the accuracy and delicacy of an electrostatic panel into a small space. Folding the dramatically lightweight film into an accordion-like structure increases the surface area, giving Folded Motion tweeters eight to ten times greater surface area than typical tweeters. This ideal combination of light and large produces superior accuracy, extended frequency bandwidth and higher output capability; all with a faster, more efficient transient response, and virtually zero distortion. In these characteristics, the Folded Motion Tweeter design can mimic the performance of a large electrostatic panel in the confines of a more traditional loudspeaker enclosure.
Specifications
Specifications are subject to change without notice
Frequency Response
51 – 25,000 Hz ±3dB
Tweeter Dispersion (horizontal x vertical)
30 x 80 degrees
Recommended Amplifier Power
Range 50–300 Watts
Sensitivity
91dB @2.83V/ 1 meter
Impedance
4 ohms. Compatible with 8 ohms
Crossover Frequency
2,000 Hz
High Frequency Driver
FMT Transducer 1.27” x 2.4” (3.22cm x 6.09cm) Opening 4.5” x 2.75” (11.43cm x 6.98cm) Diaphragm
Crossover Type
2 way
Driver Configuration
1 x 1.27” x 2.75” FMT, 1 x 8” Woofers
Woofer Specifications
One 8” (20.32 cm) cast aluminum basket, black Kevlar with Nomex backer cone, Open back chamber format. Concave dust cap.
Cabinet Material
Black w/ White Paintable Grill
Connector
Push style
Components
Custom air core coil inductors, polypropylene film capacitors in series and low DF electrolytic capacitors FMT thermal/current protection.
Max Power Handling
150 Watts
Weight
5.3 lbs. (2.4 kg) each
Dimensions (overall size)
12.68” x 7.15” (32.2 x 18.14cm)
Required Wall Opening (includes tolerance)
11.5” (29.1cm) diameter
Projection From Wall Surface
0.26” (0.65cm)
Depth Behind Wall Surface
7.03” (17.84cm)
