Description

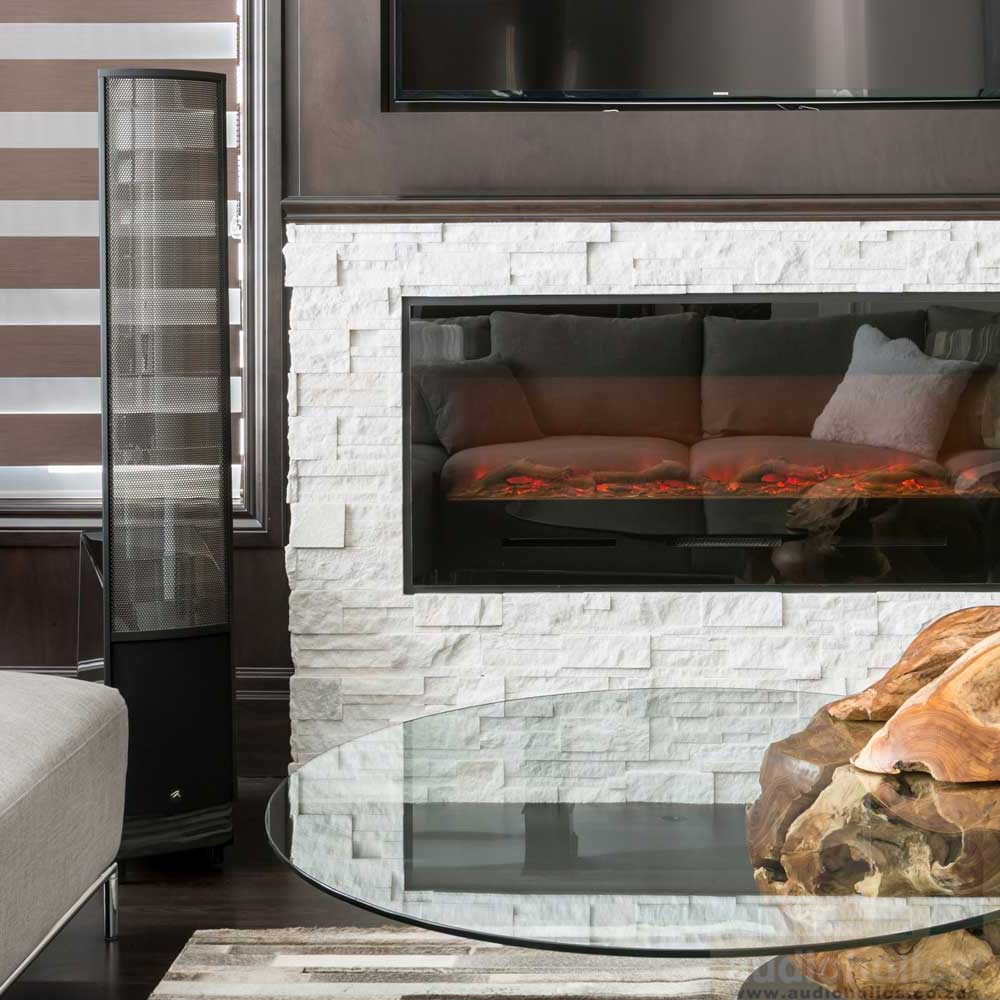

The MartinLogan ElectroMotion ESL X features a new larger XStat™ electrostatic transducer, with a radiating area over 50in2 larger than the EM-ESL model. Twin 8-inch high-excursion woofers are housed in a non-resonant asymmetrical bass reflex (ported) chamber, in a surprisingly compact enclosure. Woofers have custom engineered high-rigidity paper cones, with extended-throw driver assemblies.
The ElectroMotion ESL X (EM-ESL X) X features a larger electrostatic transducer and dual woofers, with increased power-handling capabilities. As the flagship model of the ElectroMotion Series, the X establishes a new benchmark for price versus performance.
The ElectroMotion ESL X features a new larger XStat™ electrostatic transducer, with a radiating area over 50in2 larger than the EM-ESL model. Twin 8-inch high-excursion woofers are housed in a non-resonant asymmetrical bass reflex (ported) chamber, in a surprisingly compact enclosure. Woofers have custom engineered high-rigidity paper cones, with extended-throw driver assemblies.
CLS™ XStat Transducer
One of MartinLogan’s original breakthroughs, CLS™ (Curvilinear Line Source) technology, has been an essential ingredient of every electrostatic loudspeaker we’ve produced—and the ElectroMotion ESL X is no exception. Proprietary manufacturing methods enable construction of electrostatic panels as cylindrical sections. Their gentle horizontal curvature solves the problem of obtaining good high-frequency dispersion from a large radiating surface without compromising overall sound quality or reliability.
Superb Bass Integration
To seamlessly blend audio output from the high- and mid-frequency electrostatic panel to the low-frequency dual woofer system, the ElectroMotion ESL X features a proprietary Vojtko™ topology filter utilizing custom air core coil and low DCR steel laminate inductors, polyester film capacitors in series, and low DF electrolytic capacitors in parallel.
Premium Connections, Solid Adjustable Footing
Custom 5-way bi-wire binding posts allow for secure wire connections. The EM-ESL X is supplied with sturdy, 3/8-16 ETC™ spikes, which can be used to fine tune vertical wave launch, enhance stability on thick carpets, and create tighter coupling between speaker and floor to provide a tighter and detailed bass performance. Each spike is conveniently covered by removable rubber end caps if you prefer not to use spikes.
ElectroMotion ESL X Specifications
Frequency Response
41–22,000 Hz ±3dB
Recommended Amplifier Power
20—400 watts per channel
Horizontal Dispersion
30°
Vertical Dispersion
40″ (101.6cm) line source
Sensitivity
91 dB/2.83 volts/meter
Impedance
6 Ohms, 1.6 @ 20kHz Compatible with 4, 6, or 8 Ohm rated amplifiers.
Crossover Frequency
400Hz
High Frequency Transducer
XStat™ CLS™ electrostaic transducer » Panel Dimensions: 40″ x 8.6″ (102 x 22cm) » Radiating Area: 344 in² (2,244 cm² )
Low Frequency Transducer
Two 8” (20.3 cm) high excursion, high-rigidity paper cones with extended throw driver assembly, non-resonance asymmetrical chamber format, bass reflex.
Components
Custom-wound audio transformer, air core coils, large steel laminate inductors, polyester capacitors, and low DF electrolytic capacitors
Inputs
Custom 5-way bi-wire tool-less binding posts
Weight
52 lbs. (23.6 kg)
Dimensions
59.2″ x 9.4″ x 20.7 ” (150.3cm x 23.8cm x 52.6cm)
