Description

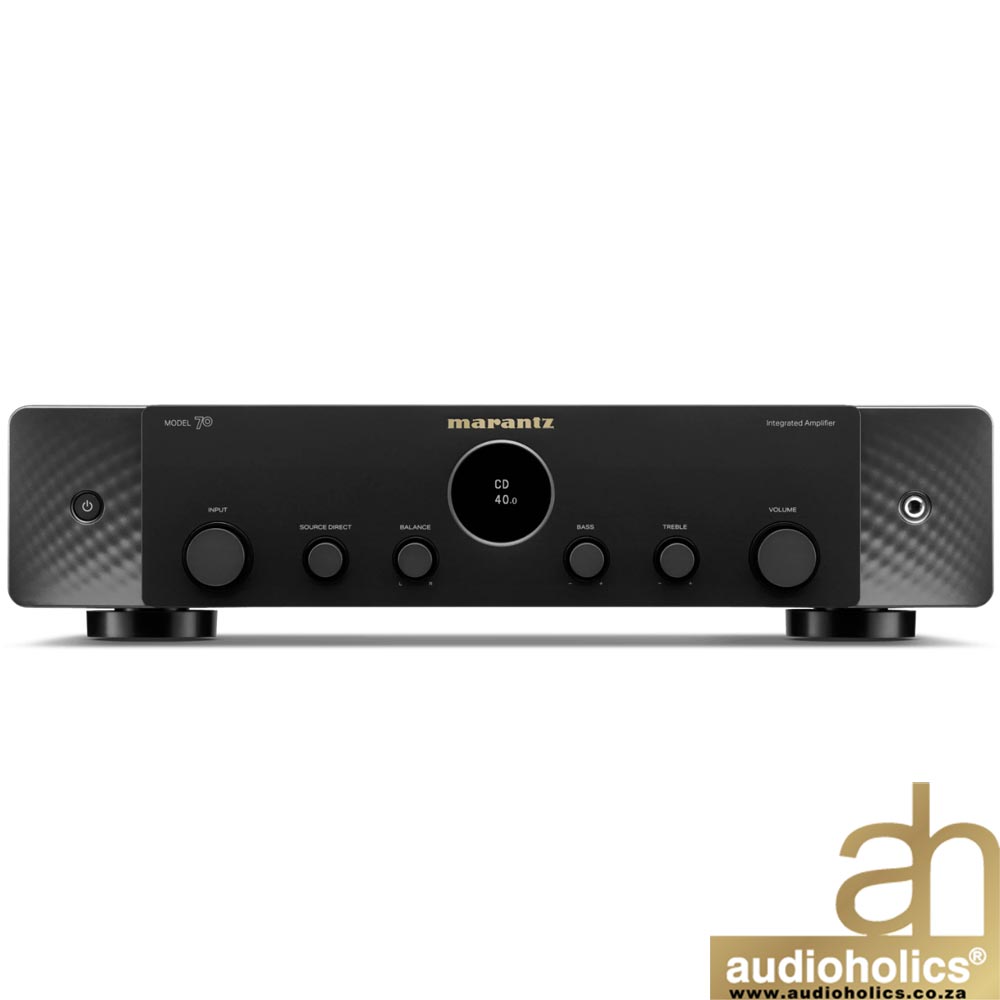

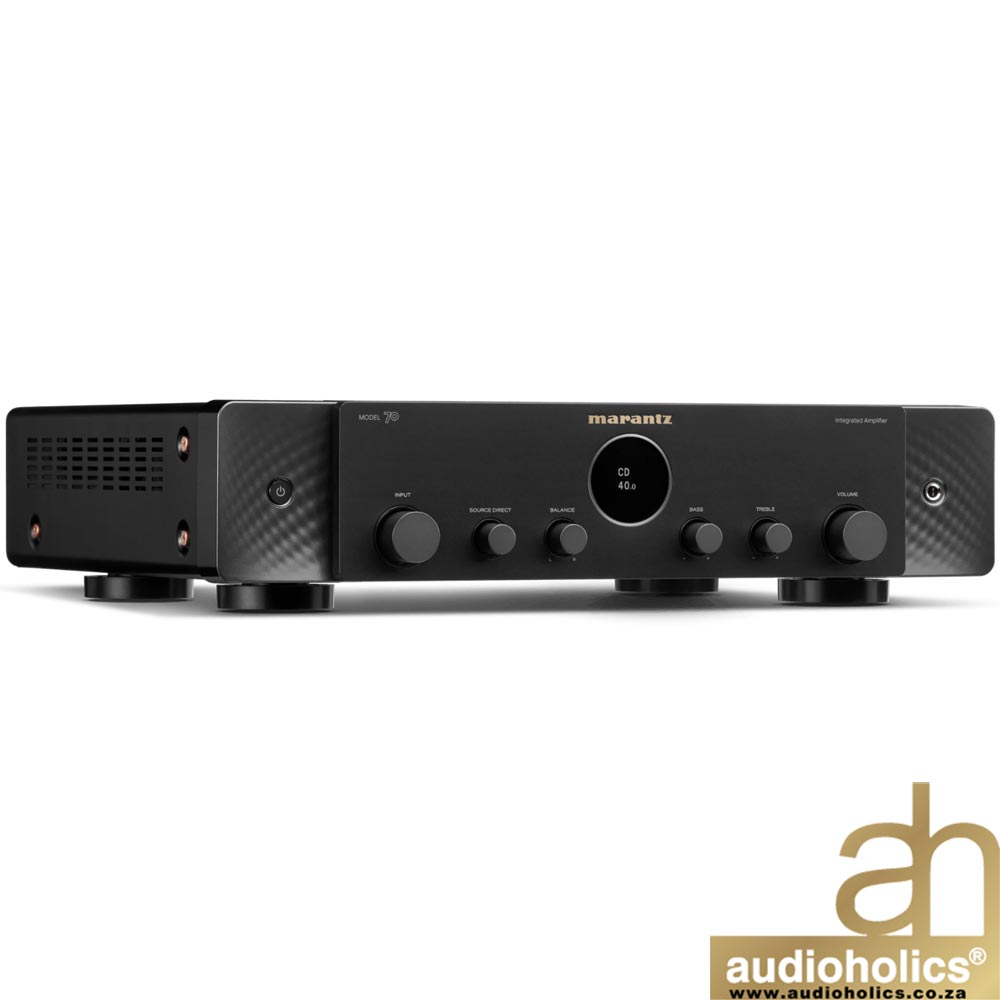

The Marantz MODEL 70 Stereo amplifier is crafted for musical experiences that move you; the ones you can’t forget.
Harnessing Marantz’s decades-long history of audio excellence, it brings signature hi-fi heritage and remarkable performance into the modern home. Thanks to its generous connectivity, including an MM phono stage, HDMI ARC, and more, all your entertainment is elevated. Your vinyl-listening rituals—warm and immersive; your CDs—dynamic and expressive; movie night—cinematic and lifelike. Whether that’s listening through your favorite pair of speakers or privately on headphones, you can always expect effortlessly musical performance.
KEY FEATURES:
- 2 x 50W high-current amplification
- HDMI ARC for TV audio
- Bluetooth with aptX Adaptive
- Built-in MM phono stage
- High-quality DAC for digital playback
- Timeless Marantz industrial design
Hi-Fi Heritage Meets Modern Music Rituals
Where remarkable performance and considered design meet modern features, MODEL 70 embraces today’s listeners and their music rituals.
Enhnaced Clarity & Detail
MODEL 70 features a refined amplifier design that enhances clarity, detail and overall transparency. By optimizing the signal path and reducing noise, it delivers a more open, precise sound—allowing you to hear more of every performance.
Genuine Power, Effortless Performance
Delivering genuine, high-current power, MODEL 70 is designed to perform with impeccable control and stability across a wide range of loudspeakers, ensuring confident clarity and composure even at higher volumes.
Modern Connectivity

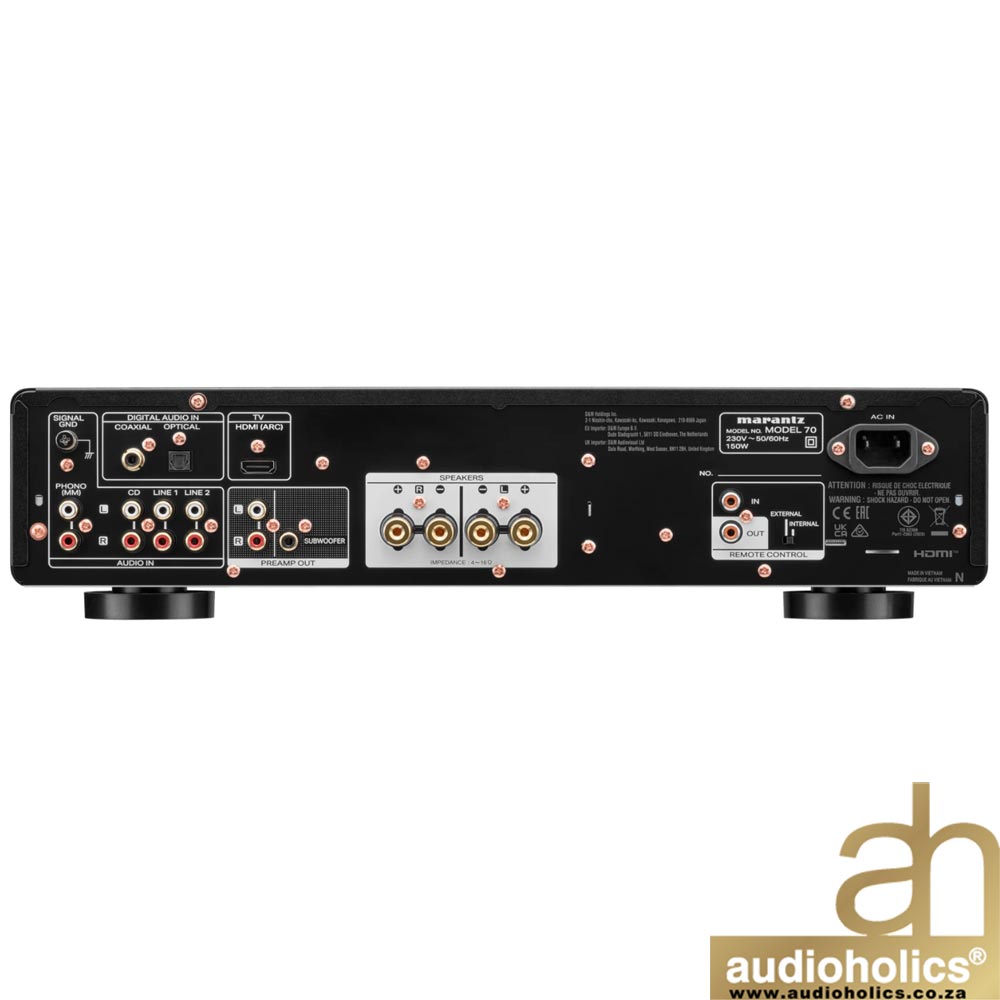

MODEL 70 is designed to connect effortlessly with both traditional and modern sources. From vinyl and CD to digital inputs and wireless streaming, its versatile connectivity ensures you can enjoy your entire music collection with ease—without compromising on sound quality.
MARANTZ MODEL LINE-UP:
SPECIFICATIONS
Channels
2
Current Feedback Topology
Yes
Phono EQ: Standard / Marantz Musical / Marantz Musical Premium
Yes / No / No
Digital in: USB-B / optical / coaxial / USB-A
0 / 1 / 1 / 0
Sample Rate digital In
ES Sabre DAC
Bluetooth / aptX / NFC
Yes / Yes (aptX,aptX HD, aptX Adaptive) / No
HDAM version
SA3
Power Transformer: Toroidal / El
Yes / No
High Grade Audio Components
Yes
Customized Components
Yes
Aluminum extrusion heat sink
Yes
Balance / Bass / Treble / Loudness
Yes / Yes / Yes / No
Audio Inputs
4
Digital in: USB-B / optical / coaxial / USB-A
0 / 1 / 1 / 0
Auto Power On by digital input signal
Yes
TV remote learning
No
Phono Input: MM / MC
Yes / No
Balanced In / Out
No/No
Pre-out / Main-in
Yes + subwoofer / No
HDMI: inputs / outputs
1 (ARC) / No
Gold Plated Cinch
Yes
Speaker A / B
No
Speaker Terminals
Metal (Gold) Screw
Number of terminals
2
D-Bus
Yes
Bluetooth / Bluetooth HP transmission
Yes / Yes
Bluetooth Headphone Volume Control
Yes
Headphone Out
Yes
Power Output (8 / 4 Ohm RMS)
50 W / 65 W
Frequency response
5 Hz – 50kHz
Total Harmonic Distortion
0.08 %
Damping Factor
100
Input Sensitivity:
MM3.1 mV / 47 kOhm
Input Sensitivity:
MCNo
Signal to Noise Ratio:
MM/MC83 dB / No
Input Sensitivity: High level
185 mV / 18 kOhm
Signal to Noise Ratio: High level
110dB (2V input)
Treble Control
±10 dB at 15kHz
Bass Control±10 dB at 50Hz
