Description
The Klipsch KA-1000-THX subwoofer amplifier is the powerful driving force behind the Klipsch THX® Ultra2 system. This model offers rock-solid dependability under the most demanding conditions and allows listeners to experience all the power, detail and emotion of their favorite music and movies.
FEATURES:
- Delivers 1000-watts into a 4 ohm load
- Can support two high performance subwoofers
- Finished in black with a machined aluminum front panel and knobs
Klipsch KA-1000-THX subwoofer amplifier

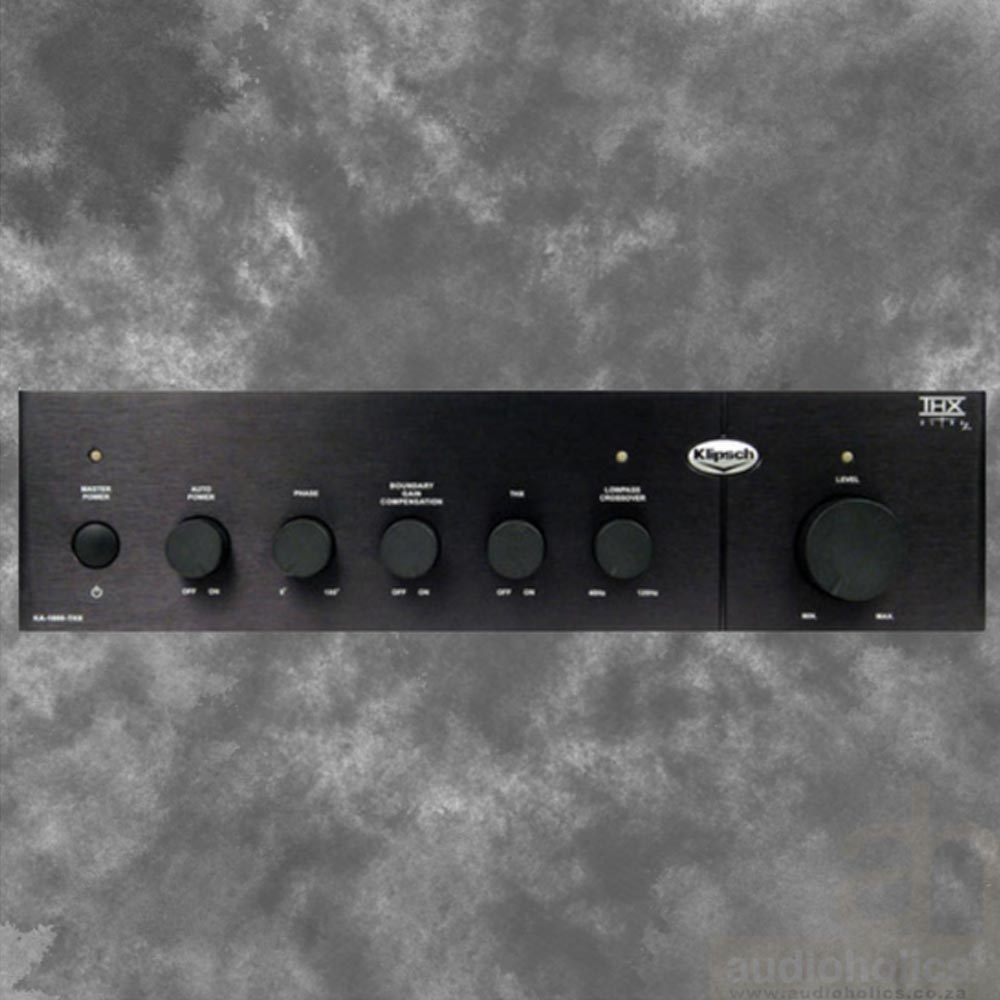

Designed exclusively for use with Klipsch KW-120-THX subwoofers, the KA-1000-THX is a THX Ultra2 certified monoblock power amplifier capable of 500 watts continuous output into 8 ohms (a single KW-120-THX subwoofer, for example) or 1,000 watts continuous into 4 ohms (two parallel connected KW-120-THXs). It incorporates front-panel controls for level, crossover frequency, phase, and room-gain compensation. The crossover can be bypassed to feed the amplifier directly from the subwoofer output of an A/V preamplifier, processor, or receiver. Line-level input and output connections are via gold-plated left/right RCA jacks.
SPECIFICATIONS
FREQUENCY RESPONSE
20Hz-1kHz +0/-3dB
ENCLOSURE TYPE
Use only with KW-120-THX subwoofer enclosures (either one or two)
AMPLIFIER
High-Efficiency Class D
AMPLIFIER POWER FTC
Rated Power:
500W into 8 ohms,
1000W into 4 ohms, 20Hz-1kHz @ <1.5% THD
Dynamic Power: 2050W into 8 ohms,
3025W into 4 ohms @ 5% THD
AUTO POWER ON
2 second ON delay, 15 minute OFF delay
LOW PASS CROSSOVER
Continuously variable from 40-120Hz, 24dB/octave slope above 120Hz (non-THX mode)
INPUTS
2 Gold-plated RCA phono jacks
OUTPUTS
2 Gold-plated RCA phono jacks (unfiltered) / 2 Speakon® NL2 jacks
PHASE
Continuously variable from 0 to 180 degrees
DIMENSIONS
4.75″ (12.1cm) H x 17.5″ (44.5cm) W x 12.25″ (31.1cm) D
WEIGHT
12.3kg
FINISH
Black anodized aluminum
VOLTAGE
110/120 VAC 60Hz
EXPORT VOLTAGE
230 VAC 50/60Hz
FEATURES THX
On/Off, Boundary Gain
Compensation On/Off
