Description

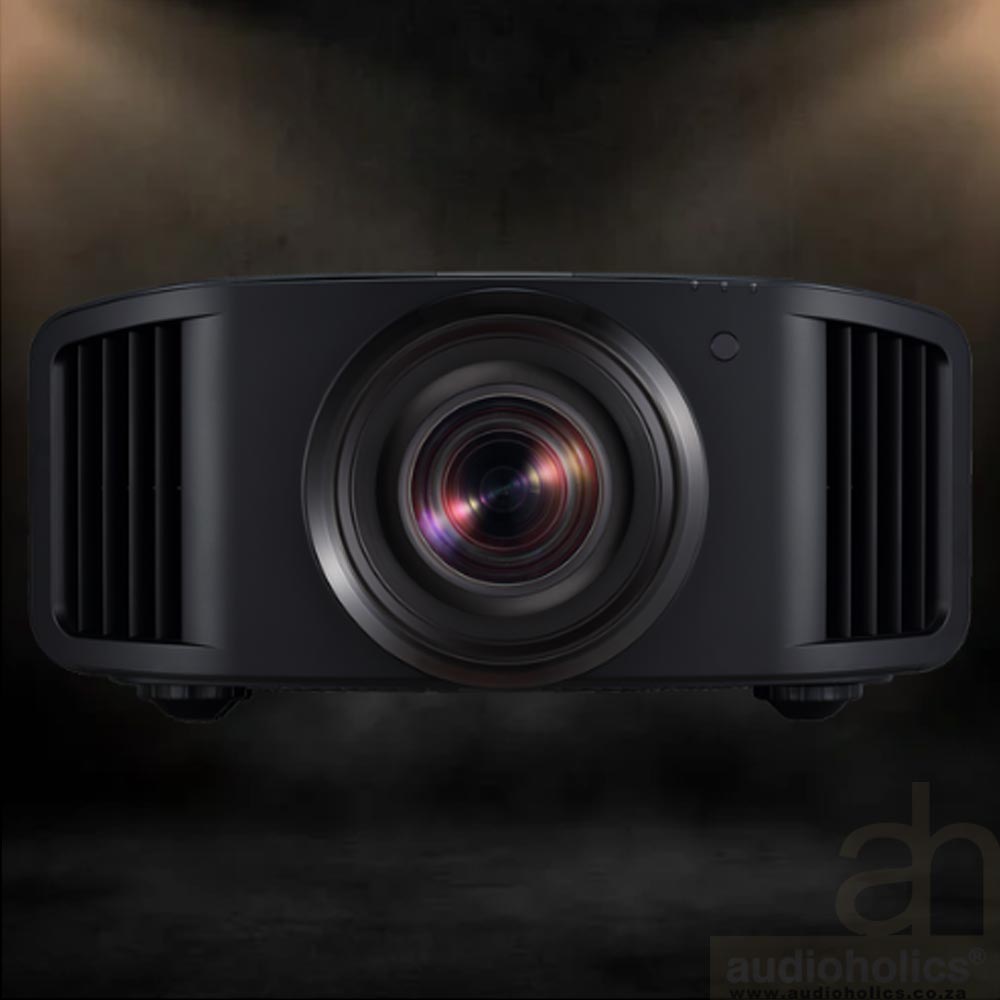

JVC DLA-NZ900 – 3rd Generation Native 4K D-ILA Device
D-ILA device is the heart of projectors that plays an important role in projecting beautiful images. Device improvement continues to date – the third generation 0.69-inch native 4K D-ILA device improved the alignment control of liquid crystals and enhanced the flatness of image pixels to offer 1.5-times* the native contrast ratio compared to the Gen2 device. Additionally, improvements in the device manufacturing process have resulted in improved screen uniformity and enhanced image quality.
Gen2 8K/e-shiftX Realizes
Remarkable 8K Resolution Display
JVC’s proprietary 8K/e-shiftX, which is a combination of “e-shift technology” – a high-resolution display technology that doubles the resolution by shifting a pixel by 0.5 pixels in four directions up, down, left, and right – and “0.69-inch native 4K D-ILA devices” has made significant progress as the second generation 8K/e-shiftX. The latest version features JVC’s newest 8K scaling engine that drastically improves the projector’s sharpness and detail across a wide range of content, including 8K (8192 x 4320 pixels) sources.
Gen2 Frame Adapt HDR Function for
Brighter and More Colorful HDR Images
The Frame Adapt HDR function, which uses a proprietary algorithm to instantaneously analyze the maximum brightness of any HDR10 content per scene or per frame and perform real-time tone mapping to optimal dynamic range for video projection, has evolved into the second generation (Gen2). The algorithm for tone mapping has been fully reexamined to achieve HDR images with higher definition. Furthermore, the proprietary algorithm for tone curve selection has also been improved to reproduce HDR images that are brighter, more colorful and have a wider dynamic range.
Exceptional Brightness and Longevity with
BLU-Escent Laser
Another essential aspect of projectors lies in their light source. The DLA-NZ series adopts JVC’s original laser light source “BLU-Escent Laser” to achieve exceptional peak brightness of 3,300 lumens on the DLA-NZ900 and 2,700 lumens on the DLA-NZ800, both with longevity of 20,000 hours. When compared to the first-generation laser projector*, the projectors’ brightness per effective wattage has improved 1.9-fold, which, as a result, also contributes to saving power through improved power efficiency.
Unparalleled Black Level and High Luminance Deliver Images Brimming with Reality
The new D-ILA projector boasts the industry’s highest native contrast with the Gen3 0.69-inch 4K D-ILA device and wire-grid optical engine, however in combination with the dynamic laser light control, which analyzes the incoming video signal to automatically control the amount of outgoing laser light, a dynamic contrast level of ∞:1 (infinity to 1) can be achieved in scenes with pitch blackness by completely shutting off the light source. As a result, images brimming with reality that are closer to human perception can be produced. Likewise, the new algorithm enables laser control with greater precision to meet the user’s preferences.
HDR Drastically Improves Expressive Power of Images
When it comes to reproducing the rich video information of HDR content, including the extended brightness range, BT.2020 wide color gamut and 10-bit gradation, rely on the new D-ILA projectors. Both models support all HDR formats including HDR10 for Blu-ray and streaming, HLG for broadcasting, and the HDR10+ with dynamic metadata compatibility. The projectors’ improvements for higher brightness and contrast have helped to achieve a wider dynamic range, allowing users to enjoy an immersive experience with HDR images full of reality.
8K60p Input for Ultra-high Res 8K Content.
4K120p Input for Games and More.
This D-ILA models support a variety of inputs including full 48Gbps 8K60p. By adopting LSIs developed with the latest technology, it is now possible to process four times the amount of information from input to D-ILA device instantly and correctly display 8K signals. As a result, users can enjoy stable high-quality 8K images at all times. Also, using 4K120p input with the Low Latency Mode further improves response to the player’s rapid operations, making it effective for displaying high frame-rate gaming content on large screens.
All-glass Lens System Made to Clearly Depict Everything
What 8K Image Has to Offer
The high-end DLA-NZ900 is equipped with an 18-element, 16-group all-glass lens featuring a full aluminium lens barrel. To project highresolution 8K images to every corner of the screen, the projector incorporates five ED lenses calibrated for differences in the R/G/B refractive index to reduce chromatic aberration and colour fringing when lens shift kicks in to deliver precise reproduction of 4K- or 8K-resolution projection.
Features:
- 2nd Generation 8K/e-shiftX technology reproduces 8K image quality
- New BLU-Escent Laser Light Source
- 3rd Generation 0.69-inch 4K D-ILA (4096 x 2160) device x 3.
- High brightness of 3,300 lm provides vibrant and dynamic images
- Native Contrast Ratio of 150,000:1 translates to a spectacular Dynamic Contrast Ratio of ∞ :1
- 2x HDMI (48 Gbps, HDCP 2.3) inputs, supporting 8K60P and 4K120P input signals
- HDR10+ contains the metadata of the producer’s intentions for each scene, and with such data, the projector is able to automatically reproduce images as the creator intended.
- Auto Tone Mapping function automatically adjusts settings for optimum HDR10 image quality.
- 18-element, 16-group all-glass 100mm diameter high-quality lens.
- Wide Color Gamut above exceeds DCI/P3 spec creating saturated, beautiful images that come to life.
- Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles.
SPECIFICATIONS
Device
D-ILA Technology
Yes
Chip Type
3rd Generation 0.69-inch 4K D-ILA device
Native Resolution
4096 x 2160
Number Of Chips
3
8K/e-shiftX
Yes
Display Resolution
8192 x 4320
Light Source
Laser [1]
Yes
Type
New BLU-Escent Laser Diode
Life Time (Standard Mode)
20000 hours
Brightness
3300 lm
Dynamic Contrast
∞ : 1
Native Contrast
150000 : 1
Dynamic Light Power control
Yes
Modes
Mode 1 (gentle), Mode 2 (strong), Off
Manual Aperture
Yes
Range
-15 (stops down) to 0 (opens up)
DCI-P3 Color Gamut
Yes
100% REC 709
Yes
Color Bit Depth
12 bit
ISFccc Certification [2] Yes
HDR
HDR10
Yes
HDR10+ [3] Yes
Frame Adapt HDR [4] Yes
Theater Optimizer [5] Yes
HLG
Yes
Auto Tone Mapping
Yes
Mastering Info Display
Yes
Info data
MaxCLL and MaxFALL mastering data
HDR Picture Modes
BT.709 / BT.2020 / DCI / HDR
Lens
Zoom
2 x
Throw Ratio
1.35-2.75:1
Diameter
100 mm
Material
All-glass
Build
18-element, 16-group in full aluminium lens barrel.
Lens Shift
Yes
Range Horizontal
± 43 %
Range Vertical
± 100 %
Motorized Zoom
Yes
Motorized Shift
Yes
Motorized Focus
Yes
Projection Display size (diagonal)
60 – 300 inch
Memory Function
Yes
Number of user presets
10
Lens Cover
Yes
HDMI
HDMI [6]
Yes
Number of Inputs
2
Data Rate
48 Gbps
HDCP Version
2.3
8K60P signal input
Yes
4K120p signal input
Yes
4K60P signal input
Yes
Video Signal range
480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 120/ 100/ 60/ 50/ 30/ 25/ 24, 3840 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 4096 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 7680 x 4320p 60/ 50/ 30/25 /24
PC Signal range
VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / WSXGA+ / UXGA / WUXGA / WQHD (60) / WQHD (120)
Input Level Adjustment
Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
Color Space Range
Auto/ YCbCr444 / YCbCr422 / RGB
EDID Modes
A and B (older hardware may need to use B settings)
Connections
Trigger out
Yes
Connector
Mini-Jack (3,5mm)
Power
DC 12V / 100mA
3D Synchro
Yes
Connector
Mini DIN 3-pin
LAN
Yes
Connector
RJ45
RS-232
Yes
Connector
D-sub 9-pin
Service
Yes
Connector
USB (Type A) for firmware update or backup
3D
3D Capability
Yes
3D Versions
Frame Packing, Side-by-Side, Top & Bottom
Frame Packing Resolutions
720p 60/50, 1080p 24
Side-by-Side Resolutions
720p 60/50, 1080p 60/50/24, 1080i 60/50
Top & Bottom Resolution
720p 60/50, 1080p/24
3D Emitter (Optional)
Yes, PK-EM2
3D Glasses (Optional)
Yes, PK-AG3
Picture Settings
Picture Modes
Natural, Cinema, Film, Vivid, HDR10+, Frame Adapt HDR, HDR10, HLG, Pan_PQ, 6 User modes
Color Temperatures
Xenon 1, Xenon 2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
Gamma Processing Depth
12 bit
Gamma Adjust
HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Film 1, Film 2, Pana_PQ, 3 Custom modes
Color Management
6-Axis adjustable CMS
MPC
Yes
Filmmaker Mode [7] Yes
Low Latency Mode
Yes
Clear Motion Drive
Yes
Motion Enhance
Yes
Auto Calibration
Yes
Optional Probe needed
Yes
Installation Mode
Yes
Number of modes
8
Included settings
Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect
Anamorphic Modes
4 Modes (A, B, C, D)
Control4 SDDP
Yes
