Description

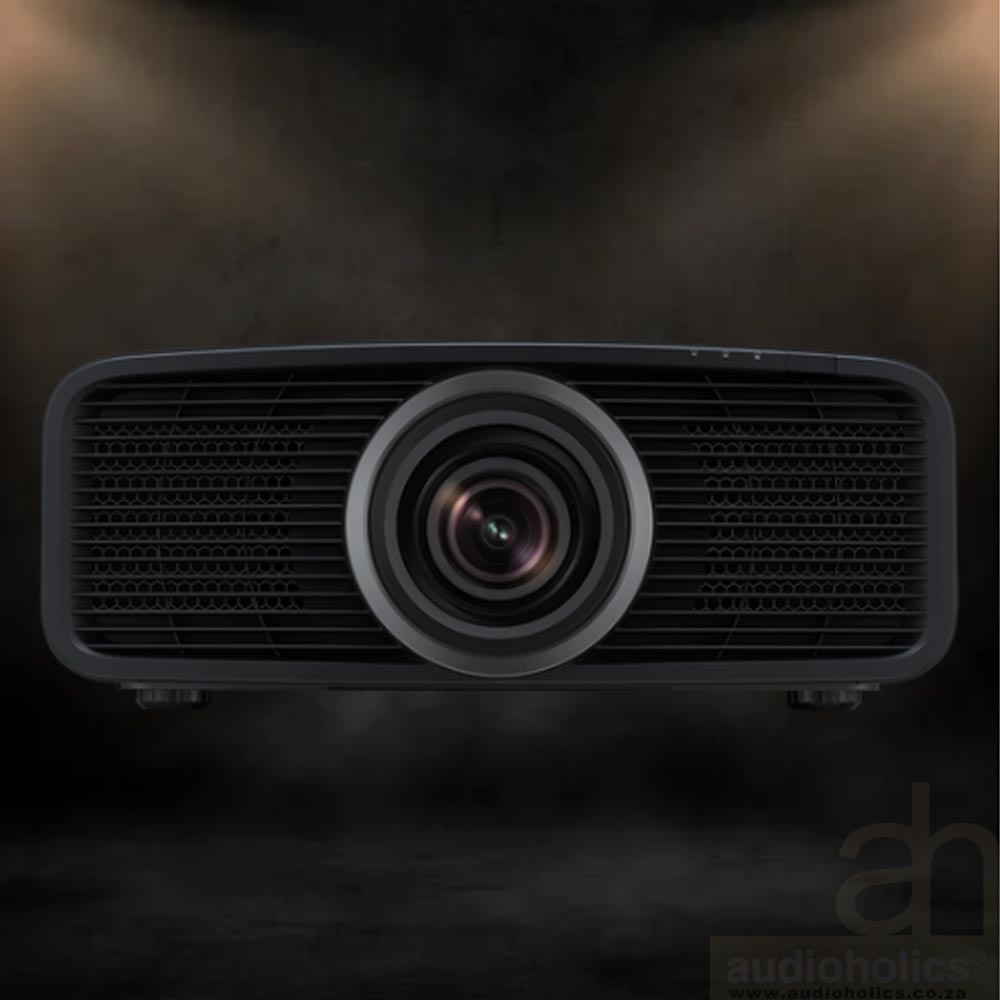

JVC DLA-NZ700 – Native 4K Home Theatre Projector

All Components Redesigned
The optical unit, lens, and circuit board have all been redesigned to achieve the world’s smallest native 4K projector.

Gen2 Frame Adapt HDR Function for
Brighter and More Colorful HDR Images
The Frame Adapt HDR function, which uses a proprietary algorithm to instantaneously analyze the maximum brightness of any HDR10 content per scene or per frame and perform real-time tone mapping to optimal dynamic range for video projection, has evolved into the second generation (Gen2). The algorithm for tone mapping has been fully reexamined to achieve HDR images with higher definition. Furthermore, the proprietary algorithm for tone curve selection has also been improved to reproduce HDR images that are brighter, more colorful and have a wider dynamic range.

Deeper Blacks for Richer Gradation
The new Deep Black Tone Control has been added to Frame Adapt HDR, with a new algorithm to further subdue tones in dark areas to achieve more realistic darkness. This function maximizes the dynamic range of the new-generation 4K D-ILA devices and delivers images with more contrast than ever before. Scenes with light and dark shades such as nightscapes can be projected with greater realism.

High Brightness and Long life
JVC’s proprietary laser light source technology, Blu-Escent, uses a blue laser diode as the light source. The DLA-NZ700 achieves a high brightness of 2,300lm and the DLA-NZ500 2,000lm. Both models have a laser life expectancy of approximately 20,000 hours.

Superior Resolution
Newly designed large aperture (80mm, 11groups, 15lenses) 4K compatible lens delivers full native 4K D-ILA resolution to every corner of the screen.

Features:

• Completely redesigned interior and exterior results in world’s smallest native 4K projector
• 3rd Generation 0.69-inch 4K D-ILA (4096 x 2160) device x 3
• New BLU-Escent Laser Light Source
• High brightness of 2,300 lm provides vibrant and dynamic images
• New 80mm, 15-element, 11-group high-quality lens
• Native Contrast Ratio of 80.000:1 translates to a spectacular Dynamic Contrast Ratio of ∞ :1
• 2x HDMI (32 Gbps, HDCP 2.3) inputs, supporting 4K60P input signals
• HDR10+ contains the metadata of the producer’s intentions for each scene, and with such data, the projector is able to automatically reproduce images as the creator intended.
• Frame Adapt HDR dynamically tone maps any HDR10 content frame-by-frame or scene-by-scene and automatically performs adjustment to achieve optimal images. It includes improved gamma processing accuracy from 12- to 18-bit equivalent to reproduce smoother and finer gradation.
• Auto Tone Mapping function automatically adjusts settings for optimum HDR10 image quality.
• FILMMAKER MODE™ that faithfully recreates the creator’s intentions.
• For easy reproduction, the projector switches automatically to HDR picture mode when HDR10 signals are received.
• ISF C3 (Certified Calibration Controls) mode to reproduce excellent picture quality optimized for specific environments
• Color Management System with 6-axis Matrix
• Eight settings of Installation Mode include Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen
• Adjust, Installation Style, Keystone, and Aspect; stored installation modes for various environments can be called up.
• Wide Colour Gamut above exceeds DCI/P3 spec creating saturated, beautiful images that come to life.
• Low Latency Mode suppresses display delay for faster response when receiving signals from PC and game consoles
• Auto-Calibration Function using an optical sensor.
• New picture mode ”Vivid” for SDR Images
• DML (Display Mastering Luminance) adjusts/sets the dynamic range for better HDR experience

SPECIFICATIONS

Device
D-ILA Technology
Yes

Chip Type
3rd Generation 0.69-inch 4K D-ILA device

Native Resolution
4096 x 2160

Number Of Chips
3

Display Resolution
4096 x 2160

Light Source
Laser [1] Yes

Type
BLU-Escent Laser Diode

Life Time (Standard Mode)
20000 hours

Brightness
2300 lm

Dynamic Contrast
∞ : 1

Native Contrast
80000 : 1

Dynamic Light Power control
Yes

Modes
Low,High,Balance,Off

Manual Aperture
Yes

Range
-15 (stops down) to 0 (opens up)

DCI-P3 Color Gamut
Yes

100% REC 709
Yes

Color Bit Depth
12 bit

ISFccc Certification [2] Yes

HDR
HDR10
Yes

HDR10+ [3] Yes

Frame Adapt HDR [4] Yes

HLG
Yes

Auto Tone Mapping
Yes

Mastering Info Display
Yes

Info data
MaxCLL, MaxFALL , DML

HDR Picture Modes
BT.709 / BT.2020 / DCI / HDR

Deep Black Tone Control
Yes

Lens
Zoom
1.6 x

Throw Ratio
1.34 – 2.14 (16:9)
1.26 – 2.01 (17.9)

Diameter
80 mm

Material
Build
15-element, 11-group.

Lens Shift
Yes

Range Horizontal
± 28 %

Range Vertical
± 70 %

Motorized Zoom
Yes

Motorized Shift
Yes

Motorized Focus
Yes

Projection Display size (diagonal)
60 – 200 inch

Memory Function
Yes

Number of user presets
5

Lens Cover
Yes

HDMI
HDMI [6] Yes

Number of Inputs
2

Data Rate
32 Gbps

HDCP Version
2.3

4K60P signal input
Yes

Video Signal range
480p, 576p, 720p 60/50, 1080p 60/ 50/ 30/ 25/ 24, 3840 x 2160p 60/ 50/ 30/ 25/ 24, 4096 x 2160p 60/ 50/ 30/ 25/ 24
