Description
Self Developed EOS Audio Engine
The DMP-A8 utilizes the self developed EOS (EverSolo Original sampling-rate audio engine), supporting output at all audio sampling rate. In other words, any audio playback can entirely bypass the Android SRC limitation, supporting the Direct audio passthrough of third-party apps (Such as Apple Music hi-res Direct output).
Versatile Master Recording Playback and Decoding
The DMP-A8 supports nearly all ultra sampling master recording formats available in the market, including CD-quality formats (FLAC, WAV,APE).
Aluminium Chassis Unique Appearance
The DMP-A8 is made from aviation aluminium and features a CNC machined body for a solid construction. The brushed panel and frosted anodized body are a great combination of classic and modern elements to suit the preferences of experts.

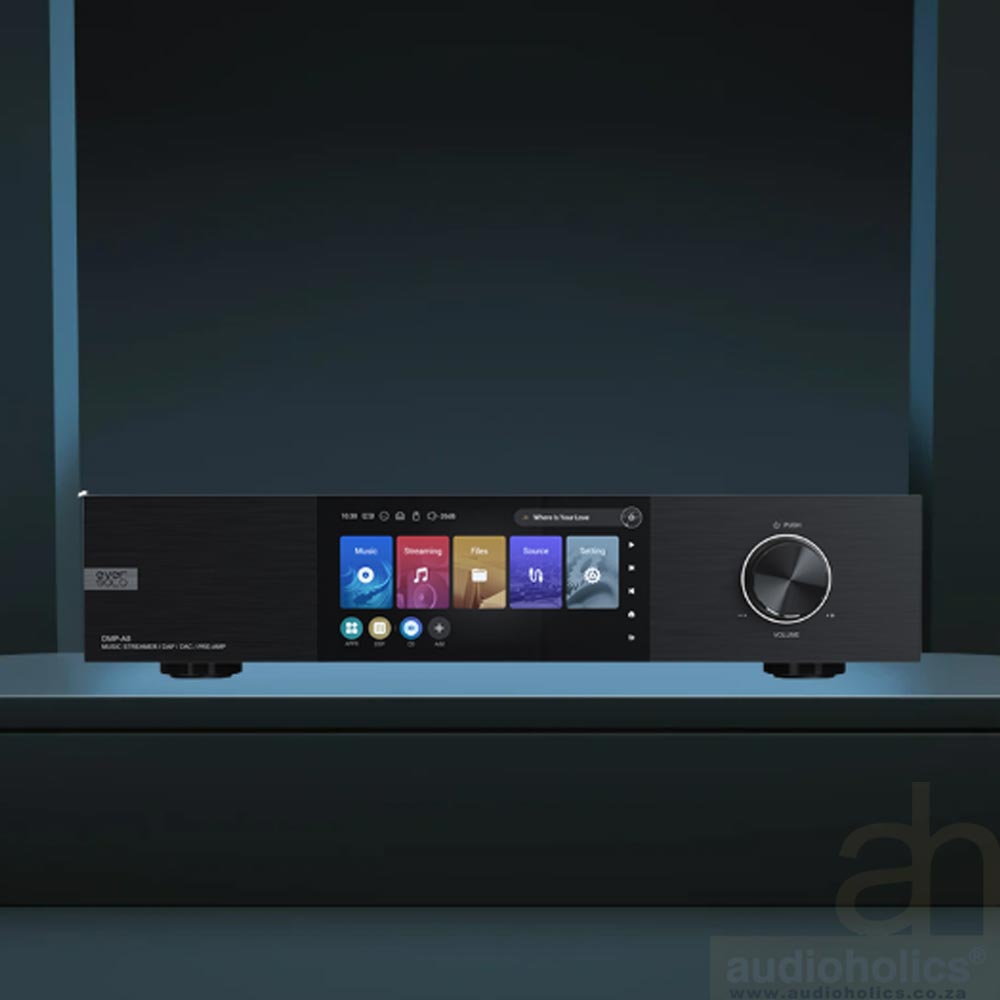

Large LCD Touchscreen with Exclusive User Interface
Equipped with a large 6″ LCD high-definition touchscreen, the DMP-A8 features a professionally tailored streamer system, simple but exquisite user interface, as well as on-screen intuitive touch controls for system settings, local music library and third-party apps. It provides a seamless interactive experience.
Dual Power Supply Designs
in order to eliminate inference and noise between the system circuit and the audio circuit, and to enhance the sound purity, seperate designs are employed for the power supply of the system and the audio cicruit. The characteristics of analog audio circuits. The high-quality switching power supply is tailored for the system circuit. It significantly reduces ripple and magnetic leakage interference, providing strong support for high-quality audio processing.
3rd Generation XMOS 316 Audio Interface
with 3rd generation XMOS 316 audio processor, DMP-A8 has faster speed and higher USB bandwidth, ensuring the lossless transmission of high-definition audio data. USB ports support up to DSD512 Native and PCM768@32bit. The optical and coaxial ports support DSD64(DoP), PCM192@32Bit.
Dual High-precision Clocks
There are 2 ultra low phase noise femtosecond high-precision clocks for audio decoding circuit , which correspond to the decoding of 44.1KHz multiplied sampling rates respectively.
Fully Balanced Analog Preamplifier Circuit
The DMP-A8 is equipped with a high-performance fully balanced preamplifier function, supporting XLR/R-CA analog inputs. It also features a +10dB analog gain and, when combined with the R2R analog volume control network, ensures ultra low noise and distortion for the output.
Music Services at your Fingertips
The DMP-A8 incorporates popular music services such as Tidal, Qobuz, HIRESAUDIO, Deezer, Radio Paradise, Amazon music etc.
SPECIFICATIONS
Model
EVERSOLO DMP-A8
Display
6″ LCD touchscreen
Internal Memory
4GDDR4 +64GeMMC
DAC
AK4191EQ+AK4499EX
Audio Processor
XMOS XU316
Op-amp Chip
OPA1612
Power Supply
High-quality, low-noise linear + digital dual power supply
SSD
Support M.2 NVME 3.0 2280 protocol, up to 4TB (SSD isn’t included).
USB-A Port
USB3.0*2
Ethernet
RJ-45(10/100/1000Mbps)
WiFi
WiFi 2.4G+5G dual band
Playback and DAC Decoding
Support up to stereo DSD512, PCM 768KHz 32Bit
Music Service
Tidal, Qobuz, Highresaudio, Amazon Music, Deezer, Radio Paradise, WebDAV, UPnP
Streaming
Air Play, DLNA, Tidal Connect etc.
Bluetooth Audio Input
BLuetooth BT5.0, support SBC/AAC/aptX/aptX LL/aptX HD/LDAC
USB-B Audio Input
Supports Windows (10, 11), Android, IOS. Support up to stereo DSD512, PCM 768KHz 32Bit.
Optical/Coaxial Audio Input
Support up to stereo PCM 192KHz 24Bit, Dop64
HDMI ARC
Support up to stereo PCM 192KHz 24Bit
Analog preamp audio input
XLR(Balanced)*1+RCA(Unbalanced), Maximum Gain +10dB
USB Audio Output
Support up to stereo DSD512，PCM 768KHz 32Bit
IIS Output
Support up to stereo DSD512, PCM 768KHz 32Bit
Optical/Coaxial Audio Output
Support up to stereo PCM 192KHz 24Bit, Dop64
Analog Audio Output
Preamp Audio Output:XLR(Balanced)+RCA(UnBalanced)
XLR Output Audio Characteristics
Output level: 4.2V
Frequency response: 20Hz~20KHz(±0. 25dB)
Dynamic range: > 128dB
SNR: >128dB
THD+N: <0.00009%(-120dB) @No-wt
Crosstalk: >-121dB
RCA Output Audio Characteristics
Output level: 2.1V
Frequency response: 20Hz~20KHz (±0. 25dB)
Dynamic range: > 125dB
SNR: >125dB
THD+N: <0.00010%(-119dB)@A-WT
Crosstalk: >-121dB
Control Method
Mobile App，Touch screen control，IR+Bluetooth remote control
PSU
AC 110~240V 50/60Hz
Rated Power
16W
Dimensions
W 388mm*L 248mm* H 90mm
Packing List
Power cable*1, Remote Control*1，Screwdriver*1，user manual*1
