Dual CS-718Q – Reference Manual Hi-Fi Turntable

R49,490.00

ENQUIRE

Product Enquiry

(Required)
Which country do you reside in?(Required)
Audioholics may contact me with regard to the above & future marketing(Required)
SKU: CS-718Q Categories: , Tag:

Description

Dual CS-718Q – Reference manual with precision engineering and leading autolift comfort!

More info button with gold chevron arrows

High-end turntable with a spinning vinyl record on a glossy black platform against a dark background, showcasing the tonearm and orange cartridge.

The 7 Series shaped an entire era of high-quality hi-fi culture. Its reliability, durability and outstanding sound fidelity made it an icon in turntable history. We continue this tradition today with the CS 718Q.

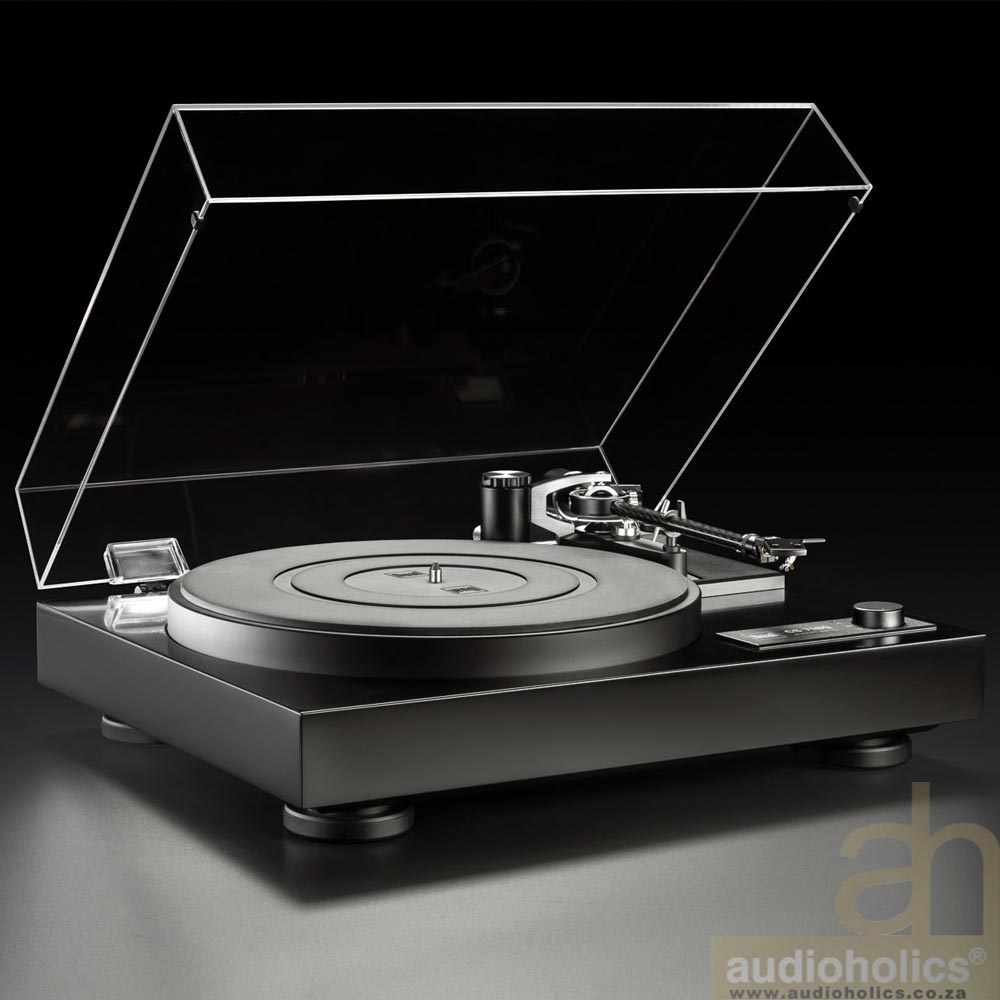

High-end turntable with a clear acrylic dust cover on a dark gradient backdrop, showcasing the platter and tonearm.



  1. Even in the latest generation, uncompromising quality and technical sophistication take centre stage:Precise direct drive with ironless coils
  2. Massless tracking force for maximum tracking reliability
  3. Height & Azimuth-adjustable tonearm for optimum adjustment
  4. A piece of history – developed to lead into the future.



Turntable with a white vinyl on a glossy black base, orange cartridge, and tonearm ready to play.

Plinth:



  • MDF Construction
  • Satin black finish or real walnut wood veneer
  • Optimized, switchable auto-stop function
  • Height-adjustable feet with resonance absorbers

Platter:

  • Aluminum
  • Full-surface rubber coating on the underside
  • Precision die-cast construction with 1.9 kg
  • Heavy Dual mat for resonance damping

Tonearm:

  • Aluminium-Carbon Sandwich Tube
  • Precise height adjustment via rotary mechanism
  • Finely adjustable tracking force via spiral spring
  • Automatic tonearm lift
  • Precision-machined headshell with azimuth clamp

Drive:

  • Direct-drive
  • Quartz-stabilized speed control for 33 / 45 / 78 rpm
  • Wow and flutter values of 0.05% DIN
  • No vibration due to ironless air-core coils
  • Double shielding against magnetic interference fields



Close-up of a turntable's tonearm over a spinning vinyl record, highlighting the metallic components and cartridge. Ideal for explaining record playback equipment are the tonearm and platter details.

#image_title

SPECIFICATIONS



Drive:
Drive:
Direct drive

Speed settings:
33/45/78

Wow & Flutter:
< ±0.05 % (DIN WTD)

Platter:
Material:
Aluminium die-cast / Rubber

Mat:
Rubber 4 mm

Bearing:
Hardened steel spindle Brass bushing

Diameter:
305 mm

Weight (incl. Mat):
2200 g

Tonearm:
Auto-Start/-Stop-Function:
Auto-Stop / Auto Tonarmlift

Bearing:
Twin gimbal mounting, Height adjustable

Headshell:
Removable / Azimuth-adjustable

Tonearm tube:
Carbon–Aluminium Sandwich

Effective length:
221,5 mm

Height Adjustable
+ 5 mm / – 2 mm

Offset Angle:
25,6°

Overhang:
19 mm

Tracking force:
dynamically balanced with damping

Stylus Pressure Range:
0 g to 3 g

Cartridge Weight Range:
3 g to 13 g

Plinth:
Material:
MDF

Surface finish:
Satin Black

Veneer: Walnut
Feet:
Ø 68 mm / Elastomer Dampers
Height adjustable

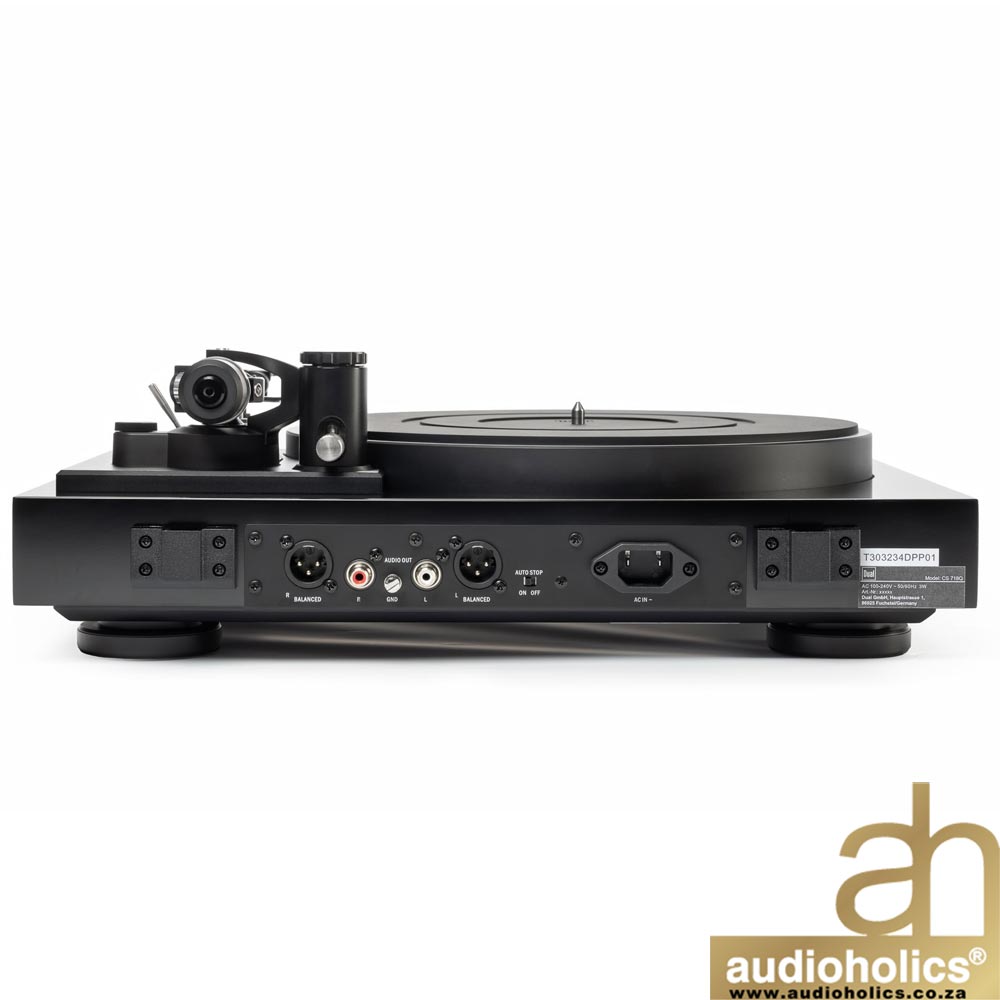

Connection:
RCA socket,
XLR socket

Connection to Phono Input:
✓

Connection to Line Input:
✕

Digital Output:
✕

Dimension, closed dustcover:
435 x 367 x 155 mm

Dimension, open dustcover:
D: 415 mm / H: 405 mm

Weight:
10 kg
