Description

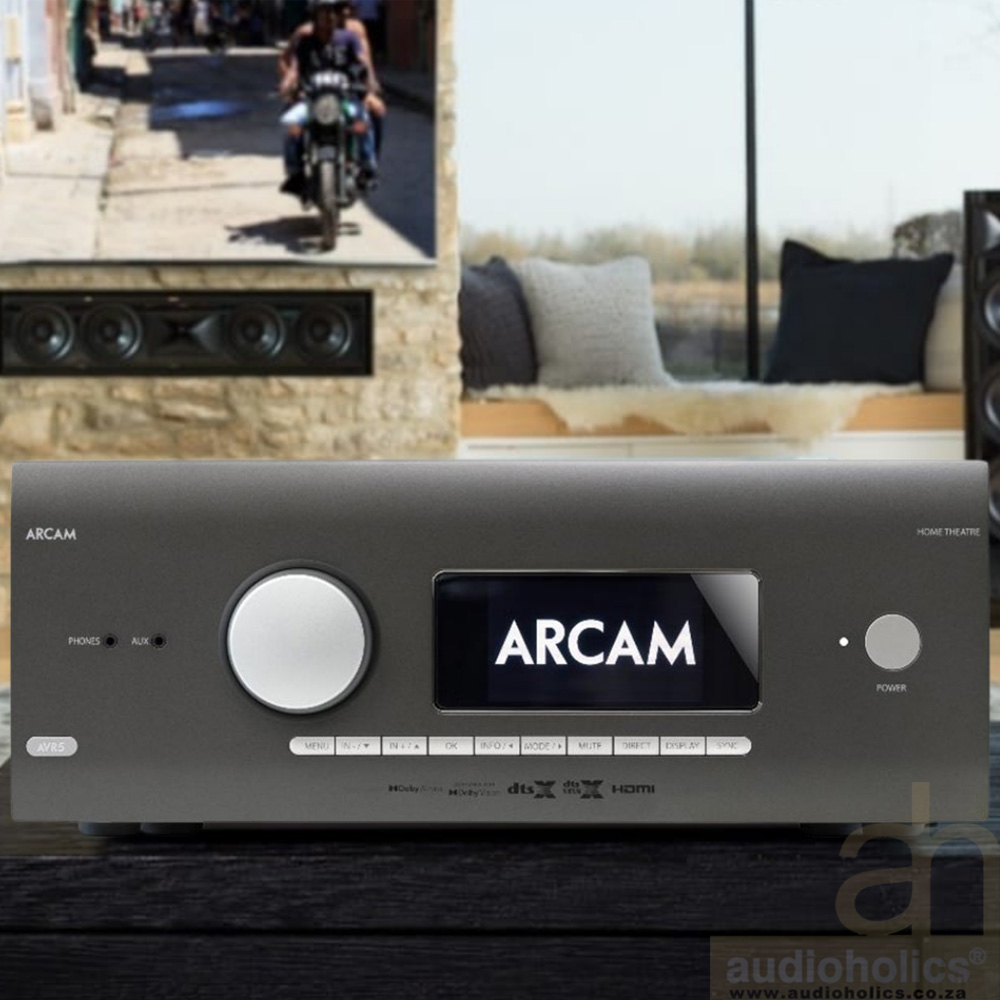

The Arcam AVR5 is a high-performance audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. Native 12-channel decoding of immersive audio from Dolby Atmos and DTS:X, the AVR5 can deliver incredible theatre experiences.
The performance and musicality from the Arcam AVR5 can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, Bluetooth with aptX®HD, Spotify Connect, and UPnP with the MusicLife app.
Dirac Live® Bass Control aggregates measurement and location data from a subwoofer and the main speakers to determine how a system’s bass is best reproduced throughout the room.
Features:
- Dolby Atmos & DTS:X 7.1.4 decoding
- 4K (UHD) HDMI2.0b with HDCP2.2
- 7 HDMI inputs, 2 HDMI outputs, eARC compatible
- Ready for Dirac Live® room correction*
- ESS 9026PRO audiophile DACs
- Class AB power amplification
- Uses frame-type transformer
- Wifi / Ethernet, RS232 and IR control
- Apple Airplay2 and Google Cast for streaming audio
- Bluetooth aptX®HD
- Free MusicLife iOS and Android UPnP streaming app
- Supports MQA
- Roon Ready
Specifications
Continuous power output, per channel, 8Ω/4Ω
2 channels driven, 20Hz – 20kHz, <0.02% THD 80W/100W
2 channels driven, 1kHz, 0.2% THD 85W/120W
7 channels driven, 1kHz, 0.2% THD 60W/85W
Residual noise & hum (A-wtd)
<0.15mV
Stereo Line Inputs
Maximum input 4.5V rms
Nominal sensitivity
1V, 2V, 4V (user adjustable)
Input impedance
47kΩ
Signal/noise ratio
(A-wtd ref 100W) normal/stereo direct 100dB/110dB
Frequency response
20Hz—20kHz ± 0.2dB
Preamplifier Outputs
Nominal output level
1V RMS (max. 5V RMS)
Output impedance
560Ω
THD+N
(20Hz—20kHz) –100dB
Headphone Output
Maximum output level into 32Ω
5Vrms
Output impedance
<100Ω
General
Mains voltage 110–120V or 220–240V, 50–60Hz
Power consumption (maximum) 1.5kW (Thermal dissipation approx. 5200 BTU/hour)
Power consumption (idle, typical) 90W (Thermal dissipation approx. 340 BTU/hour)
Power consumption (standby) <0.5W
Dimensions W x D (including speaker terminals) x H (including feet)
433 x 425 x 171mm
Weight (net) 16.5kg
Weight (packed) 19.8kg
